Square D

Square D VHU364DSGL 200A 3-Pole Non-Fusible Safety Switch – Surface Mount – 600V AC/DC

In stock
SKU: VHU364DSGL GTIN/UPC: 606485894969
$4,287.54
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

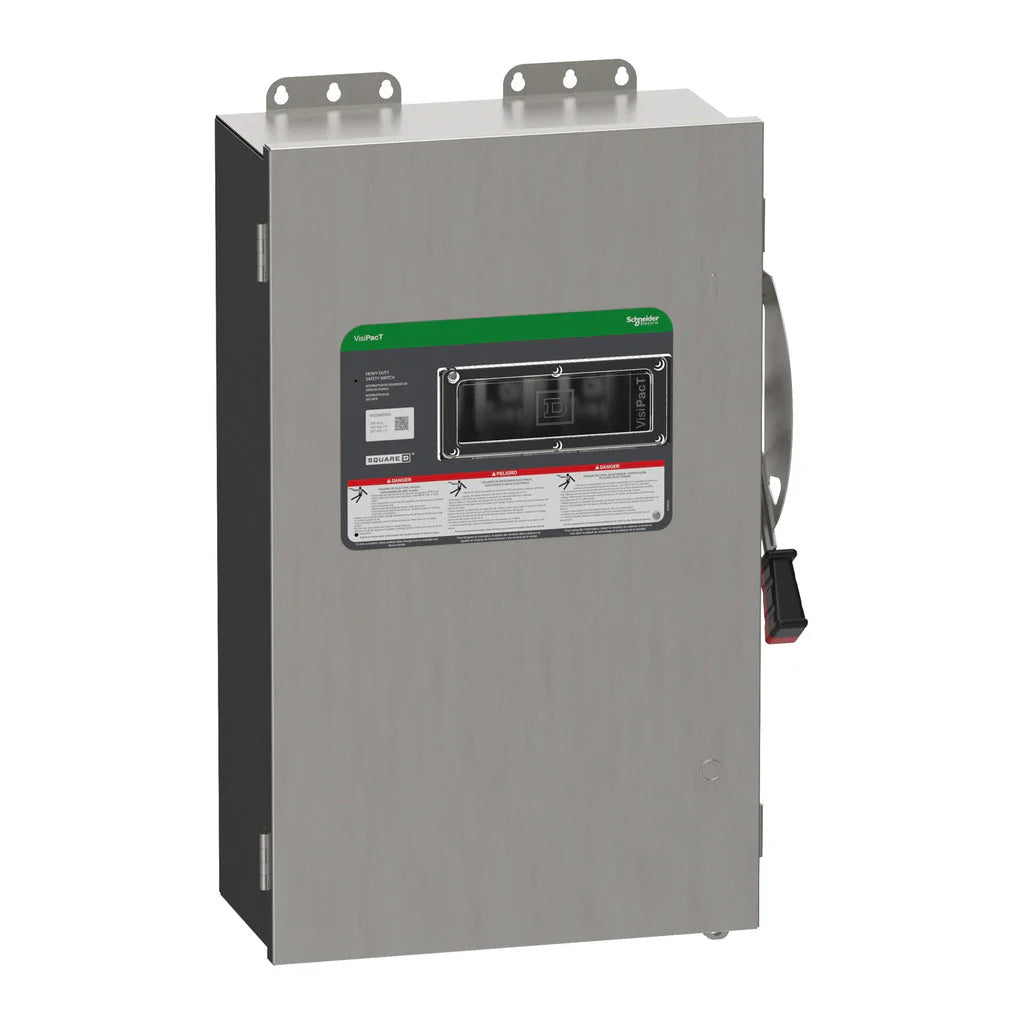

The Square D VHU364DSGL Heavy Duty Safety Switch is engineered for demanding commercial and industrial applications where reliability, durability, and safety are critical. Manufactured by Schneider Electric, this 200 Amp, 3-Pole, non-fusible disconnect switch features a Type 4X stainless steel enclosure with a factory-installed viewing window for enhanced protection in harsh environments. Designed with a quick-make, quick-break operating mechanism, dual cover interlock, and color-coded indicator handle, it delivers dependable performance and a service life that exceeds standard NEMA durability requirements.

Voltage and Rating

  • Current Rating: 200 Amps
  • Voltage Rating: 600 Volts AC / 600 Volts DC

Key Specifications

  • Manufacturer: Schneider Electric / Square D
  • Model Number: VHU364DSGL
  • Product Type: Heavy Duty Safety Switch
  • Category: Switches
  • Disconnect Type: Non-Fusible Disconnect
  • Number of Poles: 3-Pole
  • Wiring Configuration: 3-Wire
  • Mounting Type: Surface Mount
  • Enclosure Type: Type 4X Stainless Steel
  • Viewing Window: Factory Installed
  • Neutral: Field-Installable Solid Neutral Kit Available
  • Ground Lugs: Factory Installed Equipment Ground Lugs

Technical Specifications

  • Wire Range: AWG 6–250 kcmil Copper or Aluminum
  • Operating Mechanism: Quick-Make, Quick-Break
  • Cover Interlock: Dual Cover Interlock
  • Handle Type: Color-Coded Indicator Handle
  • Short-Circuit Rating: Based on Square D Circuit Breakers or Mag-Gard Motor Circuit Protectors Used as Upstream Protection

Dimensions and Weight

  • Weight: 55.005 lbs

Certifications and Standards

  • CSA Approved
  • UL 98 Tested
  • NEMA KS1 Tested
  • UL File Numbers: E2875 and E154828

Product Features and Benefits

  • Heavy-duty construction designed for harsh commercial and industrial environments.
  • Durability rated at approximately three times greater than standard NEMA requirements.
  • Non-fusible design provides reliable circuit isolation and disconnect functionality.
  • Type 4X stainless steel enclosure offers superior corrosion resistance and environmental protection.
  • Factory-installed viewing window allows visual inspection without opening the enclosure.
  • Quick-make, quick-break mechanism ensures fast and reliable switching operation.
  • Dual cover interlock enhances operator safety during maintenance procedures.
  • Supports copper and aluminum conductors from AWG 6 to 250 kcmil.
  • Factory-installed equipment ground lugs simplify installation.
  • Optional field-installable solid neutral kit provides additional application flexibility.

Product Data

  • Part Number: VHU364DSGL
  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Poles: 3
  • Amperage: 200A
  • Voltage: 600V AC/DC
  • Category: Safety Switches
  • Weight: 55.005 lbs

Applications

  • Industrial Facilities
  • Commercial Buildings
  • Manufacturing Plants
  • Utility and Infrastructure Installations
  • Service Entrance Applications
  • Outdoor and Corrosive Environments Requiring Type 4X Protection
  • Type Switches
  • Vendor Square D
  • Brand Square D
