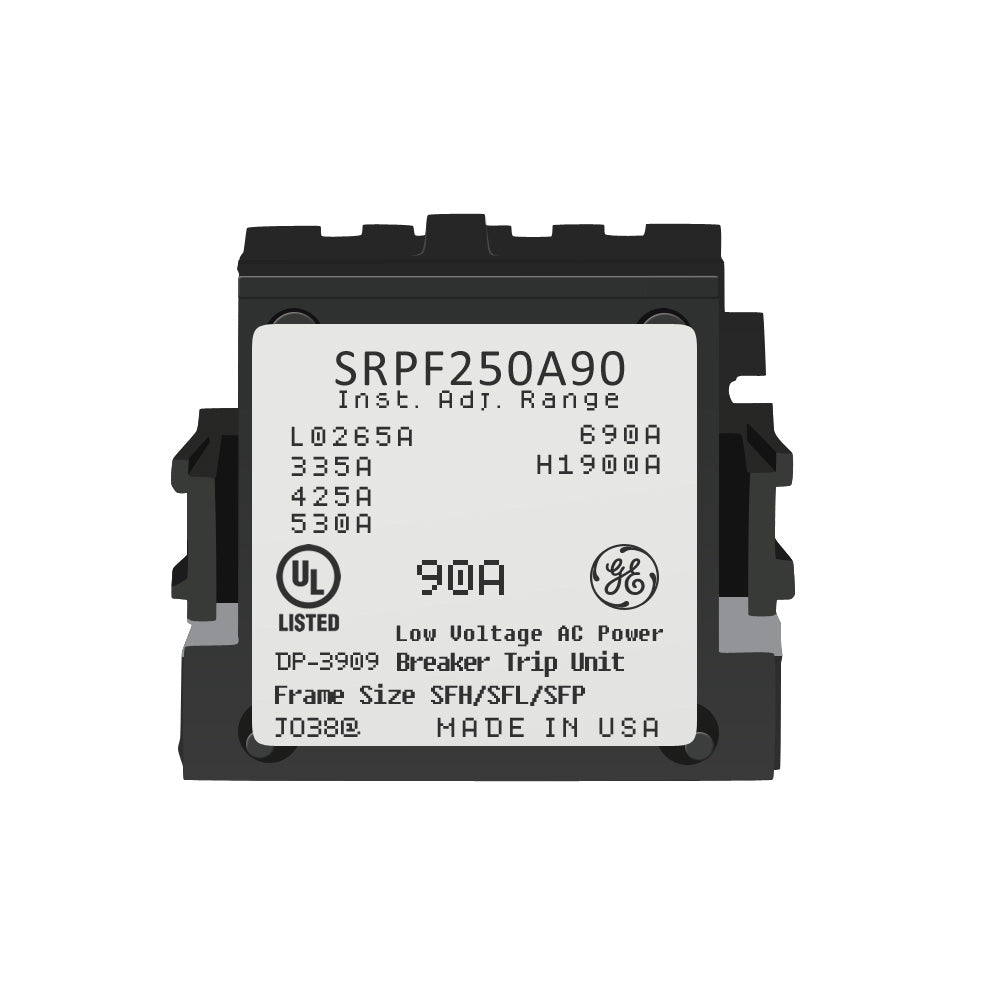

GE SRPF250A90 Rating Plug – 90A – 3-Pole – 600V AC – Adjustable Instantaneous Trip – Spectra Series

The GE SRPF250A90 is a 90A, 3-pole molded case circuit breaker rating plug designed for compatible GE circuit breaker applications. It is rated for 600V AC and features an adjustable instantaneous trip current range of 665–2250A.

The rating plug is suitable for motor circuit protection applications where the specified instantaneous trip adjustment is required. The source information identifies the product as a 90A rating plug while the descriptive text also references a 225A rating; the 90A catalog designation is used here based on the provided part number.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Rating Plug
• Catalog No.: SRPF250A90
• Current Rating: 90A
• Number of Poles: 3-Pole
• Voltage Rating: 600V AC
• Trip Function: Adjustable Instantaneous Trip
• Instantaneous Trip Current Range: 665–2250A
• Application: Motor Circuit Protection
• Configuration: Molded Case Circuit Breaker Rating Plug

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SRPF250A90
• Catalog Number: SRPF250A90
• Model: SRPF250A90
• Brand: General Electric
• Manufacturer: GE
• Product Type: Rating Plug
• Product Configuration: 3-Pole, 90A
• Voltage Rating: 600V AC
• UPC:783164213171

Compatibility:

Designed for use with compatible GE molded case circuit breaker systems supporting the SRPF Series rating plug. The SRPF250A90 provides a 90A rating with an adjustable instantaneous trip range of 665–2250A for compatible motor circuit protection applications.
