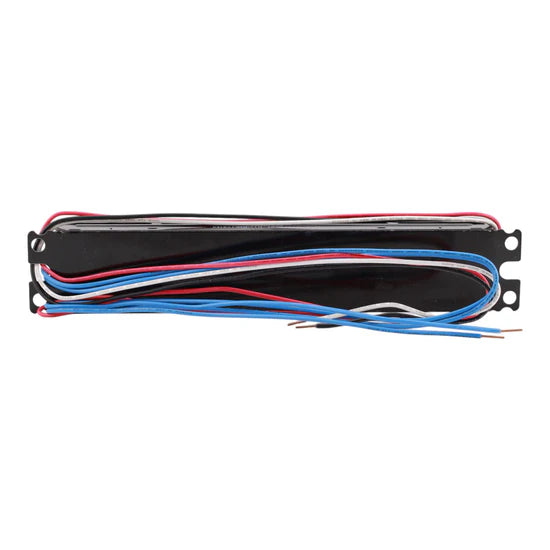

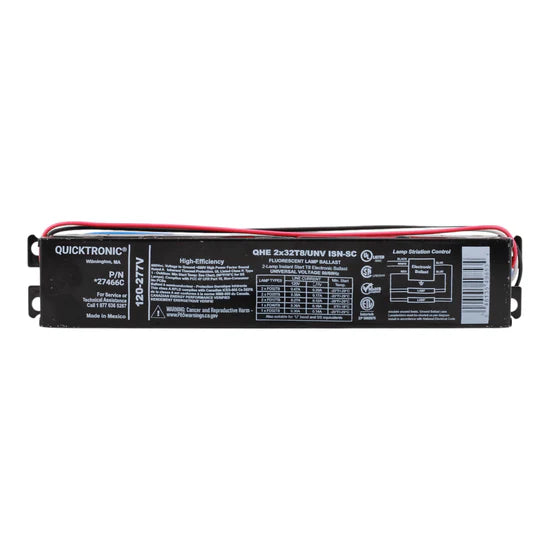

Sylvania QHE2X32T8/UNV-ISN-SC 32W 2-Lamp Electronic Fluorescent Ballast – Plug-In – 120-277V

The Sylvania QHE2X32T8/UNV-ISN-SC Electronic Fluorescent Ballast provides reliable instant-start operation for T8 and F40T8 lamps. Designed for 2-lamp applications, it supports parallel lamp connection and maintains high efficiency with a 99% power factor and less than 10% total harmonic distortion. Compatible with 120–277V systems, this ballast offers durable performance in a compact design and meets UL, FCC, and ANSI safety standards.

Voltage and Rating

• Voltage Rating: 120-277V
• Number of Lamps: 2Key Specifications

• Key Specifications

• Ballast Type: Electronic Fluorescent Ballast
• Lamp Compatibility: F32T8, F25T8, F17T8, F40T8
• Ballast Factor: 88–96%
• Start Type: Instant Start
• Power Factor: 99%
• Total Harmonic Distortion (THD): <10%
• Parallel Lamp Connection: Yes

Technical Specifications

• Minimum Starting Temperature: -20°F (-29°C) for T8 lamps, 0°F (-18°C) for F40T8 lamps
• Maximum Case Temperature: 158°F (70°C)
• Sound Rating: Class A
• Certifications: UL Listed, FCC 47CFR Part 18 Non-Consumer, ANSI C62.41 Cat. A

Product Data

• • Brand: Sylvania
  • Manufacturer: Sylvania
  • Model Number: QHE2X32T8/UNV-ISN-SC
  • UPC: 046135498534
  • Dimensions (H × W × L): 1.2 in × 1.8 in × 9.5 in
  • Weight: 0.84 lbs (13.4 oz)
