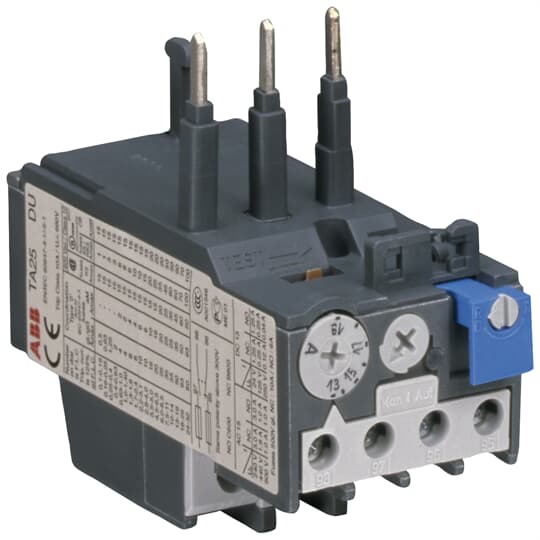

ABB TA25DU25 Thermal Overload Relay – Trip Class 10A –Motor Overload Protection – Direct-to-Contactor Mounting – TA25DU Series

The ABB TA25DU25 is an electromechanical thermal overload relay designed to provide reliable motor protection against overload and phase-failure conditions. It is part of the ABB TA25DU Series and is designed to connect directly to compatible block contactors.

The relay features a Trip Class 10A characteristic, temperature compensation, a normally closed (NC) trip contact, and a normally open (NO) signal contact. It provides selectable automatic or manual reset, a trip-free mechanism, STOP and Test functions, and a visual trip indication.

Specifications:

• Manufacturer: ABB
• Product Type: Thermal Overload Relay
• Product Family: TA25DU
• Series: TA25DU
• Catalog No.: TA25DU25
• Protection Type: Thermal Overload Protection
• Trip Class: 10A
• Motor Protection: Overload and Phase-Failure Protection
• Temperature Compensation: Yes
• Trip Contact: Normally Closed (NC)
• Signal Contact: Normally Open (NO)
• Reset Type: Automatic or Manual, Selectable
• Mechanism: Trip-Free
• Functions: STOP and Test
• Trip Indication: Yes
• Mounting / Connection: Direct Connection to Compatible Block Contactors
• Single Mounting Kit: Available as Accessory
• Application: Motor Overload and Phase-Failure Protection
• Brand: ABB

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TA25DU25
• Catalog Number: TA25DU25
• Model: TA25DU25
• Product Family: ABB TA25DU Thermal Overload Relays
• Series: TA25DU
• Brand: ABB
• Manufacturer: ABB
• Product Type: Thermal Overload Relay
• Trip Class: 10A
• UPC:
  4013614216633

Compatibility:

Designed for use with compatible ABB block contactors and motor-control equipment. The TA25DU25 connects directly to compatible contactors and provides thermal protection against motor overload and phase-failure conditions.

Single mounting kits are available as accessories where standalone mounting is required. Always verify the specific contactor model, overload-relay compatibility, motor current requirements, system voltage, control-circuit requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• ABB TA25DU Series
• Trip Class 10A
• Thermal Overload Protection
• Overload Protection
• Phase-Failure Protection
• Temperature Compensation
• NC Trip Contact
• NO Signal Contact
• Automatic/Manual Reset
• STOP and Test Functions
• Trip-Free Mechanism
• Trip Indication
