Siemens TA2J6500 Lug Terminal Kit – 200–600A – 2-Barrel – 2/3-Pole – JD/LD Frame – Line/Load Side – SENTRON Series

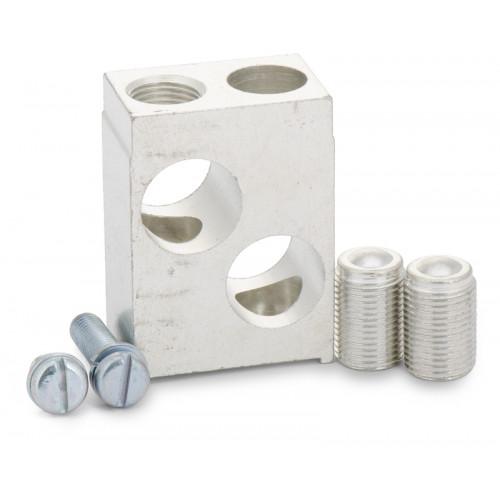

The Siemens TA2J6500 is a low-voltage SENTRON molded case circuit breaker accessory featuring an aluminum body lug designed for compatible 2- and 3-pole JD and LD frame circuit breakers. It is suitable for 200–400A JD frame breakers and 250–600A LD frame breakers. The two-barrel lug accommodates copper or aluminum conductors and can be used on both line and load sides.

Specifications:

• Manufacturer : Siemens
• Product Type : Circuit Breaker Lug Terminal Kit
• Catalog No. : TA2J6500
• Product Description : Siemens Low Voltage SENTRON Molded Case Circuit Breaker Accessory
• Accessory Type : Aluminum Body Lug
• Frame Types : JD / LD
• Breaker Configuration : 2-Pole / 3-Pole
• JD Frame Rating : 200–400A
• LD Frame Rating : 250–600A
• Barrels : 2
• Conductor Material : Copper / Aluminum
• Copper Wire Range : 3/0 AWG–500 kcmil
• Aluminum Wire Range : 4/0 AWG–500 kcmil
• Installation : Suitable for Line and Load Sides
• Material : Aluminum
• Product Lifecycle (PLM) : PM300: Active Product
• Product Group : 3741
• Net Weight : 0.333 lb
• RoHS Compliance : Compliant with applicable substance restrictions since 07/31/2008
• Application : Molded case circuit breaker terminal connection
• Authenticity : Authentic Siemens Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : TA2J6500
• Catalog Number : TA2J6500
• Product Family : Siemens SENTRON Circuit Breaker Accessories
• Brand : Siemens
• Manufacturer : Siemens
• Product Type : Lug Terminal Kit
• Accessory Type : Aluminum Body Lug
• upc:783643184312

Compatibility:

Designed for use with compatible Siemens SENTRON JD and LD frame molded case circuit breakers. The TA2J6500 is suitable for 2- and 3-pole JD frame breakers rated 200–400A and LD frame breakers rated 250–600A. The two-barrel lug supports copper conductors from 3/0 AWG to 500 kcmil and aluminum conductors from 4/0 AWG to 500 kcmil. It is suitable for installation on both the line and load sides. Always verify the specific breaker frame and terminal requirements before installation.

Certifications:

• PM300: Active Product
• RoHS Compliant with applicable substance restrictions since 07/31/2008
• Suitable for Line and Load Sides
• Genuine Siemens Product
