GE TEB132025WL 25 Amp E150 Line Molded Case Circuit Breaker – 3 Pole – 240V AC – 10 kA @ 240V

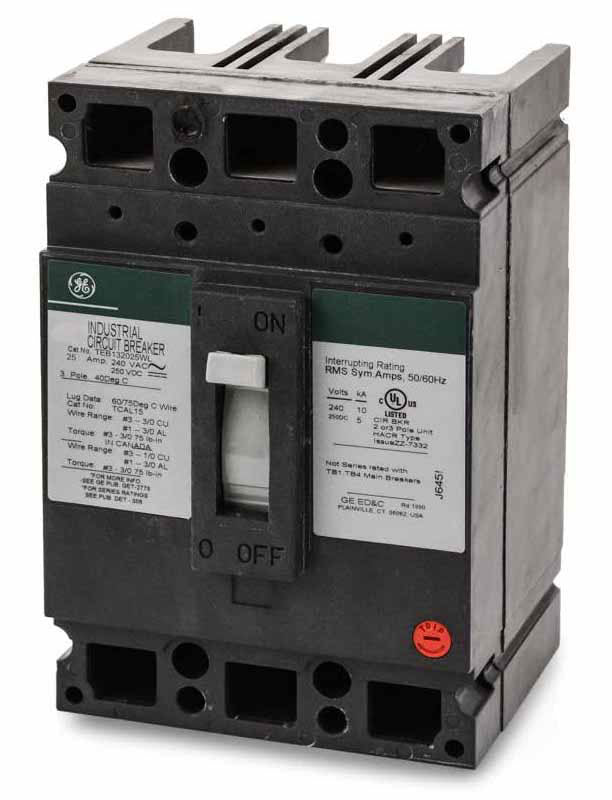

The General Electric TEB132025WL is an E150 Line molded case circuit breaker designed for three-phase electrical distribution and branch-circuit protection. Rated at 25A and 240V AC, it provides a standard interrupting capacity of 10kA at 240V. The breaker features a feed-through connection, line-side and load-side lug terminals, and a 40°C calibration rating.

Specifications

• Brand: General Electric (GE)
• Product Series: E150 Line
• Catalog Number: TEB132025WL
• Circuit Breaker Type: Molded Case Circuit Breaker (MCCB)
• Type: TEB
• Current Rating: 25A
• Number of Poles: 3
• Phase: 3-phase
• Voltage Rating: 240V AC
• Interrupting Capacity: 10kA at 240V AC
• Interrupting Class: Standard
• Connection Type: Feed-through
• Terminals: Line-side and load-side lug terminals
• Calibration Temperature: 40°C

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• MPN: TEB132025WL
• Product Family: E150 Line
• Type Reference: TEB
• UPC:783164068832

Compatibility

Designed for compatible GE E150 Line distribution equipment accepting TEB-series molded case circuit breakers. Suitable for three-phase, 240V AC applications requiring 25A circuit protection with feed-through connections.
