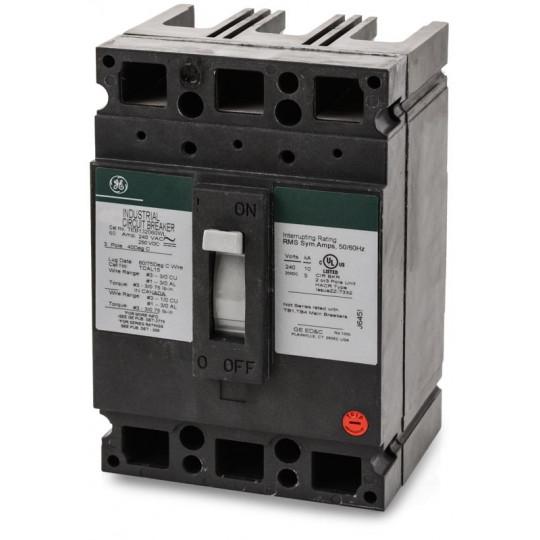

GE TEB132060WL Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Feed-Thru – E150 Line TEB Series

The GE TEB132060WL is a 60A, 3-pole, 3-phase molded case circuit breaker from the General Electric E150 Line Type TEB Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The TEB132060WL is rated for 240V and provides a 10kA interrupting rating at 240V with standard interrupting capacity. It features a feed-thru configuration with line-side and load-side lug terminals and is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: E150 Line
• Series: E150 Line
• Type: TEB
• Catalog No.: TEB132060WL
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Not specified
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEB132060WL
• Catalog Number: TEB132060WL
• Model: TEB132060WL
• Product Family: GE E150 Line Circuit Breakers
• Series: E150 Line
• Type: TEB
• Brand: General Electric (GE)
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• UPC:783164068955

Compatibility:

Designed for use with compatible GE E150 Line Type TEB electrical distribution equipment that accepts TEB Series molded case circuit breakers. The TEB132060WL provides 60A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker features a feed-thru configuration with line-side and load-side lug terminals and a 10kA interrupting rating at 240V. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
