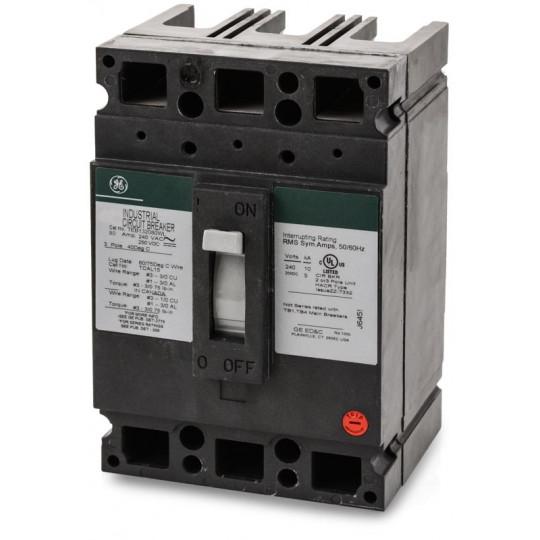

GE TEB132080 Molded Case Circuit Breaker – 80A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Feed-Thru – E150 TEB Series

The GE TEB132080 is an 80A, 3-pole, 3-phase molded case circuit breaker from the GE E150 Line Type TEB Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The breaker is rated for 240V and provides a 10kA interrupting rating at 240V with standard interrupting capacity. It features a feed-thru configuration, includes line- and load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: E150 Line
• Series: E150
• Type: TEB
• Catalog No.: TEB132080
• Alternate Model: TEB132080WL
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEB132080
• Catalog Number: TEB132080
• Alternate Model: TEB132080WL
• Model: TEB132080
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Product Family: E150 Line
• Series: E150
• Type: TEB
• Breaker Configuration: 3-Pole, 80A
• UPC:783164068986

Compatibility:

Designed for use with compatible GE E150 Line Type TEB electrical distribution equipment that accepts TEB Series molded case circuit breakers. The TEB132080 provides 80A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker features a feed-thru configuration with line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.
