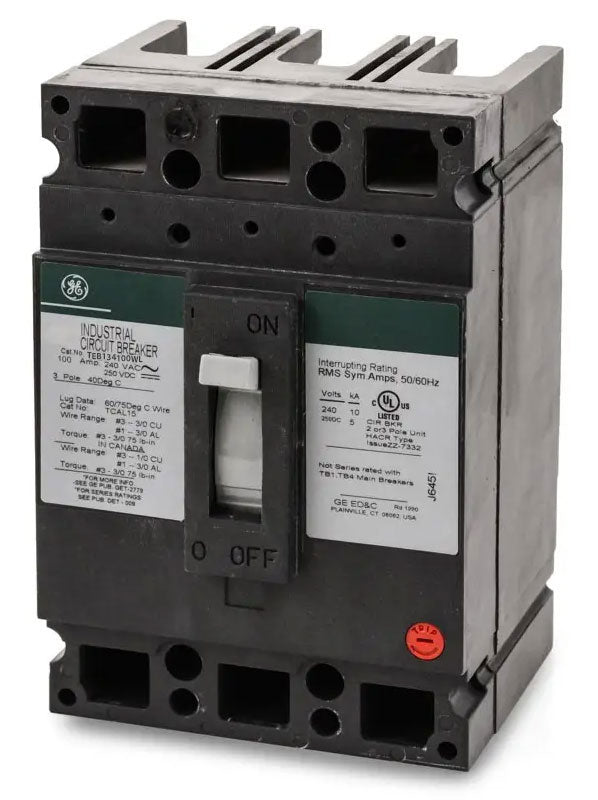

GE TEB134100WL 100 Amp Molded Case Circuit Breaker – 3 Pole – 240V AC – 10 kA @ 240V

The GE TEB134100WL is an E150 Line molded case circuit breaker featuring a 100A, three-pole configuration and a 240V AC voltage rating. It provides standard interrupting capacity of 10kA at 240V and is supplied with line-side and load-side lug terminals. Designed for feed-through installation, it is rated for operation at 40°C.

Specifications

• Brand: General Electric (GE)
• Product Line: E150
• Type: TEB
• MPN: TEB134100WL
• Current Rating: 100A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 240V AC
• Interrupting Capacity: 10kA at 240V
• Interrupting Rating: Standard
• Connection: Feed-through
• Terminals: Line-side and load-side lug terminals included
• Temperature Rating: 40°C

Part Numbers & Identification

• Manufacturer Part Number: TEB134100WL
• Series: E150 Line
• Breaker Type: TEB
• Product Category: Molded Case Circuit Breaker (MCCB)
• UPC:783164065541

Compatibility

Designed for compatible GE E150 Line panelboards and distribution equipment supporting TEB-type, three-pole circuit breakers with a 100A rating and 240V AC application.
