TED124090WL - General Electric Feed-Thru 480V 90A 2 pole circuit breaker 18kA@480V
Couldn't load pickup availability
Ask an expert
Description
TED124090WL

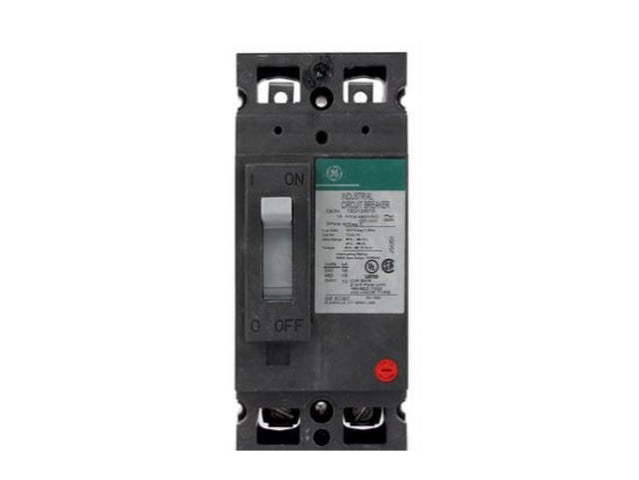

The General Electric TED124090WL is a Molded Case Circuit Breaker. This type TED circuit breaker is a member of The E150 Line family. The TED124090WL is a 2 pole, 480 Volt, 90 amp rated circuit breaker, with an AIC rating of 18kA@480V. The TED124090WL is manufactured by General Electric. The TED124090WL uses a Feed-Thru connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: TED124090WL
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 480
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Line/Load Lug
- Frame Size : 150A/TED
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
Product Data
- UPC : 783164068078
- GTIN : 00783164068191
- Country of Origin : United States
- Dimensions : 2-3/4 in x 6-5/16 in
- Weight : 2
- Panel Type : GE Panelboards
- Standards : CSA Certified, UL Listed
- Certification : CSA Certified, UL Listed
- Type Circuit Breakers
- Vendor GE
- Brand GE
- Electrical Rating Feed-Thru - 90 Amp - 2 Pole - 480 Volt
