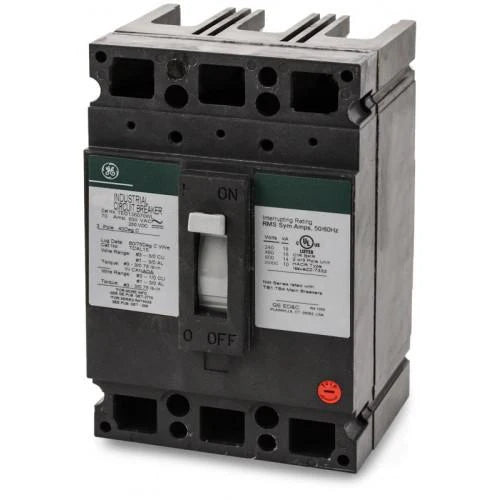

GE TED136070 Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 600V – 18kA @ 480V – Feed-Thru – E150 Line TED Series

The GE TED136070 is a 70A, 3-pole, 3-phase molded case circuit breaker from the General Electric E150 Line Type TED Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The TED136070 is rated for 600V and provides an 18kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line- and load-side lug terminals, and is rated for operation at 40°C. The breaker is supplied as a complete breaker.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: E150 Line
• Series: TED
• Type: TED
• Catalog No.: TED136070
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting / Connection: Feed-Thru
• Breaker Configuration: Complete Breaker
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TED136070
• Catalog Number: TED136070
• Model: TED136070
• Product Family: GE E150 Line Circuit Breakers
• Series: TED
• Type: TED
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• UPC:783164063516

Compatibility:

Designed for use with compatible GE E150 Line Type TED electrical distribution equipment that accepts TED Series molded case circuit breakers. The TED136070 provides 70A, 3-pole thermal-magnetic overcurrent protection for compatible 600V, 3-phase electrical distribution applications.

The breaker features a feed-thru configuration, complete breaker construction, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• 70A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Feed-Thru Configuration
• Complete Breaker
• Line-Side and Load-Side Lug Terminals
• 40°C Rated
• GE E150 Line TED Series
