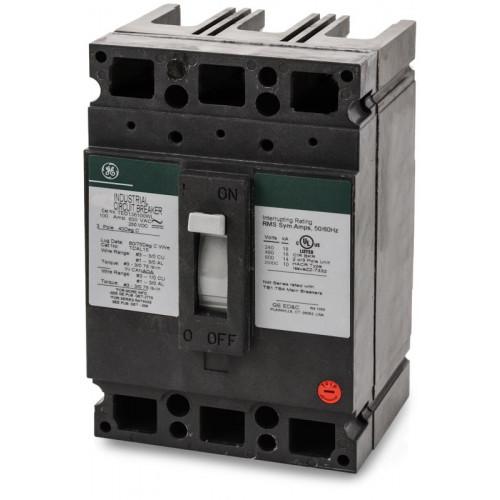

GE TED136100WL Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 18kA @ 480V – Feed-Thru – E150 TED Series

The GE TED136100WL is a 100A, 3-pole, 3-phase molded case circuit breaker from the General Electric E150 Line, Type TED Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The breaker is rated for 600V and provides an 18kA interrupting rating at 480V. It has a standard interrupting capacity, uses a feed-thru configuration, and is supplied complete with line-side and load-side lug terminals. The breaker is calibrated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: E150 Line
• Series: TED
• Type: TED
• Catalog No.: TED136100WL
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TED136100WL
• Catalog Number: TED136100WL
• Model: TED136100WL
• Product Family: GE E150 Line Molded Case Circuit Breakers
• Series: TED
• Type: TED
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:783164063264

Compatibility:

Designed for use with compatible GE E150 Line Type TED electrical distribution equipment that accepts the specified molded case circuit breaker configuration. The TED136100WL provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 600V applications.

The breaker uses a feed-thru configuration and includes line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• E150 Line
• TED Series
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• 40°C Rated
