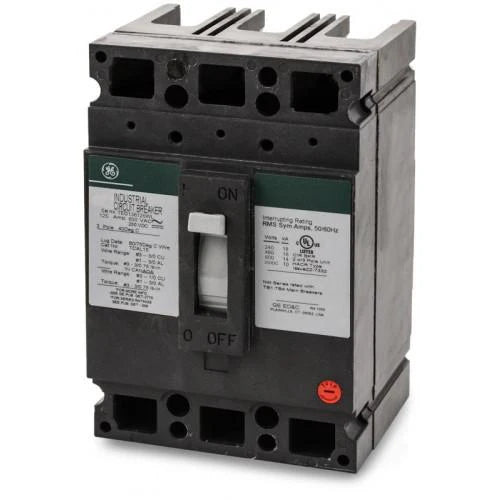

GE TED136125 Molded Case Circuit Breaker – 125A – 3-Pole / 3-Phase – 600V – 18kA @ 480V – Feed-Thru – E150 Line TED Series

The GE TED136125 is a 125A, 3-pole, 3-phase molded case circuit breaker from the General Electric E150 Line Type TED Series. It is designed for compatible electrical distribution applications and features thermal-magnetic protection.

The TED136125 is rated for 600V and provides an 18kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration and is supplied as a complete breaker with line-side and load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: E150 Line
• Series: TED
• Type: TED
• Catalog No.: TED136125
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 18kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Breaker Configuration: Complete Breaker
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TED136125
• Catalog Number: TED136125
• Model: TED136125
• Product Family: GE E150 Line Circuit Breakers
• Series: TED
• Type: TED
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 125A
• UPC:783164132939

Compatibility:

Designed for use with compatible GE E150 Line Type TED electrical distribution equipment that accepts TED Series molded case circuit breakers. The TED136125 provides 125A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration, complete breaker construction, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, temperature requirements, and installation requirements before installation.

Certifications:

• E150 Line TED Series
• 125A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 18kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Complete Breaker
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• 40°C Rated
