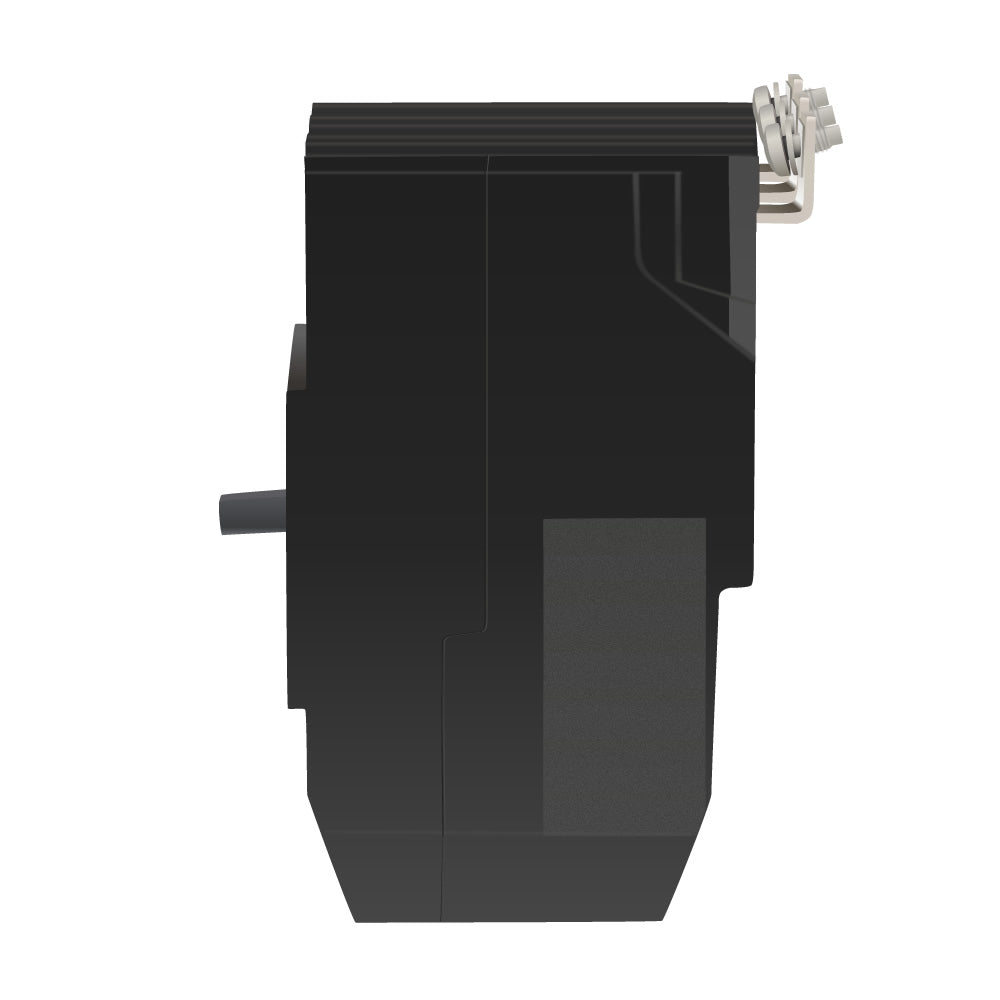

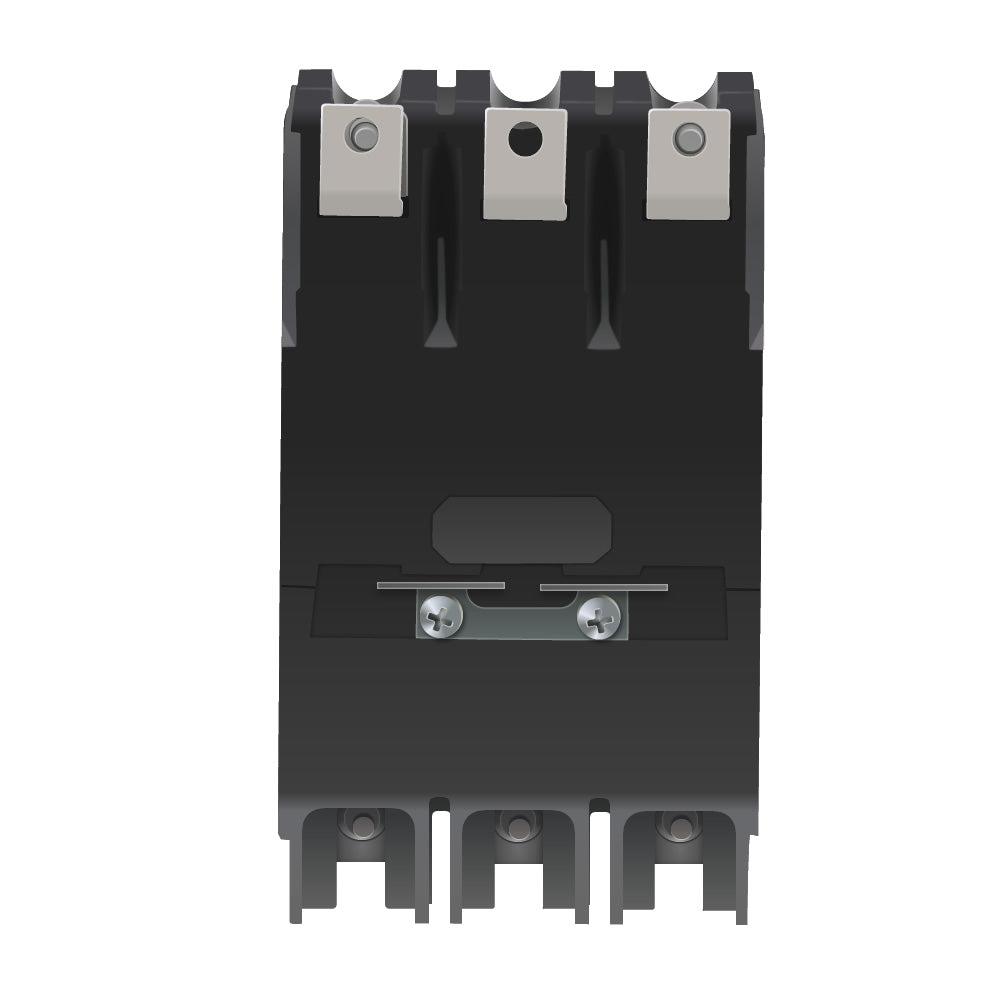

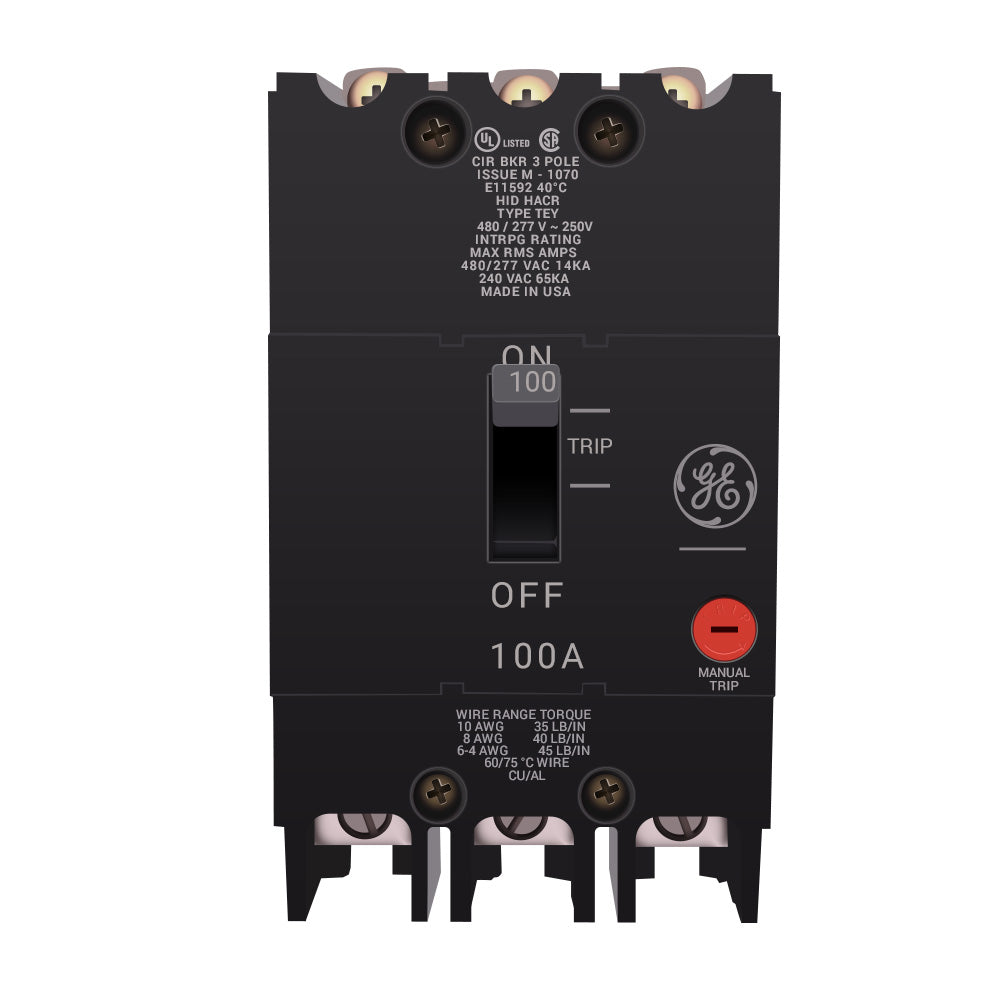

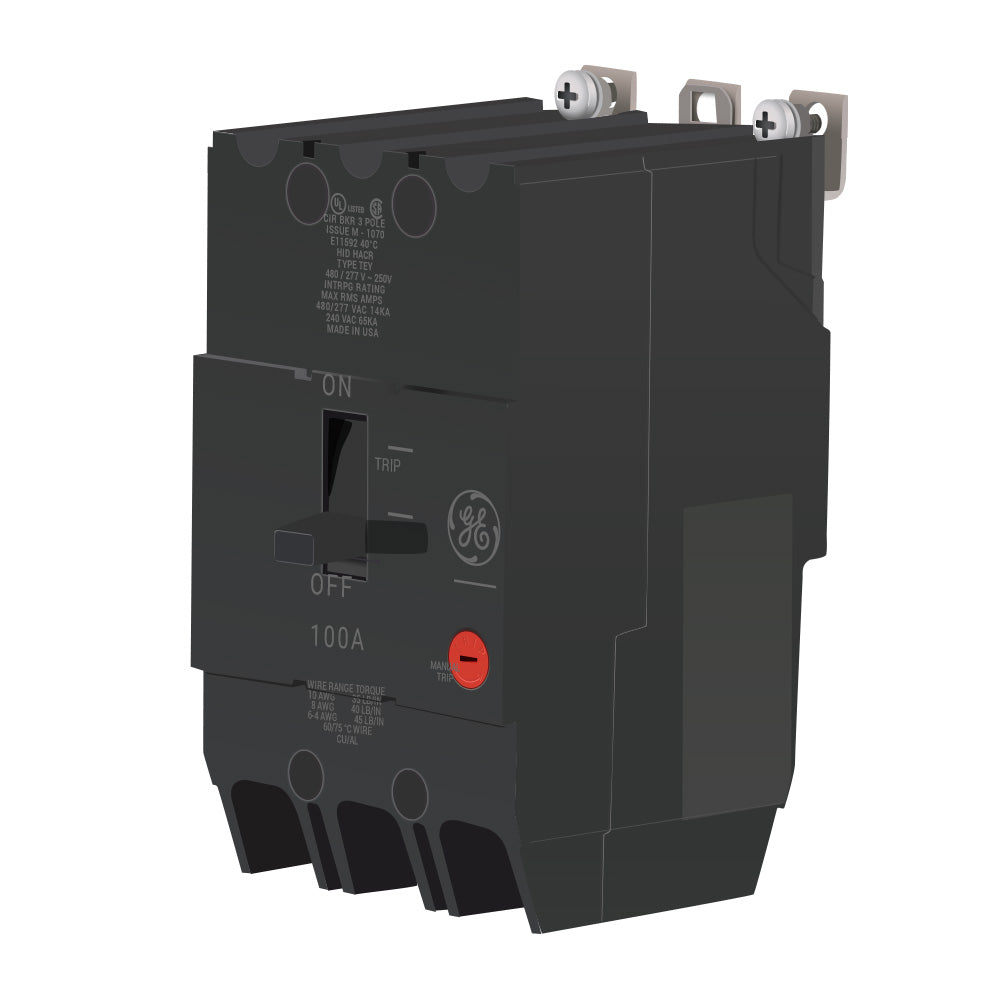

GE TEY3100 Molded Case Circuit Breaker – 100A – 3-Pole – 480Y/277VAC – 14kAIC @ 480Y/277V – Bolt-On – Q-Line TEY

The General Electric (GE) TEY3100 is a 100A, 3-pole molded case circuit breaker from the Q-Line TEY Series, designed for commercial, industrial, and lighting-panel electrical distribution applications. It features a fixed thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection functions for reliable overload and short-circuit protection.

The TEY3100 is designed for 480Y/277VAC grounded distribution systems and uses a compact bolt-on mounting configuration with load-side lug connections. It provides an interrupting capacity of 14kAIC at 480Y/277VAC and up to 65kAIC at 120/240VAC and 240VAC.

The breaker features a non-interchangeable trip unit, quick-make/quick-break operating mechanism, and common trip bar. It is suitable for compatible GE Q-Line lighting panelboards and electrical distribution equipment.

Specifications

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Catalog No.: TEY3100
• Series: Q-Line TEY
• Frame Size: TEY Frame
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480Y/277VAC
• Frequency: 50/60 Hz
• Trip Unit: Fixed Thermal-Magnetic
• Protection Functions: LI – Long-Time and Instantaneous
• Trip Unit Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Connection Type: Load-Side Lugs
• Wire Size: 14–8 AWG Copper / 12–8 AWG Aluminum
• Interrupting Rating: 65kA at 120/240VAC
• Interrupting Rating: 65kA at 240VAC
• Interrupting Rating: 14kA at 277VAC
• Interrupting Rating: 14kA at 480Y/277VAC
• Panel Compatibility: GE Q-Line Lighting Panelboards
• Additional Ratings: HACR and HID Rated
• Standards: UL Listed, cUL Approved
• Application: Commercial, Industrial, Lighting, and Electrical Distribution
• Country of Manufacture: United Kingdom
• Weight: Approximately 3.1 lb
• Authenticity: Genuine General Electric Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): TEY3100
• Catalog Number: TEY3100
• Model: TEY3100
• Product Family: GE Q-Line Circuit Breakers
• Series: Q-Line TEY
• Frame: TEY
• Brand: General Electric (GE)
• Manufacturer: GE Industrial Solutions
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Configuration: Fixed LI Thermal-Magnetic
• UPC: 783164182279
• GTIN: 00783164182279
• upc: 783164182279

Compatibility

Designed for use with compatible GE Q-Line TEY Series electrical distribution equipment, including GE ASL, AE, and AD lighting panelboards and compatible commercial and industrial control panels.

The TEY3100 is intended for 3-phase, grounded 480Y/277VAC systems and uses a 3-pole bolt-on configuration with load-side lugs. Its fixed thermal-magnetic LI trip unit provides long-time and instantaneous overcurrent protection.

It is suitable for applications including commercial and industrial lighting, HVAC, heating and refrigeration equipment, manufacturing facilities, and electrical distribution systems, where the breaker ratings and panelboard specifications are appropriate.

Always verify the specific panelboard model, breaker series, system voltage, pole configuration, interrupting rating, conductor requirements, and manufacturer-approved application before installation.

Certifications

• UL Listed
• cUL Approved
• HACR Rated
• HID Rated
• 65kA Interrupting Rating at 120/240VAC
• 65kA Interrupting Rating at 240VAC
• 14kA Interrupting Rating at 480Y/277VAC
• Thermal-Magnetic LI Protection
• Bolt-On Mounting
• 3-Pole / 3-Phase
• 100A Rated
• Genuine General Electric Product
