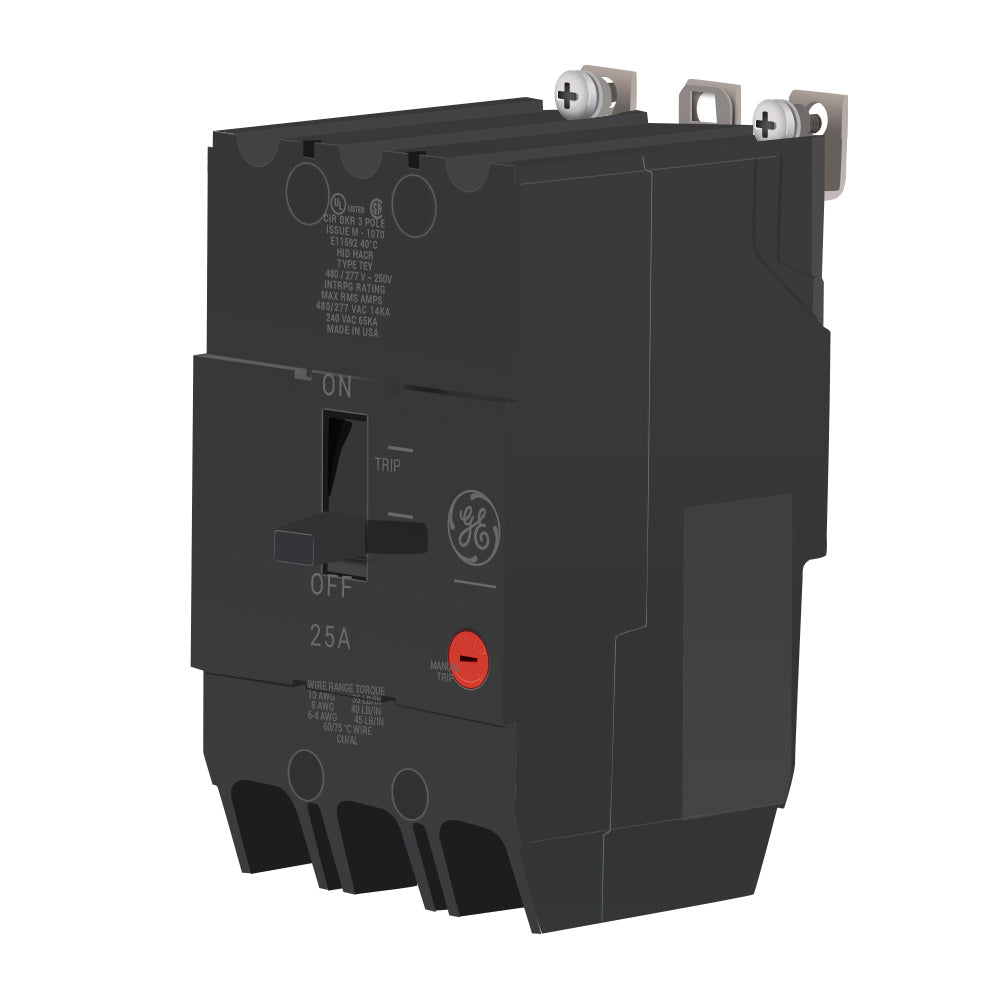

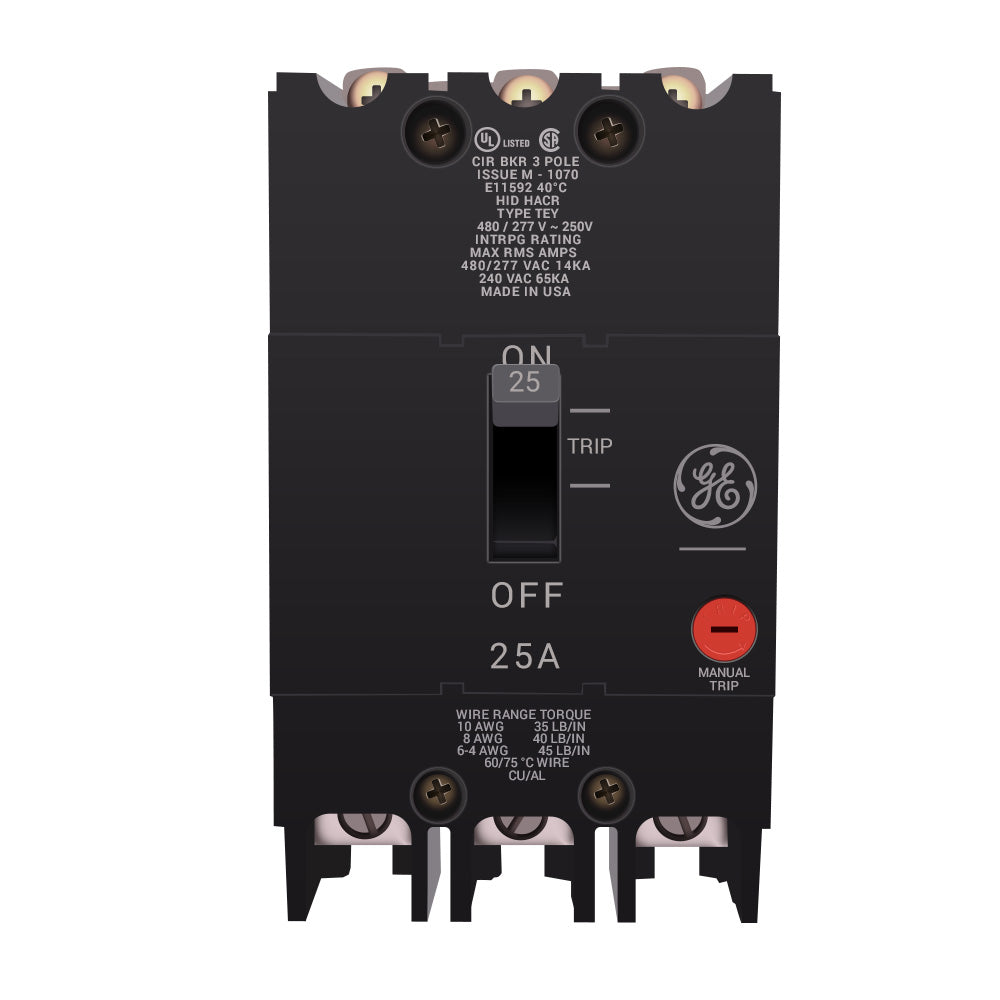

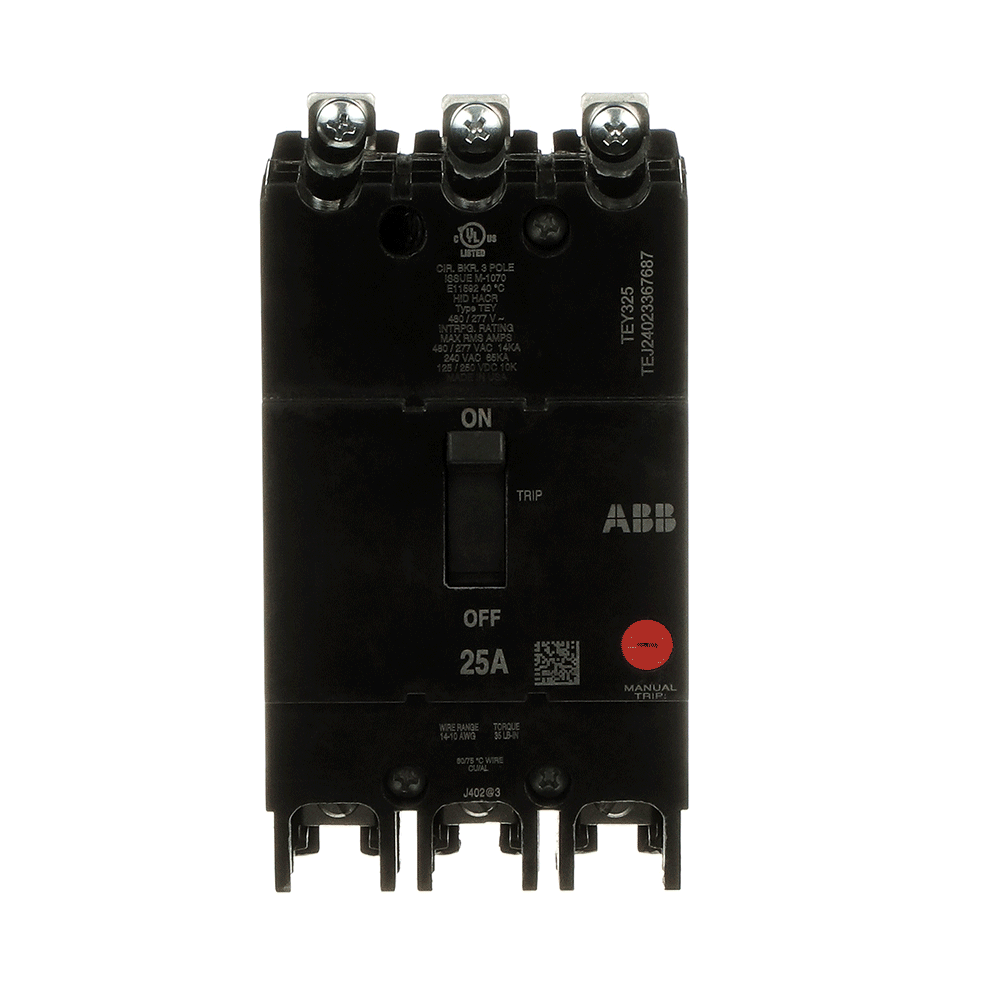

GE TEY325 Molded Case Circuit Breaker – 25A – 3-Pole – 277/480V – 14kA – Bolt-On – TEY Series

The GE TEY325 is a 25A, 3-pole, 3-phase molded case circuit breaker from the Q-Line Type TEY Series. It is rated for 277/480V AC and provides a 14kA interrupting rating at 480V.

The breaker features a thermal-magnetic trip mechanism and a bolt-on mounting configuration, making it suitable for compatible GE electrical distribution equipment requiring standard-interrupting circuit protection.

Specifications:

• Brand: General Electric (GE)
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Series: Q-Line Type TEY
• Catalog Number: TEY325
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 277/480V AC
• Interrupting Rating: 14kA @ 480V
• Interrupting Capacity: Standard
• Trip Technology: Thermal-Magnetic
• Mounting Type: Bolt-On
• Ambient Rating: 40°C
• Application: Electrical circuit protection and power distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEY325
• Catalog Number: TEY325
• Product Family: Q-Line Type TEY Circuit Breakers
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: TEY325
• UPC:783164403480

Compatibility:

Designed for use with compatible GE Q-Line Type TEY electrical distribution equipment accepting 3-pole bolt-on molded case circuit breakers. The TEY325 is suitable for 25A, 3-phase, 277/480V AC applications with a standard interrupting capacity of 14kA at 480V.

Always verify the specific panelboard or electrical equipment model, approved breaker type, voltage, interrupting rating, and mounting requirements before installation.

Certifications:

• Standard Interrupting Capacity
• 40°C Rated
