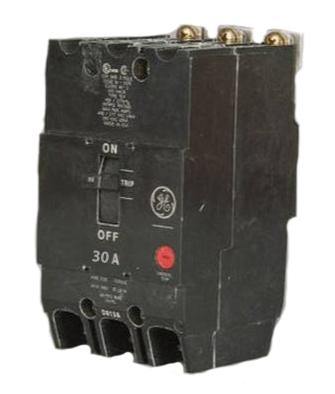

GE TEY330ST12 30 Amp Molded Case Circuit Breaker – 3 Pole – 277/480 V – 14 kA@480 V – 120–277 V AC Shunt Trip – Q-Line Series

The General Electric TEY330ST12 is a 30 Amp, 3-pole, 3-phase molded case circuit breaker from the GE Q-Line Series, Type TEY. It is rated for 277/480 V and provides a 14 kA interrupting rating at 480 V with standard interrupting capacity. The breaker features thermal-magnetic protection and a factory-installed 120–277 V AC shunt trip. It is designed for bolt-on mounting and is calibrated for 40°C applications.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: Q-Line
• Type: TEY
• Catalog Number / MPN: TEY330ST12
• Primary Rating: 30 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 277/480 V
• Interrupting Rating: 14 kA @ 480 V
• Interrupting Capacity: Standard
• Calibration Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Accessory: Factory-Installed Shunt Trip
• Shunt Trip Voltage: 120–277 V AC
• Connection / Mounting: Bolt-On

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: TEY330ST12
• Series: Q-Line
• Type: TEY
• Current Rating: 30 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Accessory: Factory-Installed 120–277 V AC Shunt Trip
• Connection: Bolt-On
• UPC:783164196634

Compatibility

The GE TEY330ST12 is intended for compatible General Electric Q-Line Type TEY panelboard and electrical distribution applications.
