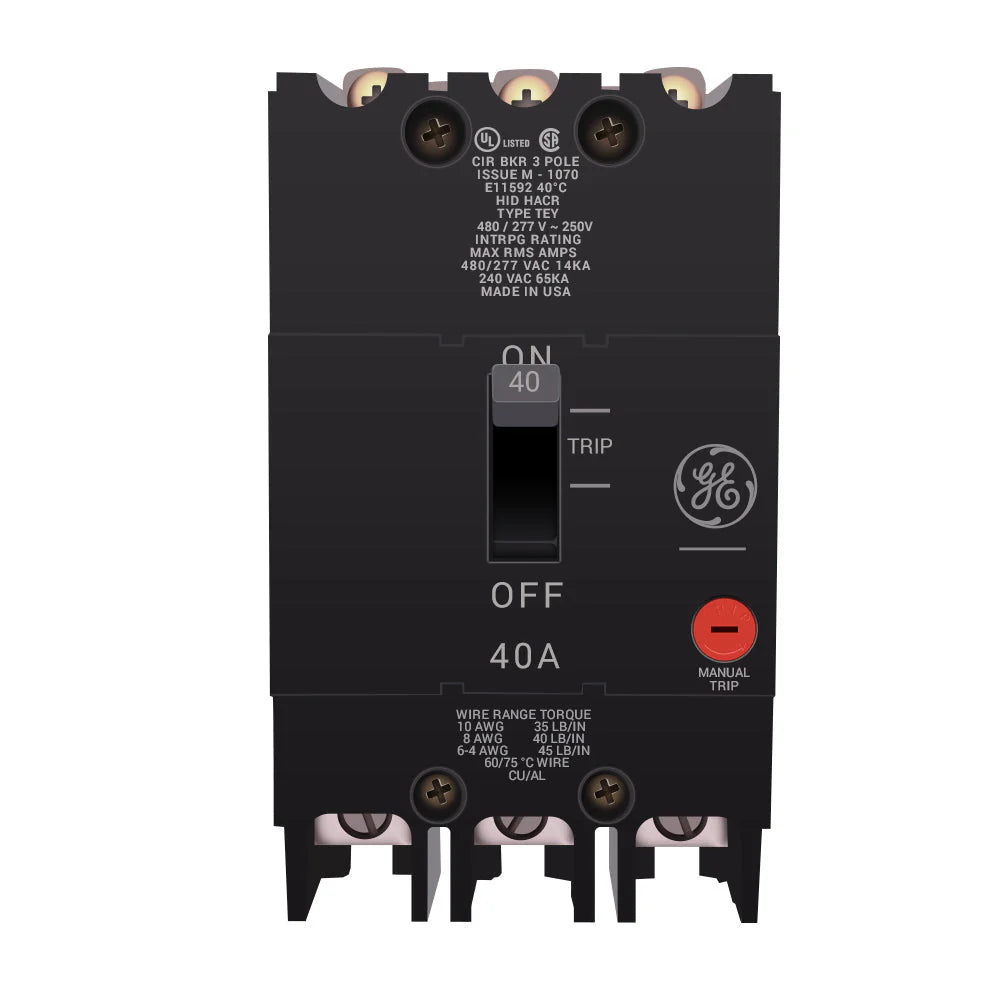

TEY340 - General Electric Bolt-on 480V 40A 3 pole circuit breaker 14kA@480V
Couldn't load pickup availability
Ask an expert
Description
TEY340
The General Electric TEY340 is a Molded Case Circuit Breaker. This type TEY circuit breaker is a member of The Q-Line family. The TEY340 is a 3 pole, 480 Volt, 40 amp rated circuit breaker, with an AIC rating of 14kA@480V. The TEY340 is manufactured by General Electric. The TEY340 uses a Bolt-on connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: TEY340
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TEY
- Voltage : 480
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783164181050
- GTIN : 40783164181058
- Country of Origin : United States
- Dimensions : 3 in x 5.25" x 5-1/4 in
- Weight : 2
- Panel Type : GE AE Lighting Panels
- Standards : CSA, UL
- Certification : CSA, UL
