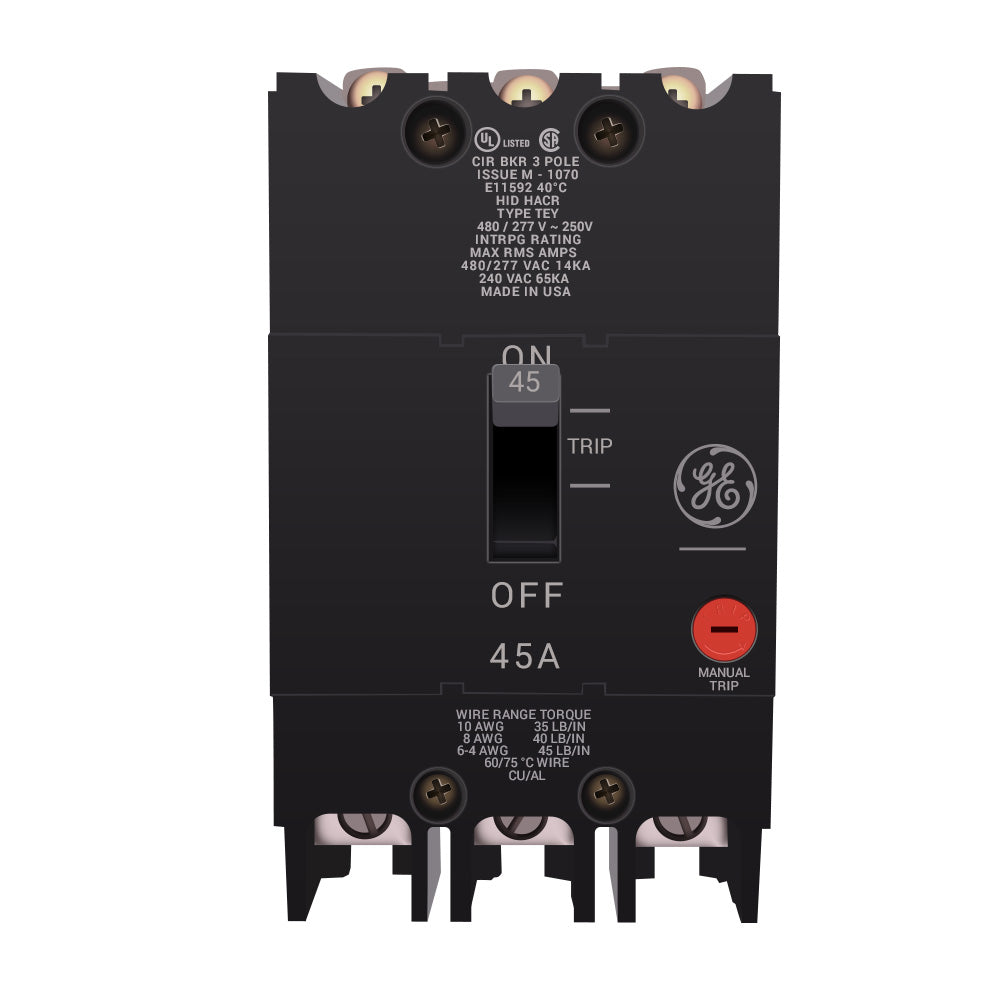

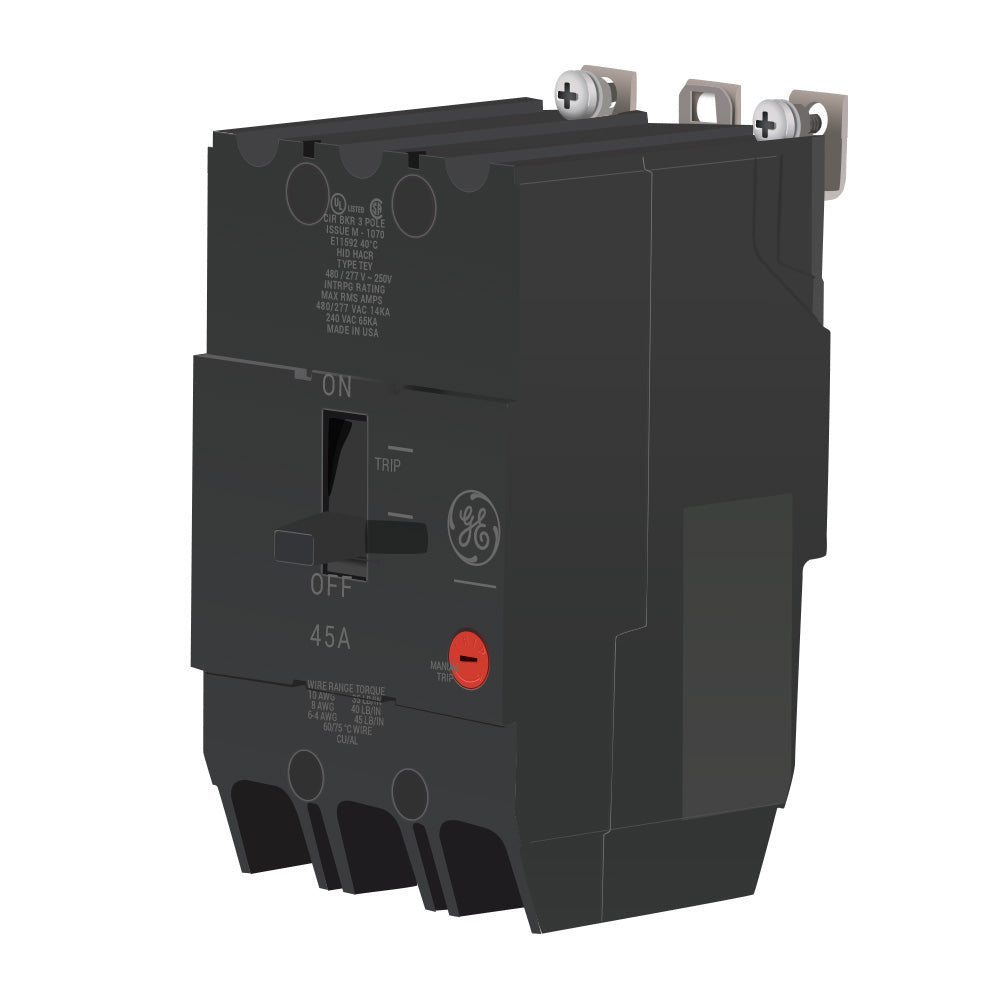

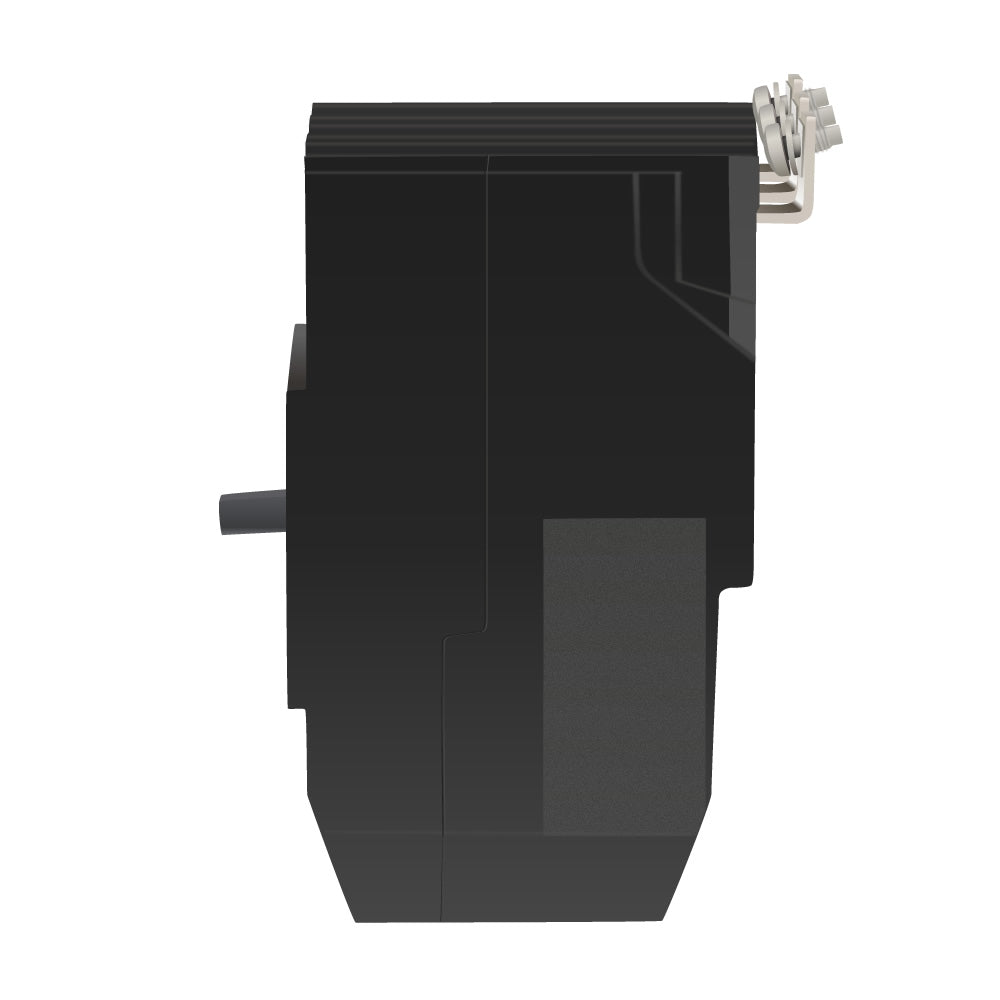

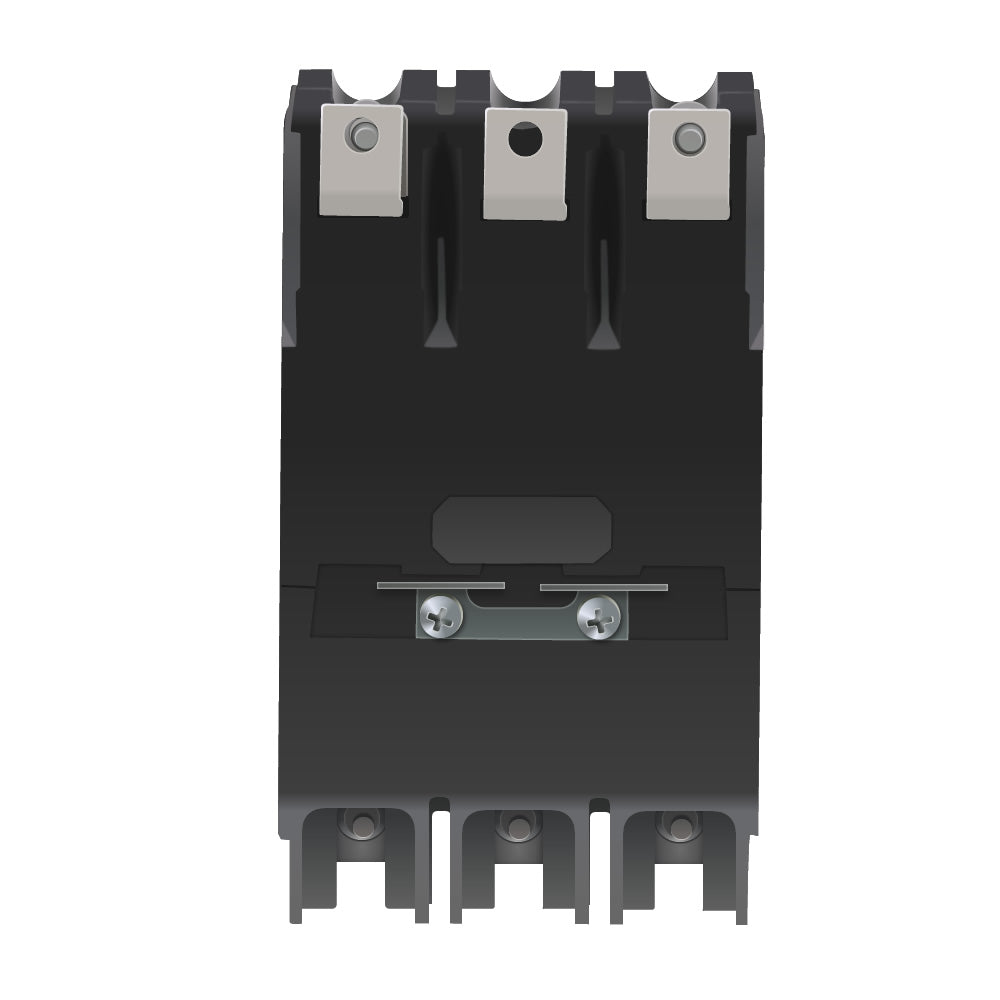

GE TEY345 Molded Case Circuit Breaker – 45A – 3-Pole – 277/480V – 14kA @ 480V – Bolt-On – Q-Line TEY Series

The GE TEY345 is a 45A, 3-pole molded case circuit breaker from the General Electric Q-Line Type TEY Series. It is designed for compatible three-phase electrical distribution applications and provides overload and short-circuit protection through thermal-magnetic trip technology.

The TEY345 is rated for 277/480V and provides a 14kA interrupting rating at 480V. It features a bolt-on mounting configuration and is designed for applications requiring standard interrupting capacity at a 40°C calibration temperature.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Series: Q-Line TEY
• Type: TEY
• Catalog No.: TEY345
• Current Rating: 45A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 277/480V
• Interrupting Rating: 14kA @ 480V
• Interrupting Capacity: Standard
• Trip Technology: Thermal-Magnetic
• Mounting Type: Bolt-On
• Calibration Temperature: 40°C
• Application: Electrical Distribution and Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEY345
• Catalog Number: TEY345
• Brand: GE
• Manufacturer: General Electric
• Product Family: Q-Line
• Series: TEY
• Breaker Type: Molded Case Circuit Breaker
• Model: TEY345
• Configuration: 45A, 3-Pole
• upc:783164403503

Compatibility:

Designed for use with compatible GE Q-Line Type TEY electrical distribution equipment that accepts TEY Series bolt-on molded case circuit breakers. The TEY345 is a 45A, 3-pole, 277/480V breaker with thermal-magnetic protection and standard interrupting capacity.

Always verify the specific panelboard or equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and installation requirements before installation.

Certifications:

• Q-Line TEY Series
• 45A Rated
• 3-Pole / 3-Phase
• 277/480V Rated
• 14kA @ 480V
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Bolt-On Mounting
• 40°C Calibration
