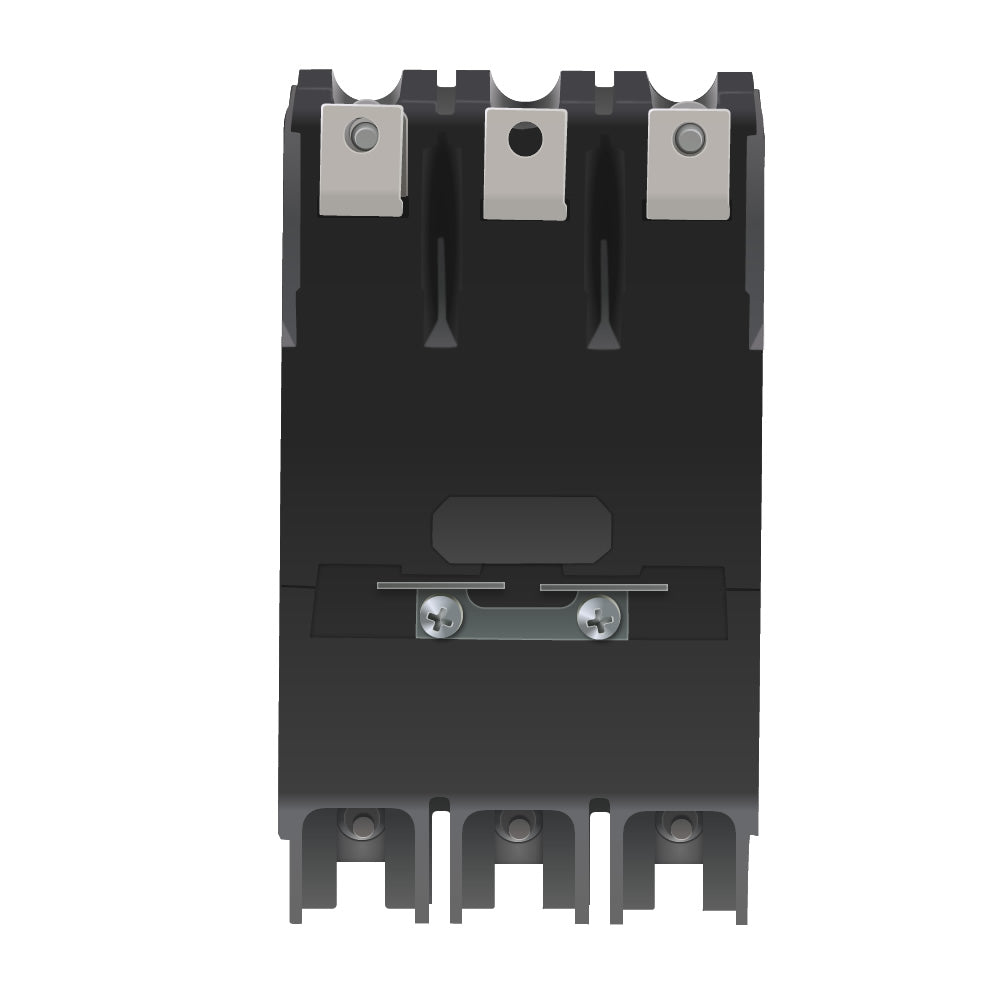

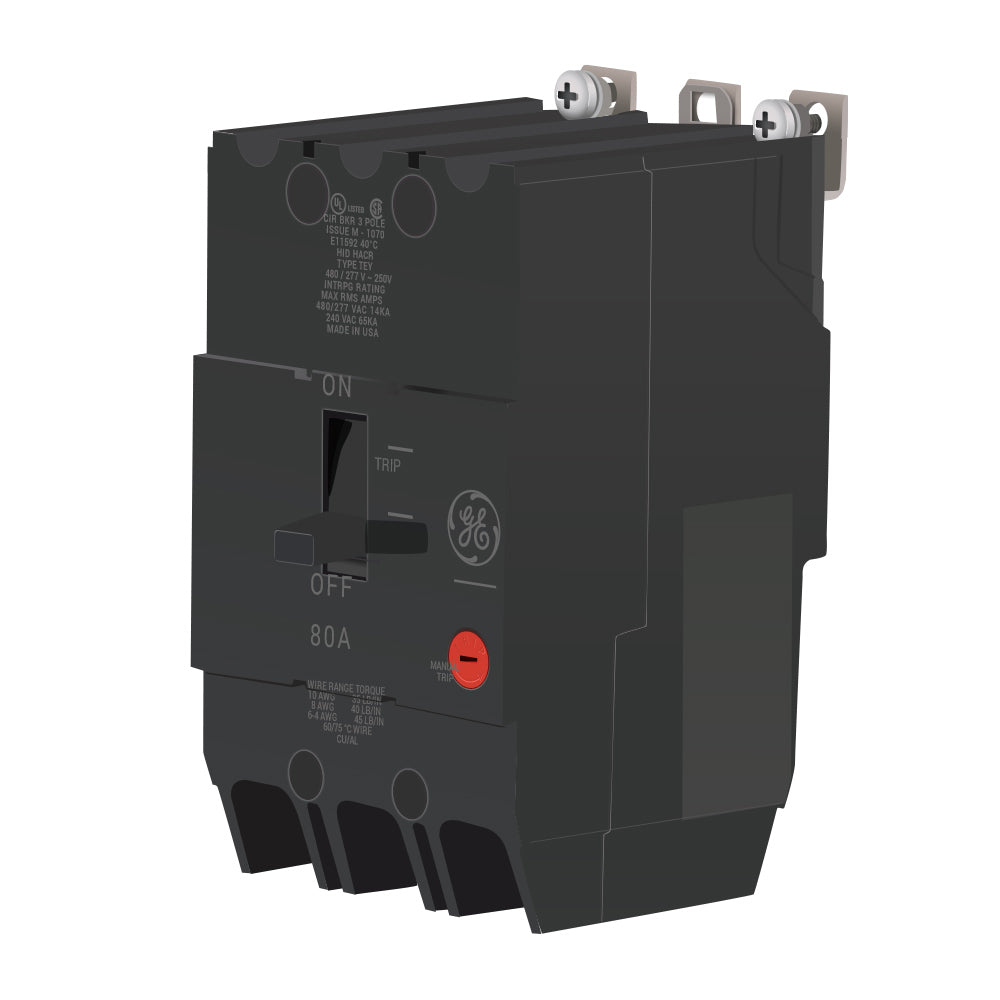

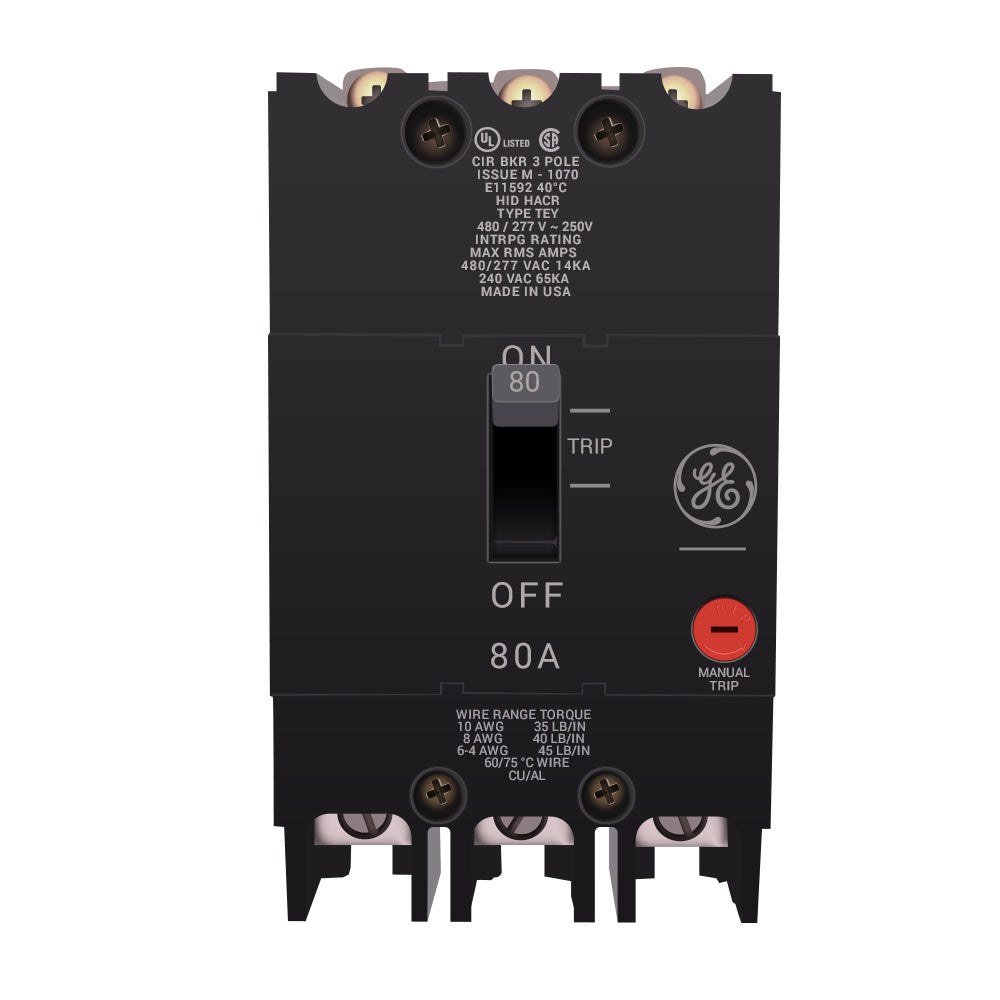

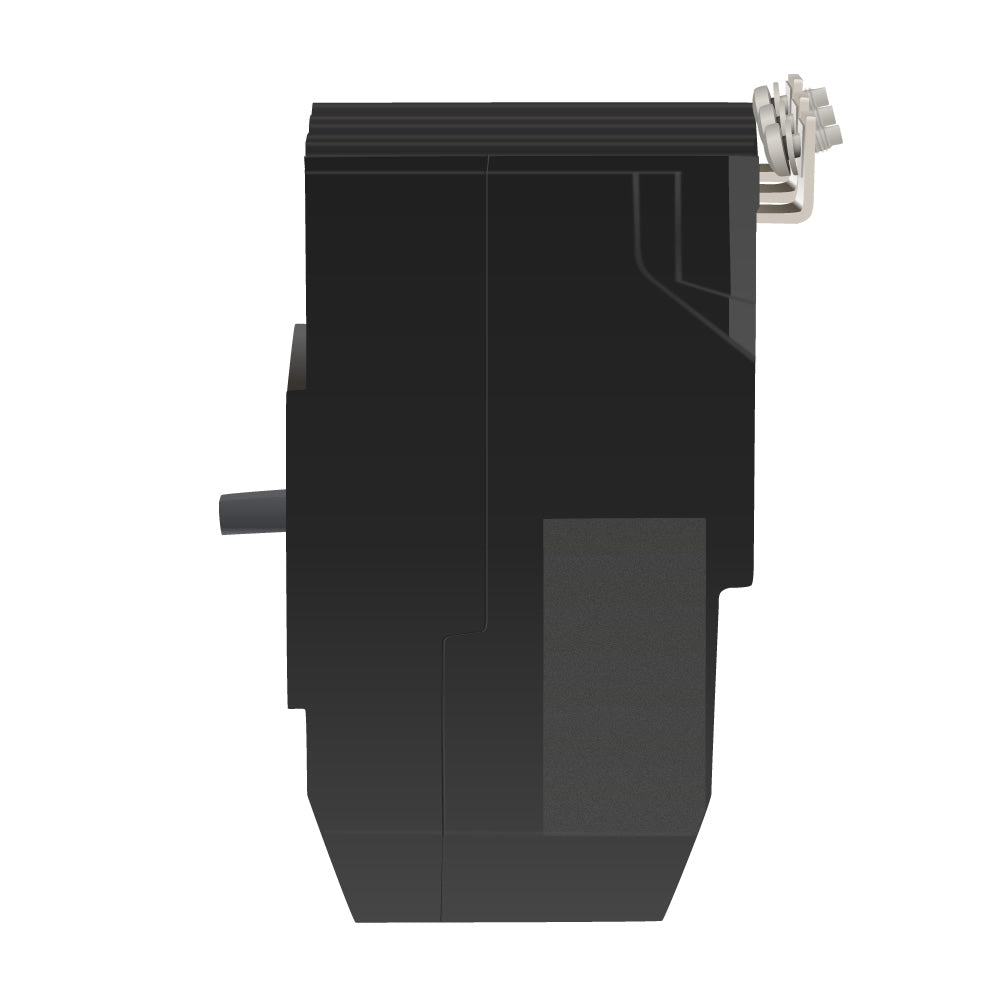

GE TEY380 Molded Case Circuit Breaker – 80A – 3-Pole – 277/480V – 14kA – Bolt-On – Q-Line TEY Series

The GE TEY380 is an 80A, 3-pole, 3-phase molded case circuit breaker from the Q-Line Type TEY Series. It is rated for 277/480V AC and provides a 14kA interrupting capacity at 480V.

The breaker features thermal-magnetic protection, a standard interrupting capacity, and a bolt-on mounting configuration. It is calibrated for operation at 40°C and is designed for compatible electrical distribution applications.

Specifications:

• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Series: Q-Line
• Type: TEY
• Catalog No.: TEY380
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 277/480V AC
• Interrupting Rating: 14kA at 480V
• Interrupting Capacity: Standard
• Trip Technology: Thermal-Magnetic
• Mounting Type: Bolt-On
• Calibration Temperature: 40°C
• Application: Electrical circuit protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEY380
• Catalog Number: TEY380
• Product Family: Q-Line
• Series: TEY
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: TEY380
• Breaker Configuration: 3-Pole, 80A
• upc:783164182255

Compatibility:

Designed for use with compatible GE Q-Line Type TEY electrical distribution equipment that accepts TEY Series bolt-on molded case circuit breakers. The TEY380 provides 80A, 3-pole circuit protection at 277/480V AC with a 14kA interrupting capacity at 480V.

Always verify the specific equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and installation requirements before installation.

Certifications:

• Q-Line Series
• TEY Type
• 80A Rating
• 3-Pole / 3-Phase
• 277/480V AC Rated
• 14kA Interrupting Capacity at 480V
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• 40°C Calibrated
• Bolt-On Mounting
