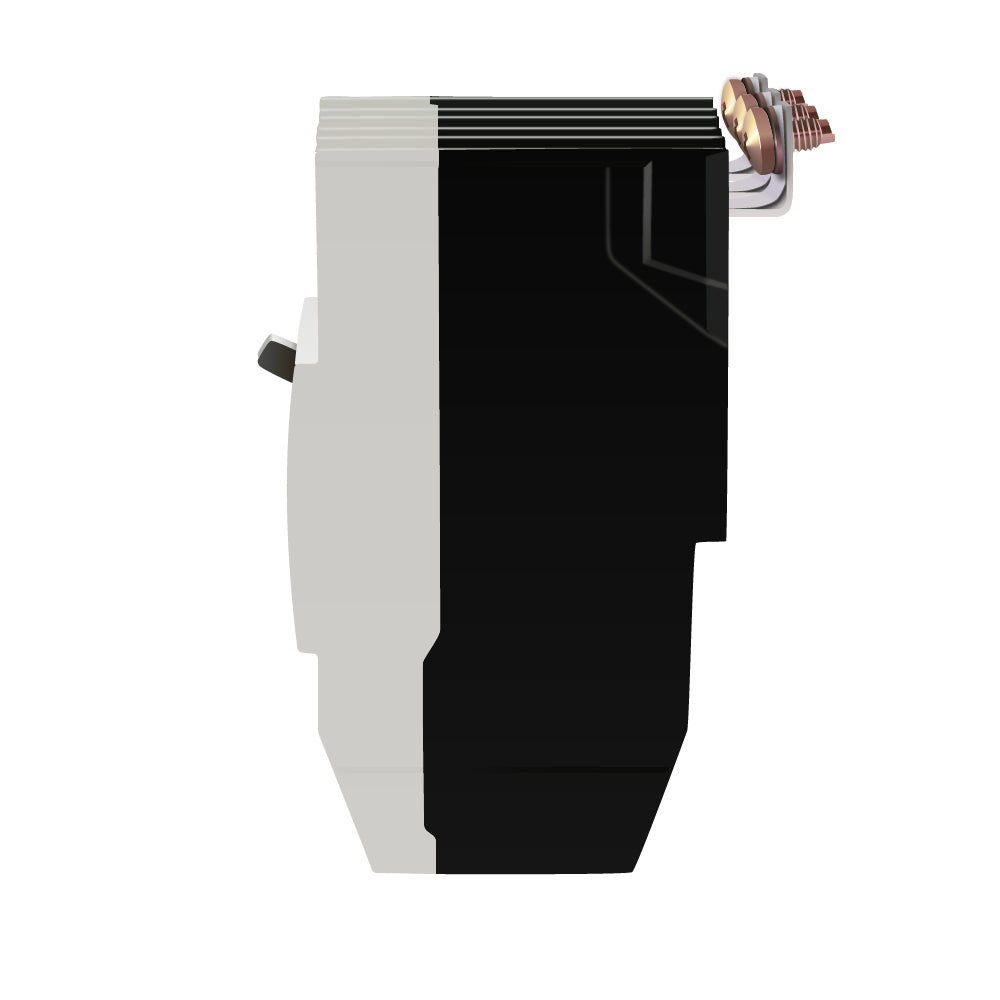

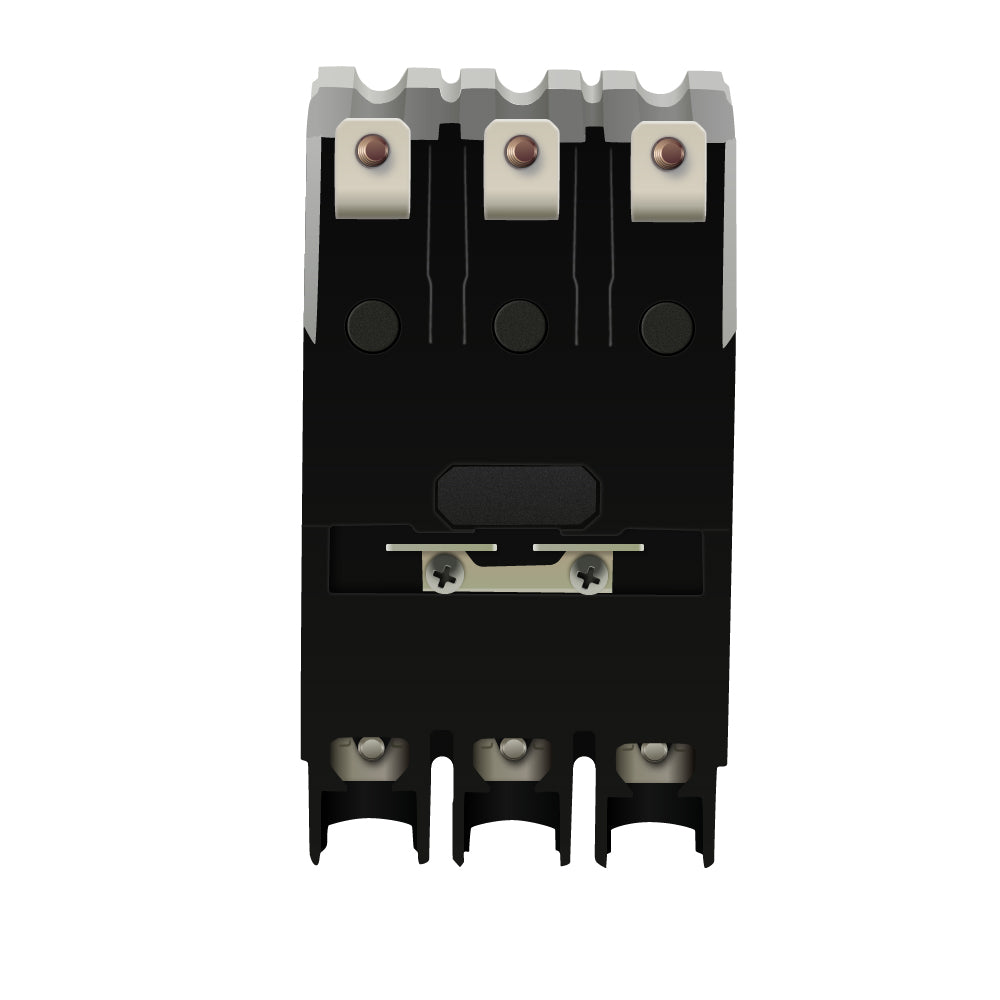

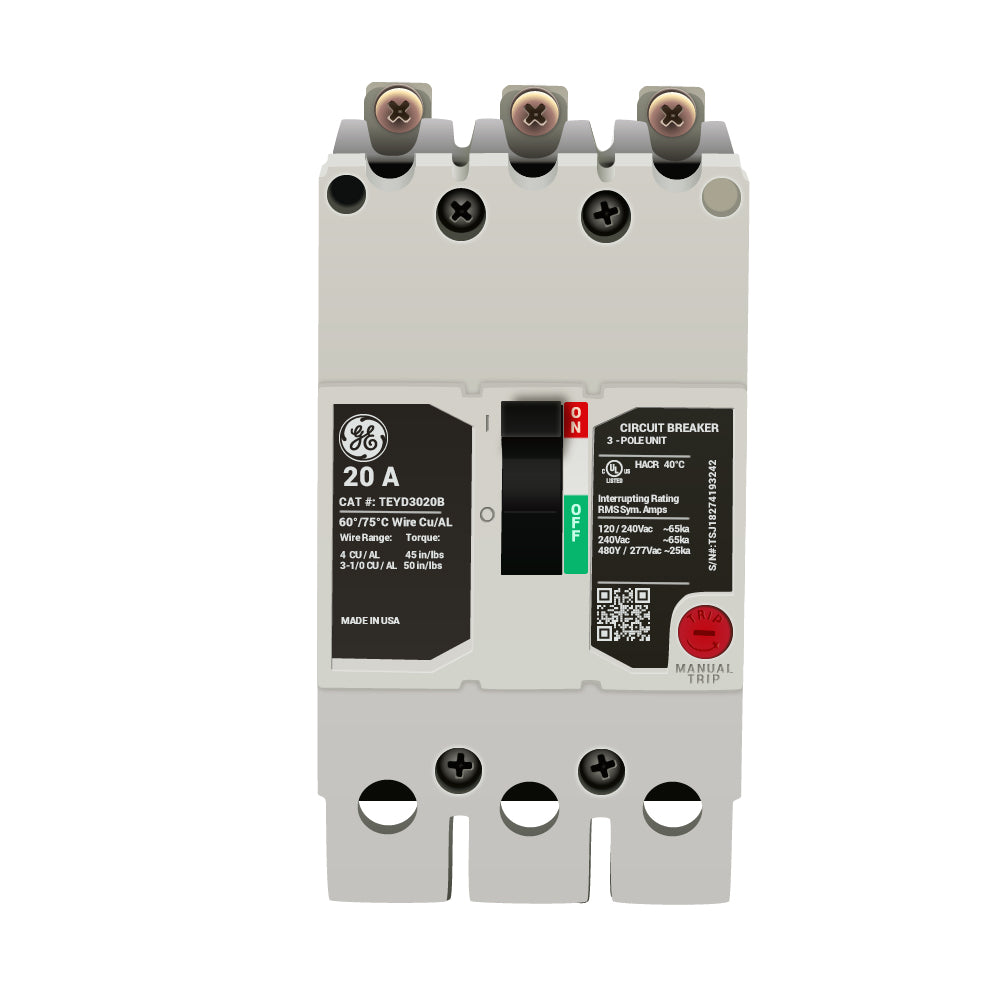

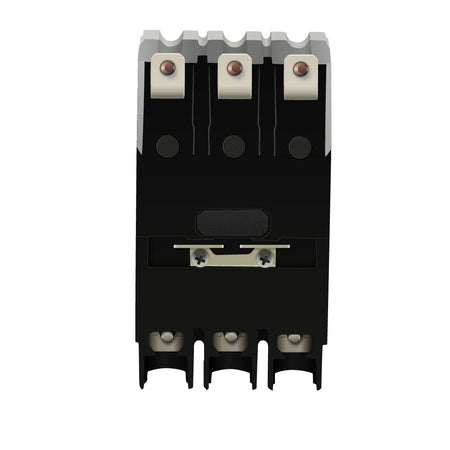

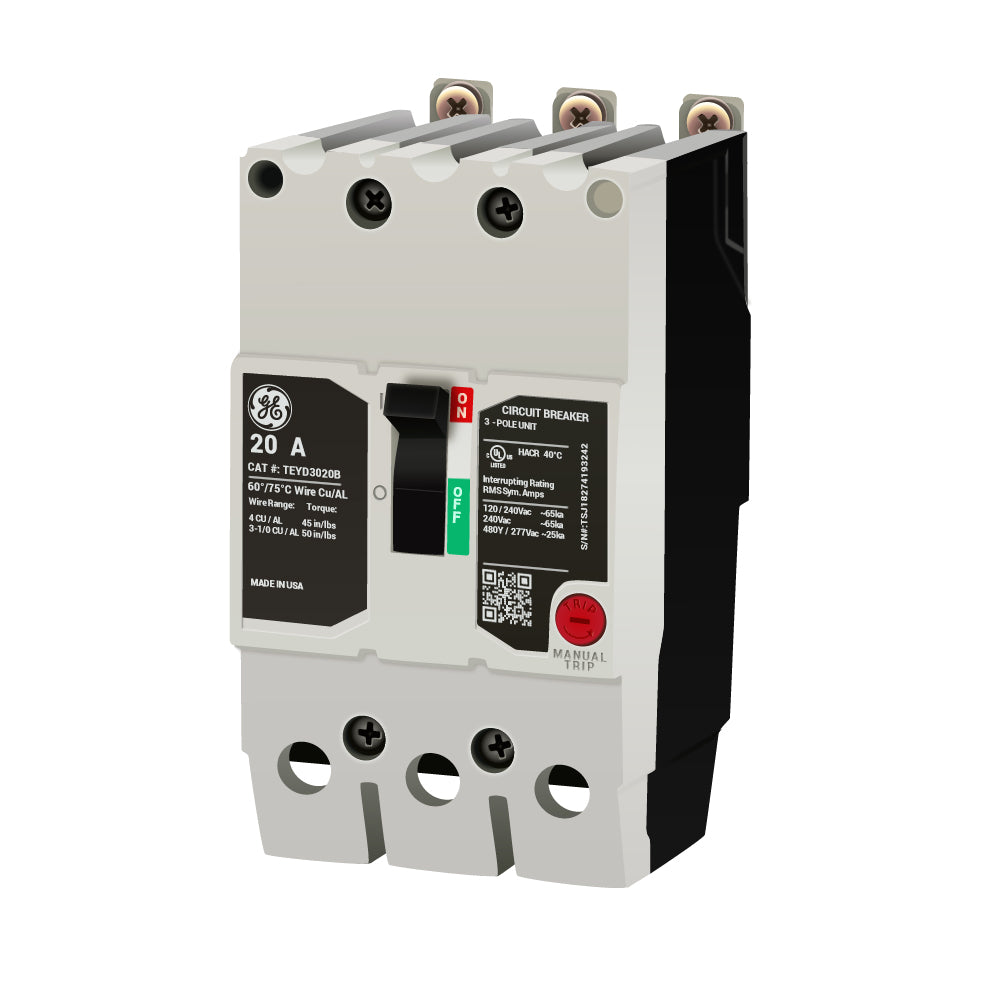

GE TEYD3020B Molded Case Circuit Breaker – 20A – 3-Pole – 480/277V – 25kA @ 480V – Bolt-On – TEYD Series

The GE TEYD3020B is a 20A, 3-pole molded case circuit breaker from the TEYD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and is designed for compatible electrical distribution applications.

The breaker is rated for 480/277V and has a 25kA interrupting rating at 480V. It features a bolt-on mounting configuration, a non-interchangeable trip, and load-side lug terminals.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Catalog No.: TEYD3020B
• Product Family: TEYD Series
• Type: TEYD
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Temperature Rating: 40°C
• Mounting Type: Bolt-On
• Trip Type: Non-Interchangeable
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Terminal Configuration: Load-Side Lug Terminals
• Application: Electrical Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYD3020B
• Catalog Number: TEYD3020B
• Product Family: GE TEYD Series
• Series: TEYD
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: TEYD3020B
• Breaker Configuration: 3-Pole, 20A
• Trip Configuration: Non-Interchangeable, LI
• upc:783164461725

Compatibility:

Designed for use with compatible GE TEYD Series electrical distribution equipment requiring a 3-pole, 20A molded case circuit breaker. The TEYD3020B uses bolt-on mounting and includes load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, terminal configuration, and installation requirements before installation.

Certifications:

• GE TEYD Series
• 20A Rated
• 3-Pole / 3-Phase
• 480/277V Rated
• 25kA @ 480V
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time & Instantaneous (LI) Trip
• Non-Interchangeable Trip
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Rated
