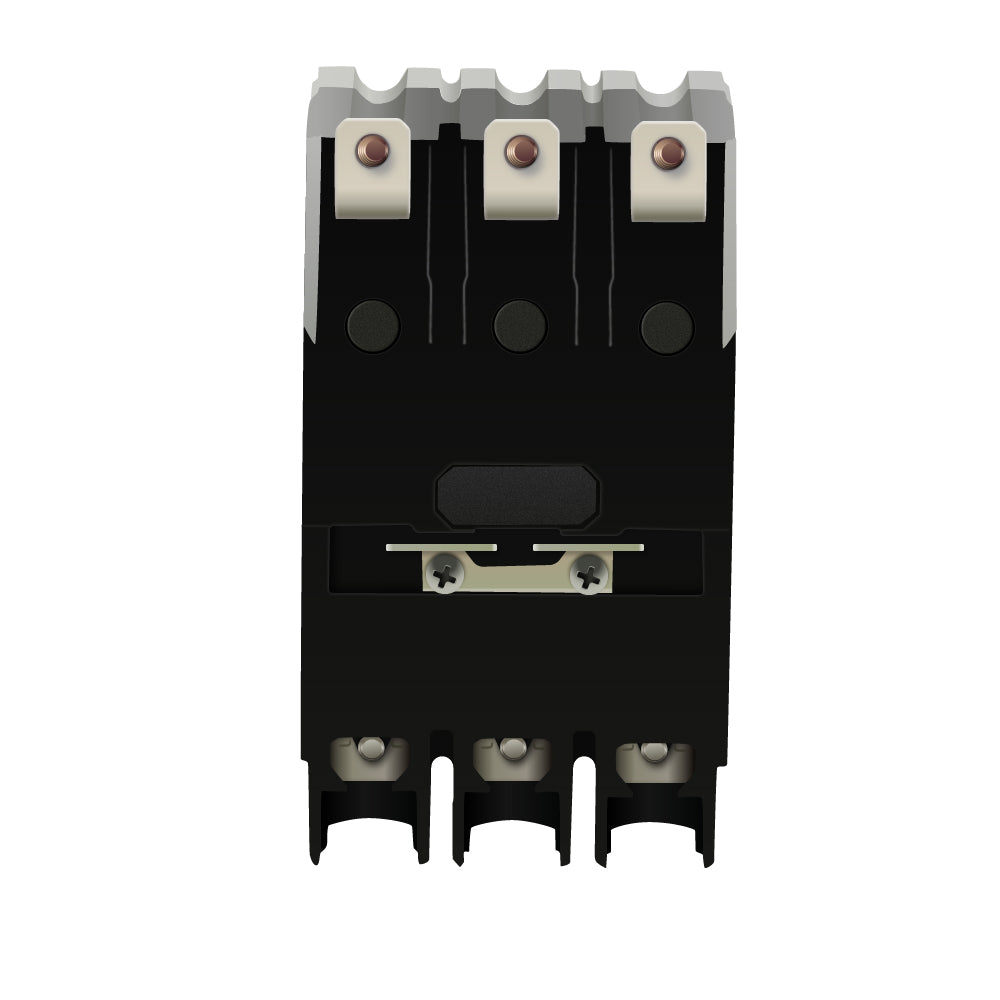

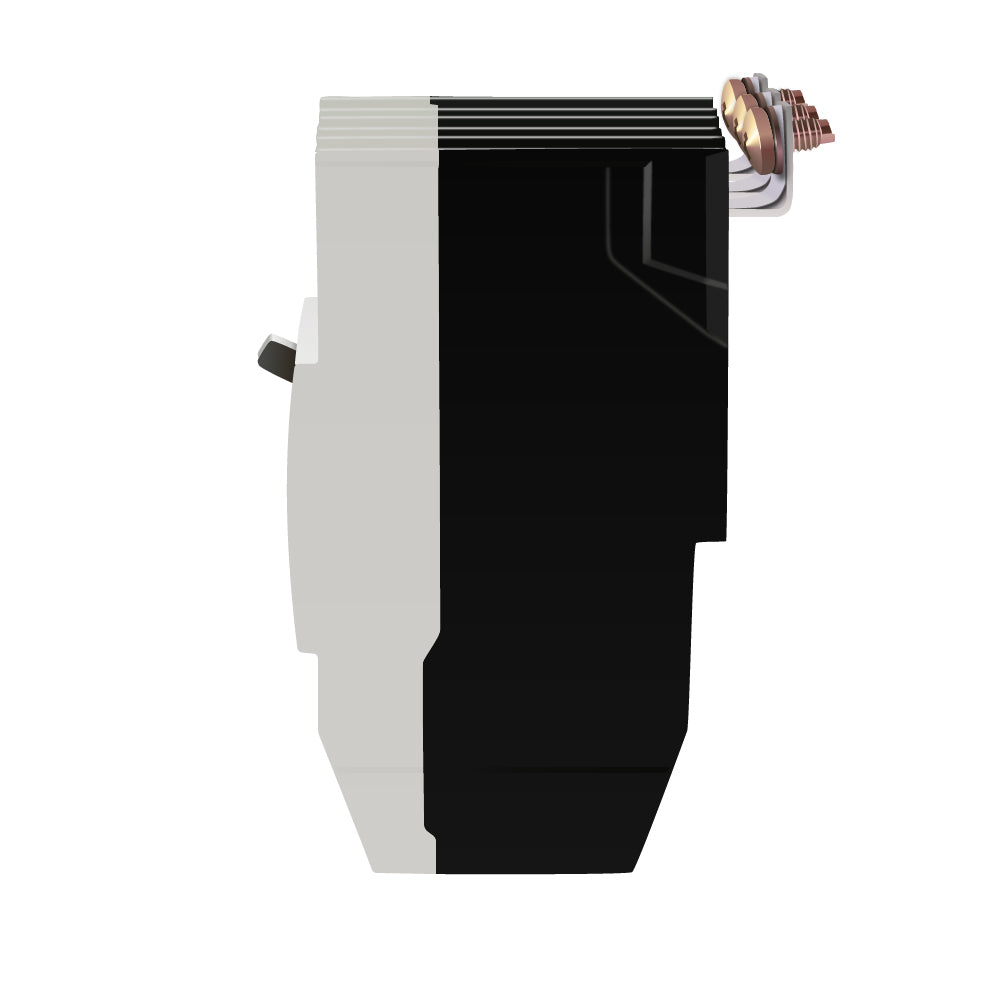

GE TEYD3030B Molded Case Circuit Breaker – 50A – 3-Pole – 480/277V – 25kA @ 480V – Bolt-On – TEYD Series

The GE TEYD3030B is a 50A, 3-pole molded case circuit breaker from the General Electric TEYD Series. It is rated for 480/277V and provides a 25kA interrupting rating at 480V. The breaker features thermal-magnetic protection, a bolt-on connection, and a non-interchangeable trip.

The TEYD3030B includes Long-Time and Instantaneous (LI) trip functions and load-side lug terminals. It is designed for compatible electrical distribution applications requiring standard interrupting capacity and thermal-magnetic overcurrent protection.

Specifications:

• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Series: TEYD
• Type: TEYD
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Trip Technology: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Bolt-On
• Terminal Configuration: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYD3030B
• Catalog Number: TEYD3030B
• Product Family: GE Molded Case Circuit Breakers
• Series: TEYD
• Type: TEYD
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: TEYD3030B
• Breaker Configuration: 3-Pole, 50A
• upc:783164461749

Compatibility:

Designed for use with compatible GE TEYD Series electrical distribution equipment that accepts bolt-on molded case circuit breakers. The TEYD3030B is suitable for 3-phase, 480/277V applications requiring a 50A thermal-magnetic breaker with a 25kA interrupting rating at 480V.

Always verify the specific panelboard or electrical distribution equipment, approved breaker type, system voltage, pole configuration, interrupting rating, terminal arrangement, and installation requirements before installation.

Certifications:

• TEYD Series
• 50A Rating
• 3-Pole / 3-Phase
• 480/277V Rated
• 25kA @ 480V
• Thermal-Magnetic Protection
• Standard Interrupting Capacity
• Bolt-On Connection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip
• Load-Side Lug Terminals
• 40°C Rated
