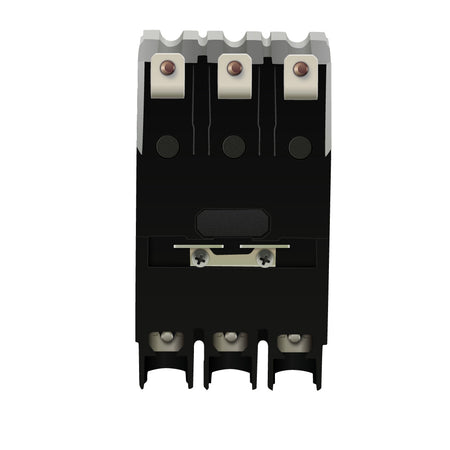

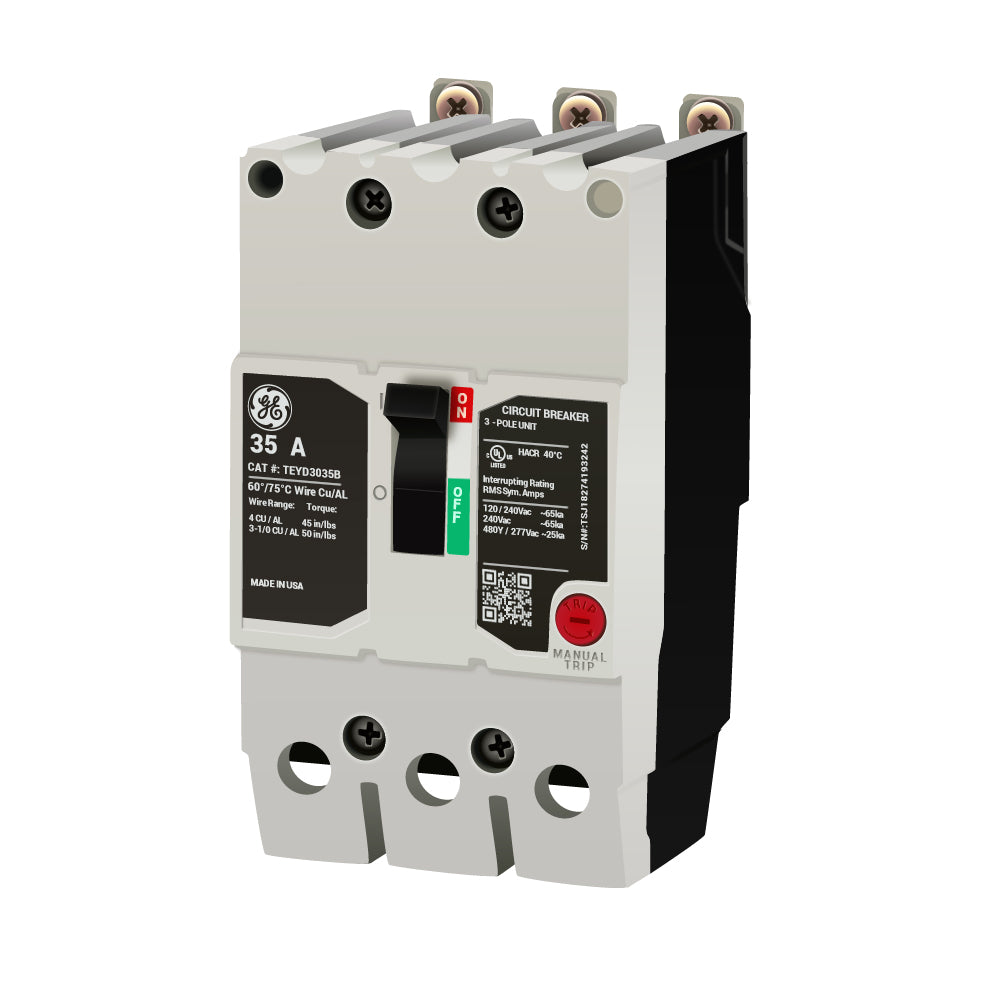

GE TEYD3035B Molded Case Circuit Breaker – 35A – 3-Pole / 3-Phase – 480/277V AC – 25kA @ 480V – Bolt-On – TEYD Series

The GE TEYD3035B is a 35A, 3-pole, 3-phase molded case circuit breaker from the General Electric TEYD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The TEYD3035B is rated for 480/277V AC and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, includes load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYD Series
• Series: TEYD
• Type: TEYD
• Catalog No.: TEYD3035B
• Current Rating: 35A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V AC
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYD3035B
• Catalog Number: TEYD3035B
• Model: TEYD3035B
• Product Family: GE TEYD Circuit Breakers
• Series: TEYD
• Type: TEYD
• Brand: General Electric (GE)
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 35A
• UPC:783164461756

Compatibility:

Designed for use with compatible GE TEYD Series electrical distribution equipment that accepts TEYD Series bolt-on molded case circuit breakers. The TEYD3035B provides 35A, 3-pole thermal-magnetic overcurrent protection for compatible 480/277V AC electrical distribution applications.

The breaker features a non-interchangeable LI trip, bolt-on mounting, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• TEYD Series
• 35A Rated
• 3-Pole / 3-Phase
• 480/277V AC Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Rated
