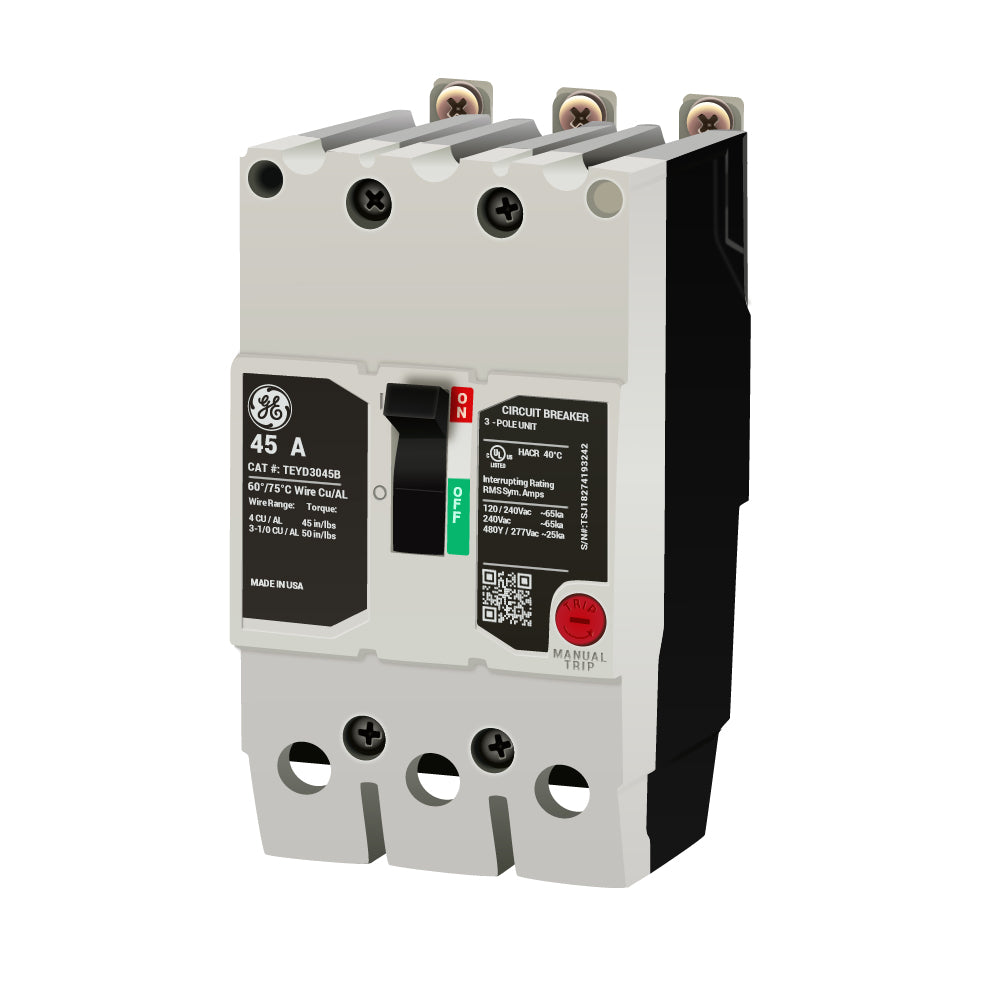

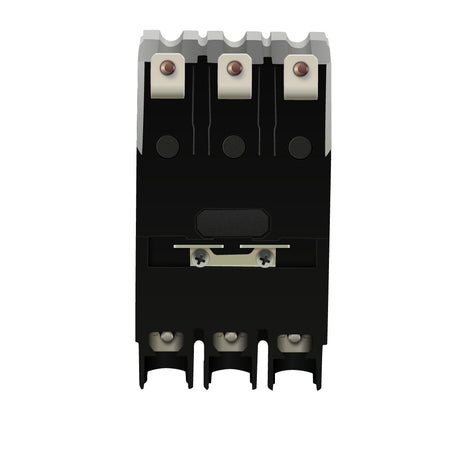

GE TEYD3045B Molded Case Circuit Breaker – 45A – 3-Pole / 3-Phase – 480/277V AC – 25kA @ 480V – Bolt-On – TEYD Series

The General Electric (GE) TEYD3045B is a 45A, 3-pole, 3-phase molded case circuit breaker from the GE TEYD Series. It features thermal-magnetic protection with a non-interchangeable Long-Time and Instantaneous (LI) trip.

The TEYD3045B is rated for 480/277V AC and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It features a bolt-on mounting configuration and includes load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYD Series
• Series: TEYD
• Type: TEYD
• Catalog No.: TEYD3045B
• Current Rating: 45A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V AC
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYD3045B
• Catalog Number: TEYD3045B
• Model: TEYD3045B
• Product Family: GE TEYD Circuit Breakers
• Series: TEYD
• Type: TEYD
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 45A
• Trip Configuration: Non-Interchangeable LI
• UPC:783164461770

Compatibility:

Designed for use with compatible GE TEYD Series electrical distribution equipment that accepts TEYD Series bolt-on molded case circuit breakers. The TEYD3045B provides 45A, 3-pole thermal-magnetic protection for compatible 480/277V AC electrical distribution applications.

The breaker includes load-side lug terminals and a non-interchangeable LI trip.
