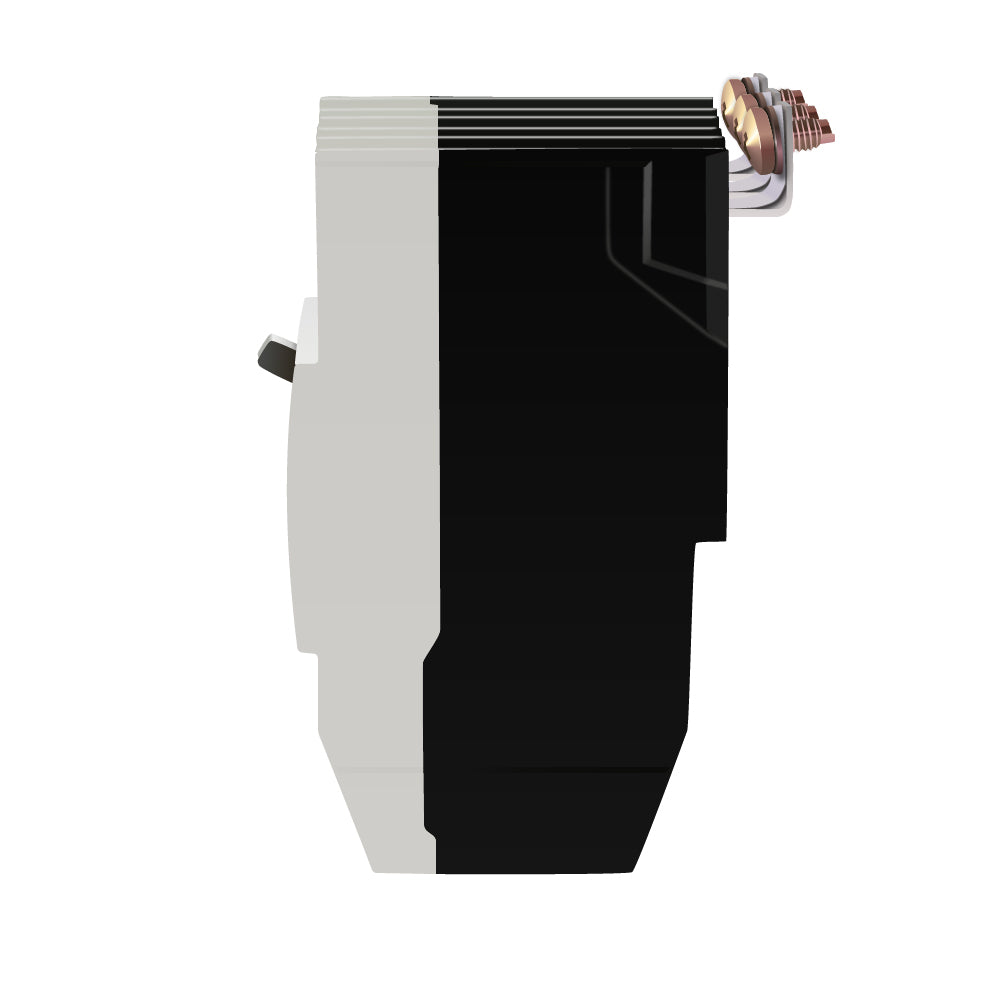

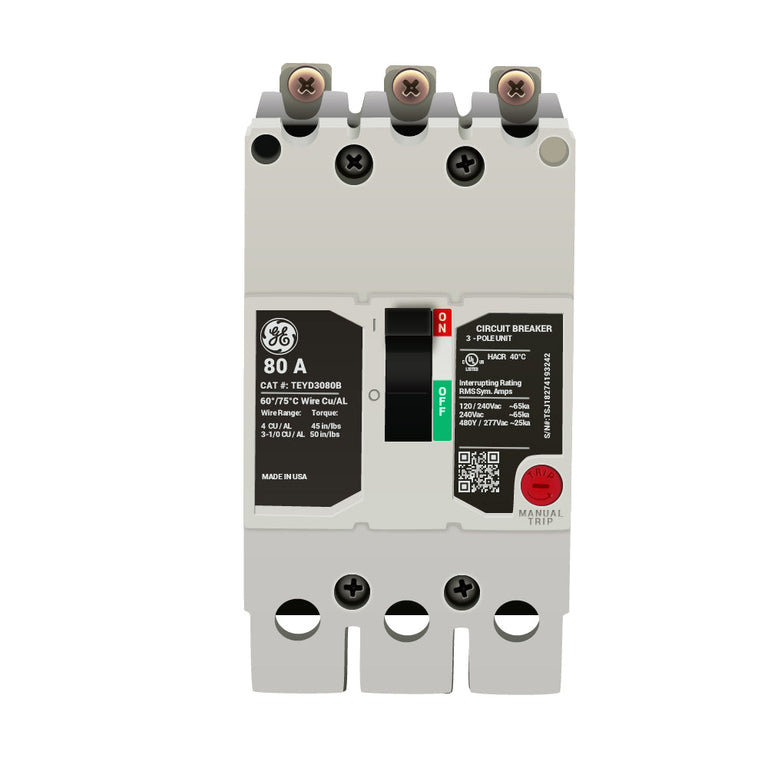

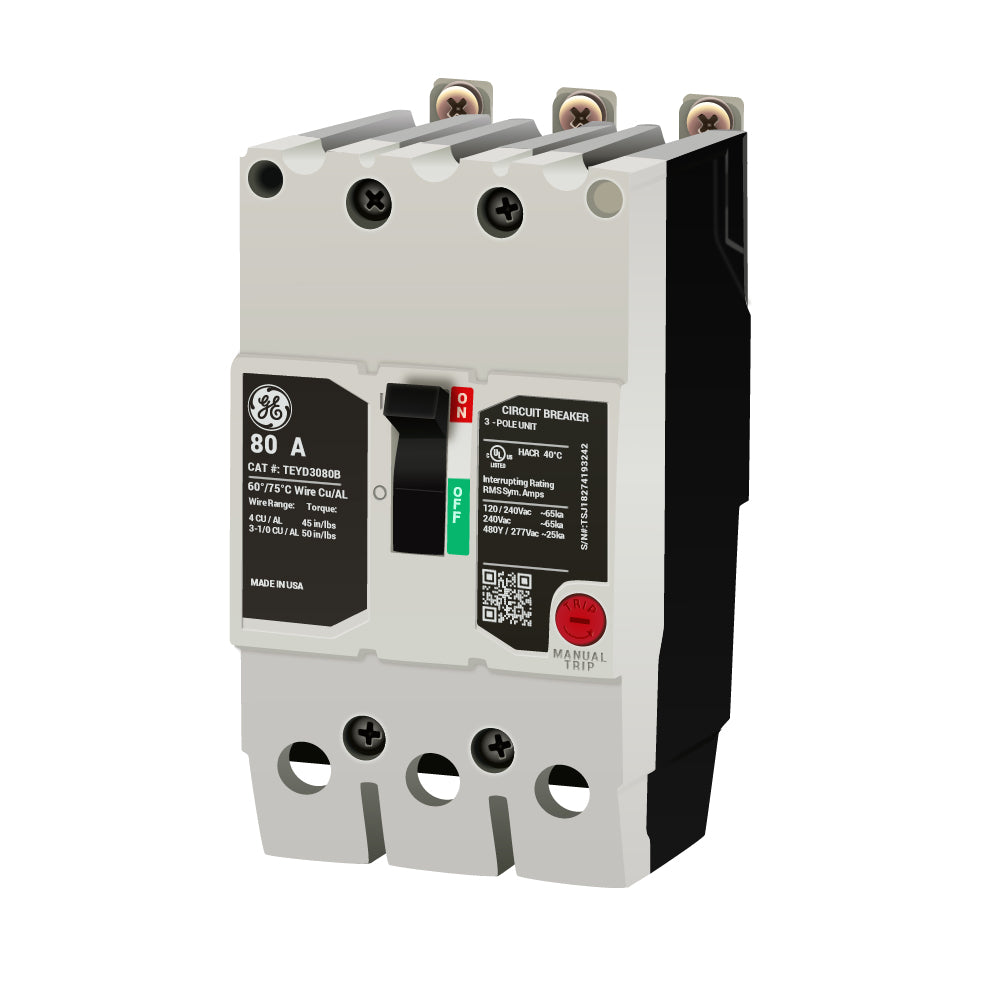

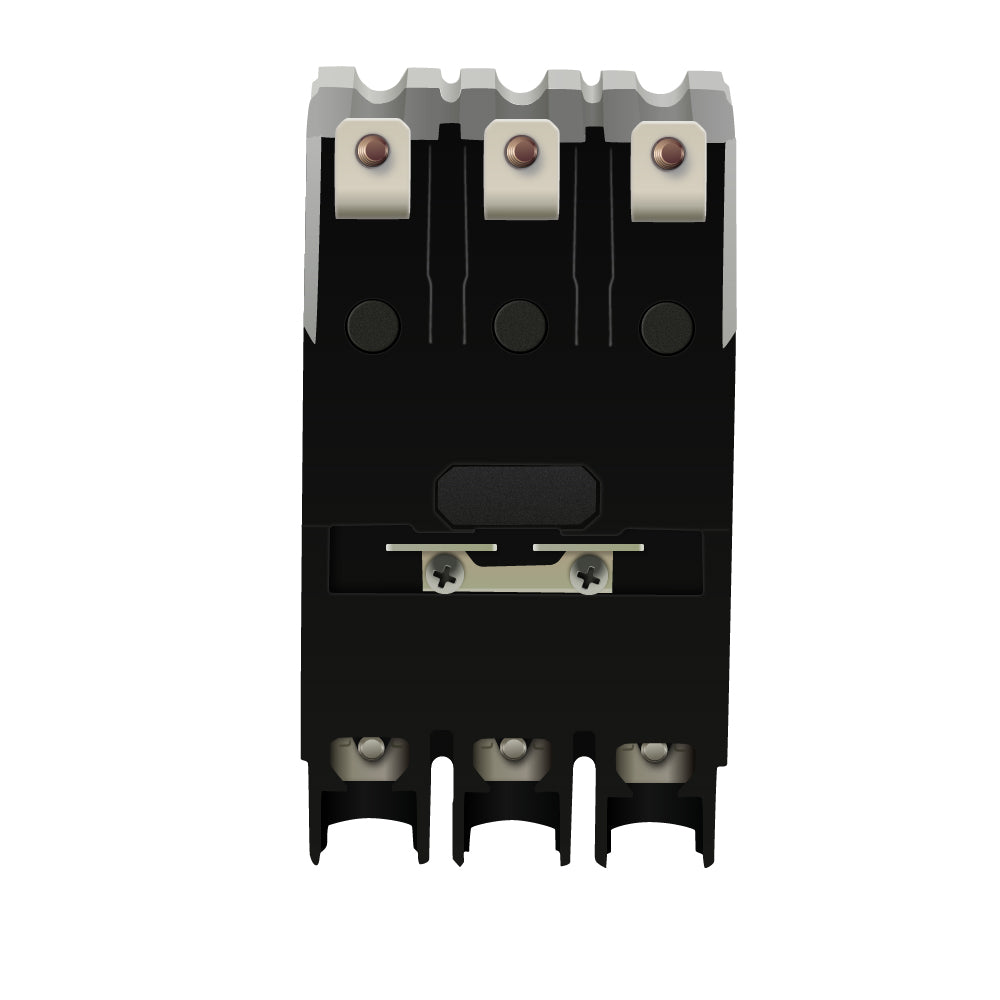

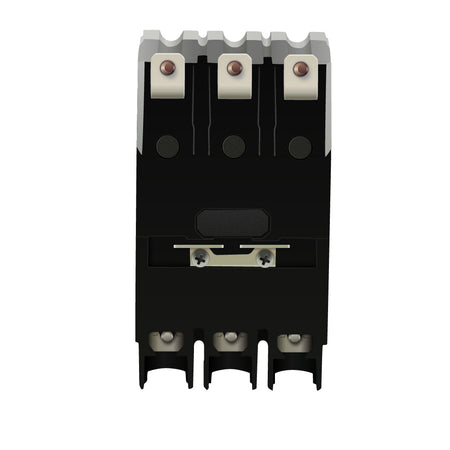

GE TEYD3080B Molded Case Circuit Breaker – 80A – 3-Pole / 3-Phase – 480/277V – 25kA @ 480V – Bolt-On – TEYD Series

The GE TEYD3080B is an 80A, 3-pole, 3-phase molded case circuit breaker from the General Electric TEYD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The TEYD3080B is rated for 480/277V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It features a bolt-on mounting configuration, load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYD
• Series: TEYD
• Type: TEYD
• Catalog No.: TEYD3080B
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYD3080B
• Catalog Number: TEYD3080B
• Model: TEYD3080B
• Product Family: GE TEYD Circuit Breakers
• Series: TEYD
• Type: TEYD
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• UPC:783164461817

Compatibility:

Designed for use with compatible GE TEYD Series electrical distribution equipment that accepts TEYD Series molded case circuit breakers. The TEYD3080B provides 80A, 3-pole thermal-magnetic overcurrent protection for compatible 480/277V electrical distribution applications.

The breaker features a non-interchangeable LI trip, bolt-on mounting, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• TEYD Series
• 80A Rated
• 3-Pole / 3-Phase
• 480/277V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Rated
