TEYF3100 - General Electric Bolt-on Panelboard 480V 100A 3 pole circuit breaker 18kA@480V
Couldn't load pickup availability
Ask an expert
Description
TEYF3100

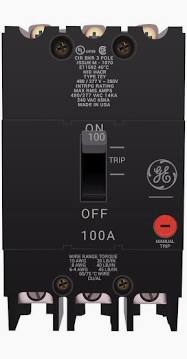

The General Electric TEYF3100 is a Molded Case Circuit Breaker. This type TEYF circuit breaker is a member of The TEYF Series family. The TEYF3100 is a 3 pole, 480 Volt, 100 amp rated circuit breaker, with an AIC rating of 18kA@480V. The TEYF3100 is manufactured by General Electric. The TEYF3100 uses a Bolt-on Panelboard connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: TEYF3100
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TEYF Series
- Type : TEYF
- Voltage : 480
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-on Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783164388596
- GTIN : 00783164388596
- Country of Origin : United States
- Dimensions : 3 in x 5-1/4 in
- Weight : 2
- Panel Type : GE AE Lighting Panels
- Standards : CSA, UL
- Certification : CSA, UL
- Type Circuit Breakers
- Vendor GE
- Brand GE
- Electrical Rating Bolt-On - 100 Amp - 3 Pole - 480 Volt
