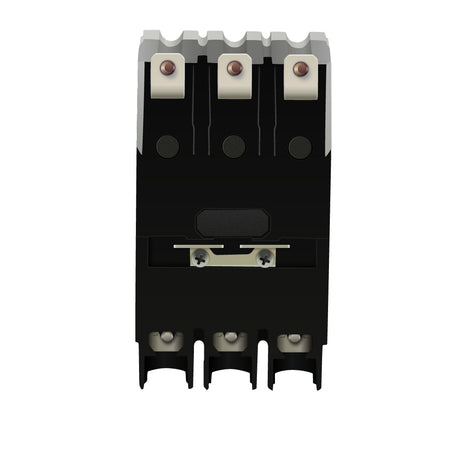

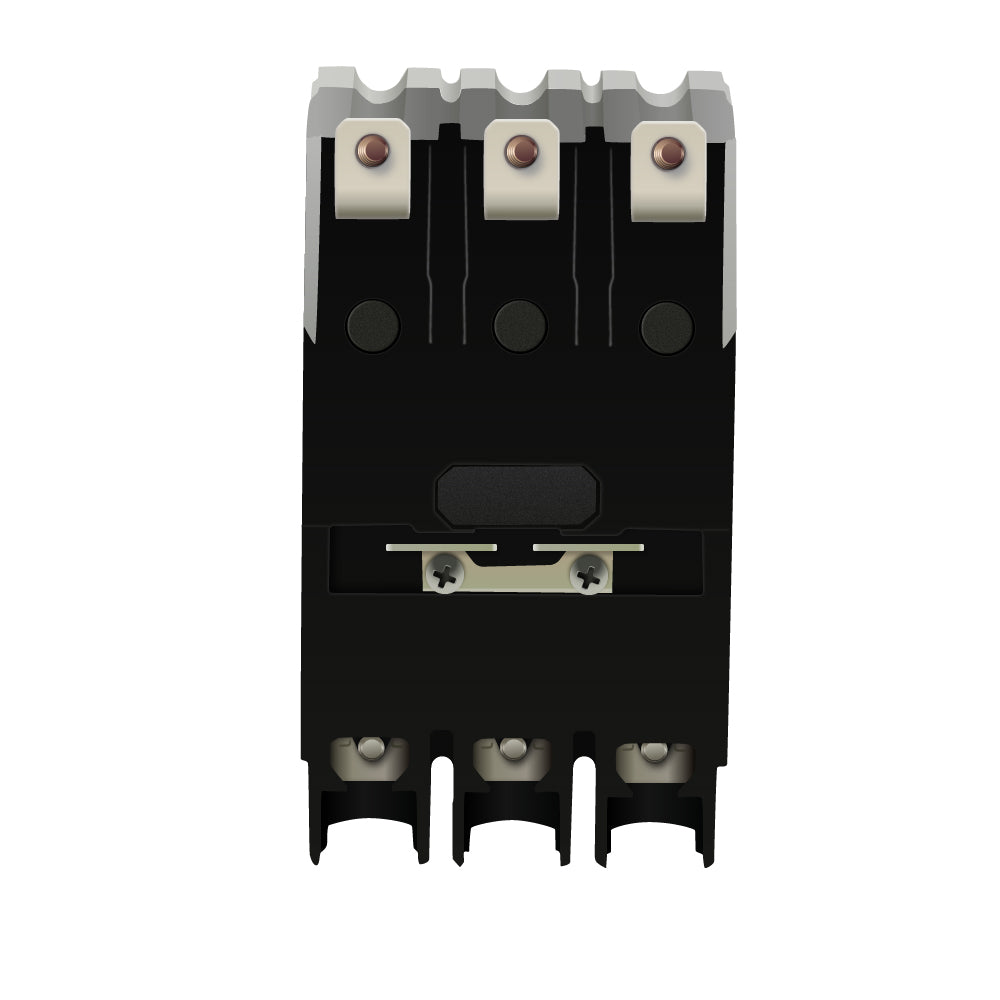

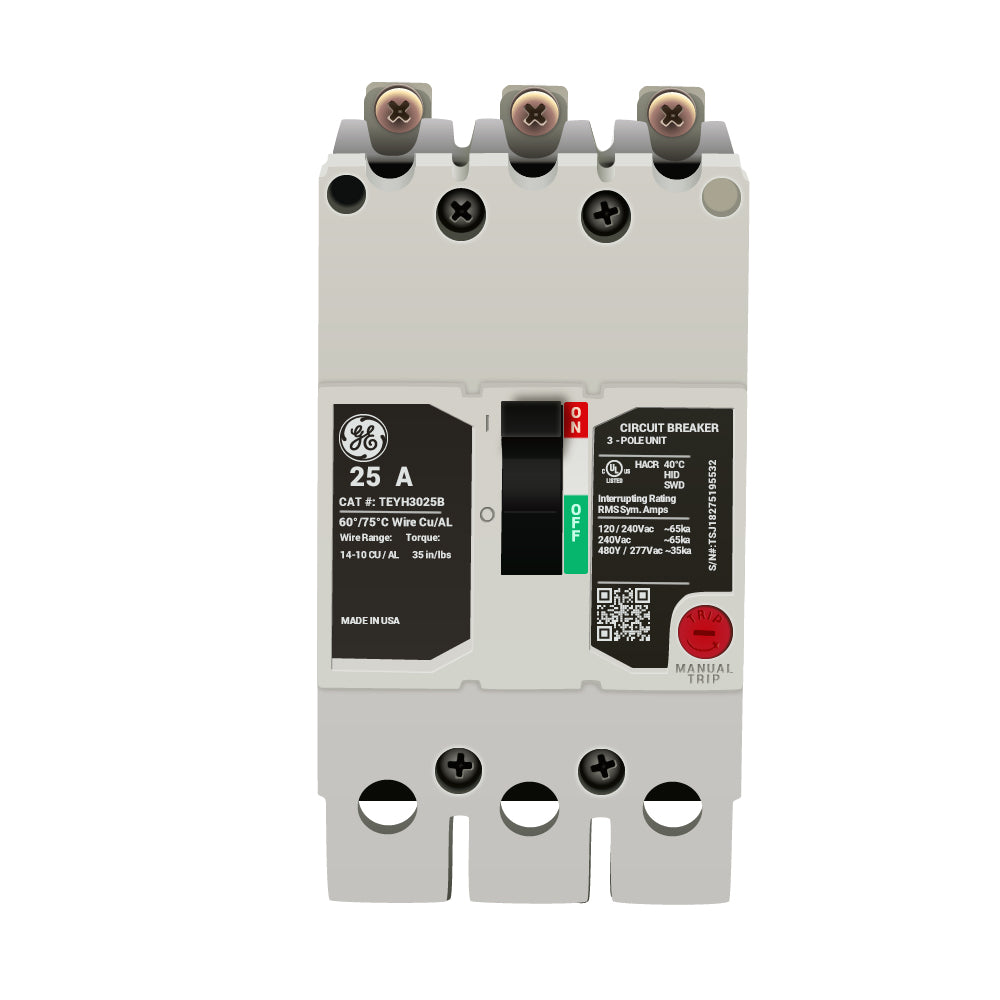

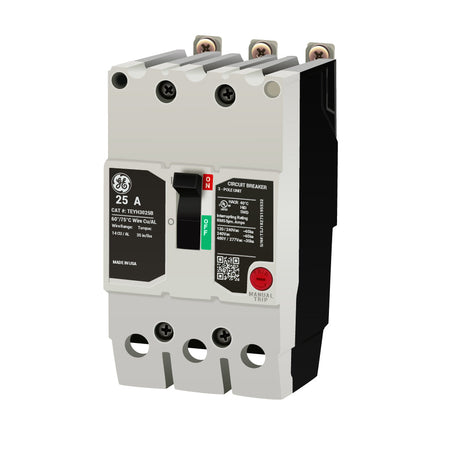

GE TEYH3025B Molded Case Circuit Breaker – 25A – 3-Pole / 3-Phase – 277/480V AC –Bolt-On – TEYH Series

The GE TEYH3025B is a 25A, 3-pole molded case circuit breaker from the GE TEYH Series. It is designed for compatible electrical distribution and panelboard applications and provides thermal-magnetic protection.

The breaker is rated for 277/480V AC and features non-interchangeable Long-Time and Instantaneous (LI) trip functions. It uses a bolt-on connection and is designed for panelboard mounting.

Product identification note: The supplied heading describes the product as a “Motor Starter Overload Relay,” while the detailed product information identifies it as a 3-pole molded case circuit breaker. This listing follows the detailed product specifications.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYH Series
• Series: TEYH
• Catalog No.: TEYH3025B
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 277/480V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting Type: Panelboard Mounted
• Connection Type: Bolt-On
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYH3025B
• Catalog Number: TEYH3025B
• Model: TEYH3025B
• Product Family: GE TEYH Circuit Breakers
• Series: TEYH
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 25A
• Trip Configuration: Non-Interchangeable Long-Time and Instantaneous
• UPC:783164462135

Compatibility:

Designed for use with compatible GE TEYH Series panelboard and electrical distribution equipment that accepts TEYH Series bolt-on molded case circuit breakers.

The TEYH3025B provides 25A, 3-pole thermal-magnetic protection for compatible 277/480V AC applications. Always verify the specific panelboard model, approved breaker type, system voltage, available fault current, pole configuration, trip characteristics, mounting arrangement, terminal requirements, and installation specifications before installation.

Certifications:

• GE TEYH Series
• 25A Rated
• 3-Pole / 3-Phase
• 277/480V AC Rated
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Panelboard Mounted
• Bolt-On Connection
