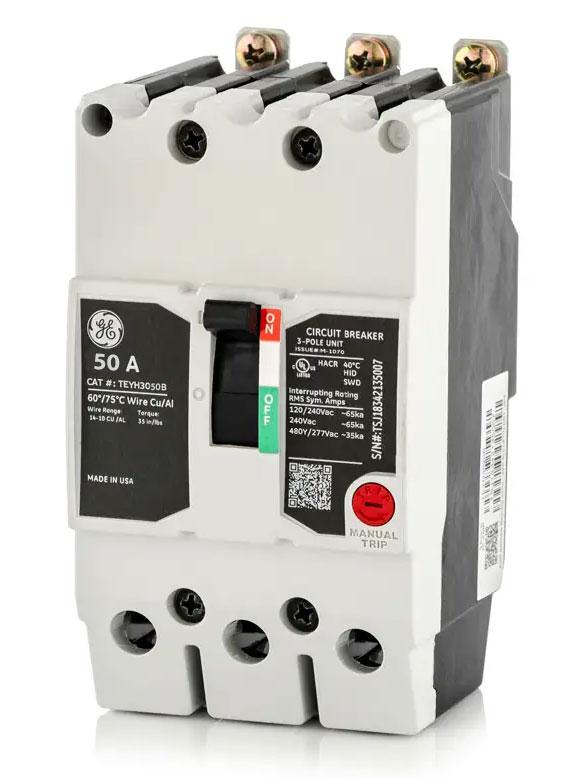

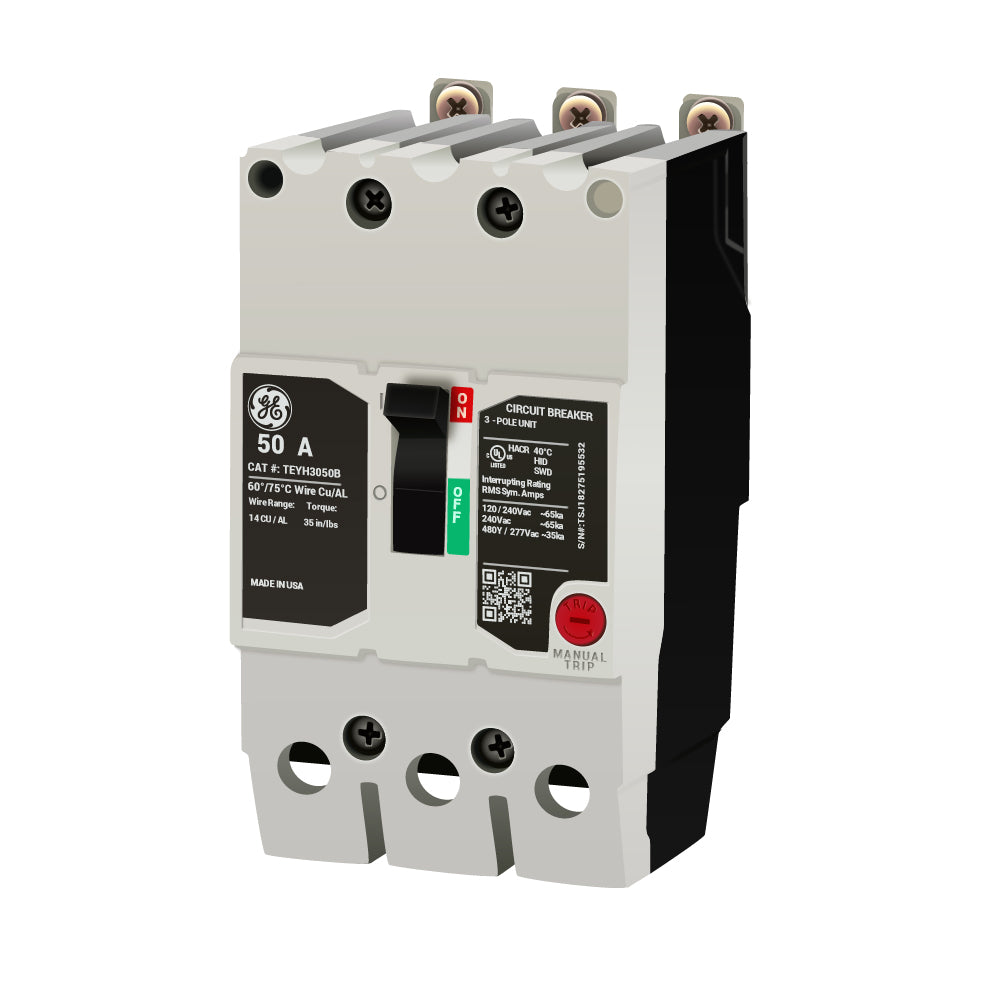

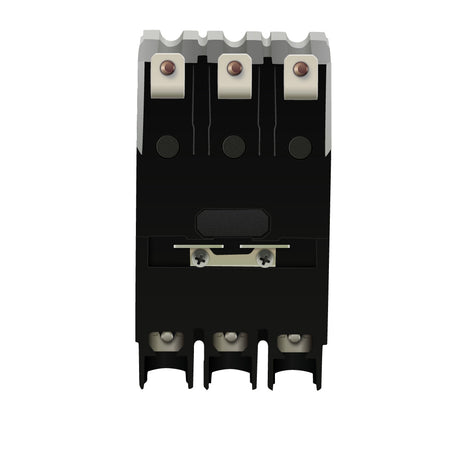

GE TEYH3050B Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 480/277V – 35kA @ 480V – Bolt-On – TEYH Series

The GE TEYH3050B is a 50A, 3-pole, 3-phase molded case circuit breaker from the General Electric TEYH Series Type TEYH. It is designed to provide overload and short-circuit protection for compatible electrical distribution and control systems.

The TEYH3050B is rated for 480/277V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It features thermal-magnetic protection, a non-interchangeable trip, bolt-on mounting, and load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYH Series
• Series: TEYH
• Type: TEYH
• Catalog No.: TEYH3050B
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C
• Application: Overload and Short-Circuit Protection for Electrical Distribution and Control Systems

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYH3050B
• Catalog Number: TEYH3050B
• Model: TEYH3050B
• Product Family: GE TEYH Circuit Breakers
• Series: TEYH
• Type: TEYH
• Brand: General Electric (GE)
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• UPC:783164462180

Compatibility:

Designed for use with compatible GE TEYH Series electrical distribution and control equipment that accepts TEYH Series bolt-on molded case circuit breakers. The TEYH3050B provides 50A, 3-pole thermal-magnetic overcurrent protection for compatible 480/277V applications.

The breaker features a non-interchangeable trip, bolt-on mounting, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, frame compatibility, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
