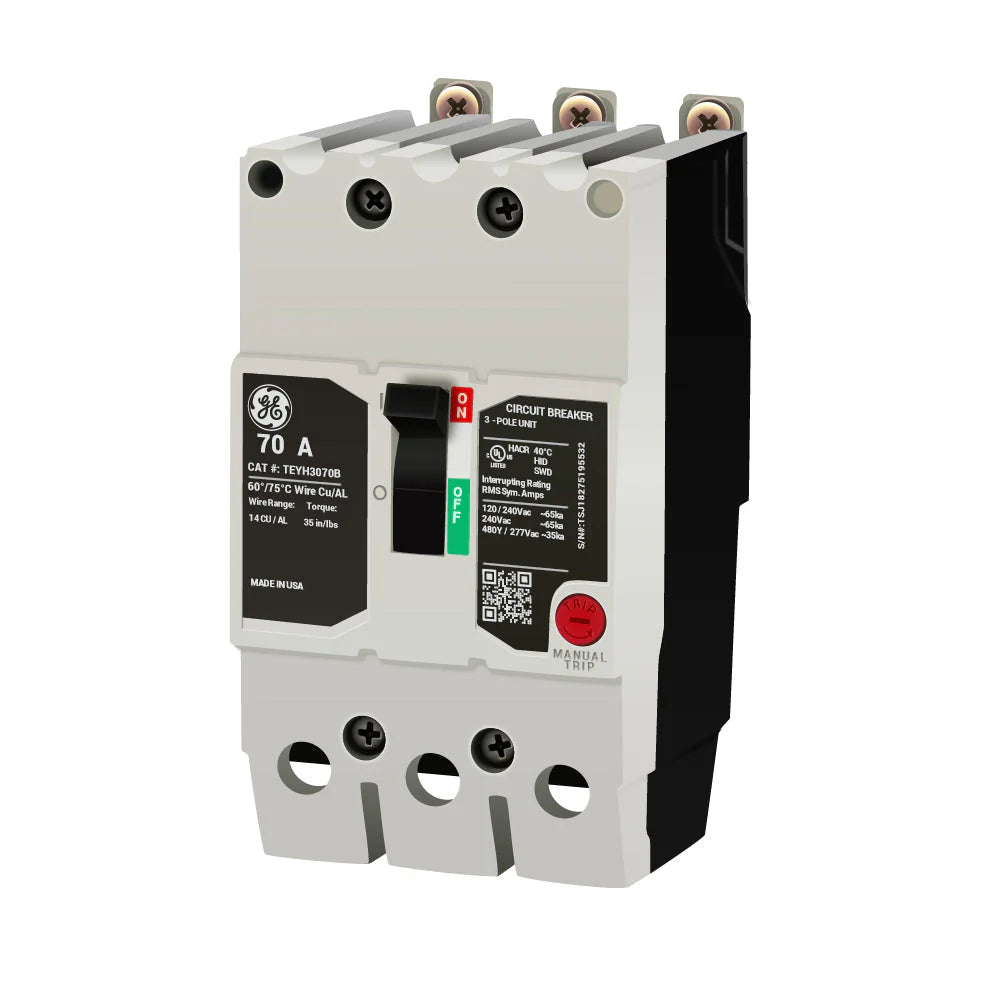

GE TEYH3070B Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 480/277V – 35kA @ 480V – Bolt-On – TEYH Series

The GE TEYH3070B is a 70A, 3-pole, 3-phase molded case circuit breaker from the GE TEYH Series, Type TEYH. It features thermal-magnetic protection with a non-interchangeable Long-Time and Instantaneous (LI) trip.

The breaker is rated for 480/277V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on connection, includes load-side lug terminals, and is calibrated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYH Series
• Series: TEYH
• Type: TEYH
• Catalog No.: TEYH3070B
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYH3070B
• Catalog Number: TEYH3070B
• Model: TEYH3070B
• Product Family: GE TEYH Molded Case Circuit Breakers
• Series: TEYH
• Type: TEYH
• Brand: General Electric (GE)
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• UPC:783164462203

Compatibility:

Designed for use with compatible GE TEYH Series electrical distribution equipment that accepts TEYH Series bolt-on molded case circuit breakers. The TEYH3070B provides 70A, 3-pole thermal-magnetic protection for compatible 480/277V electrical distribution applications.

The breaker features a non-interchangeable LI trip, bolt-on mounting, and load-side lug terminals.
