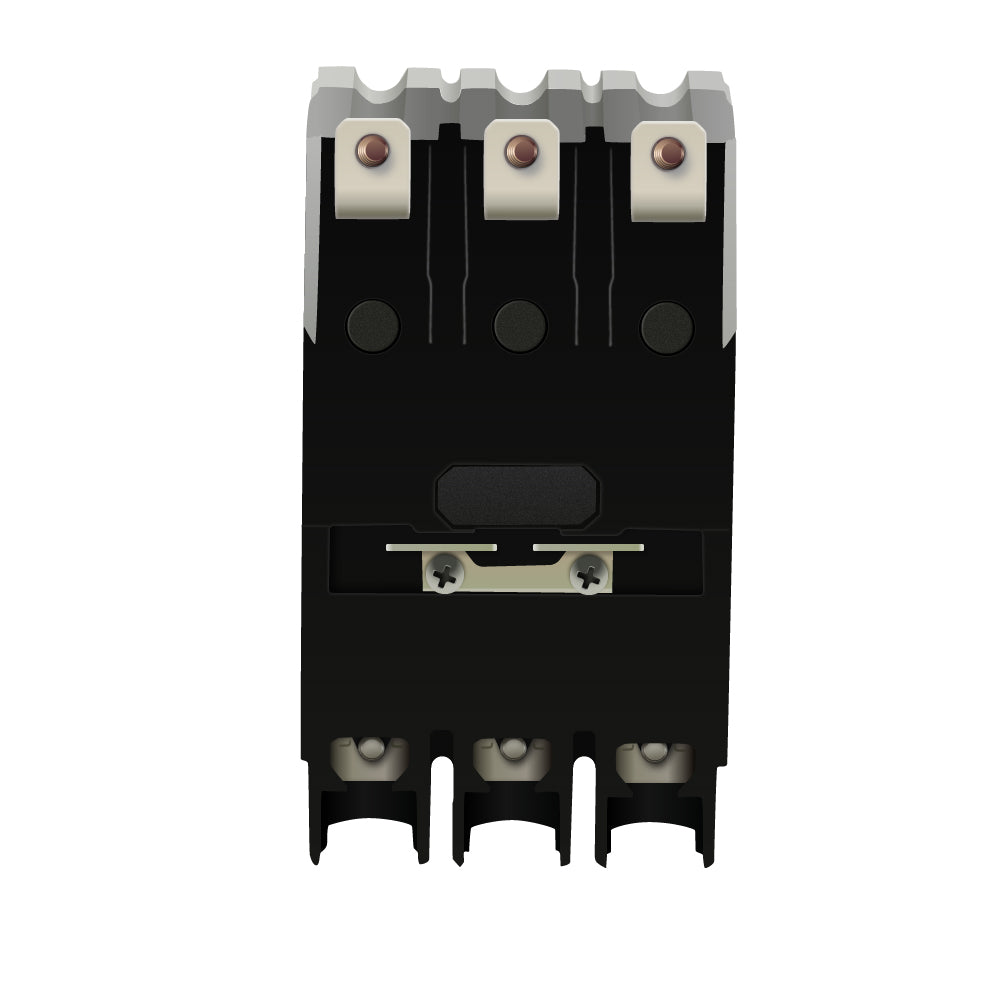

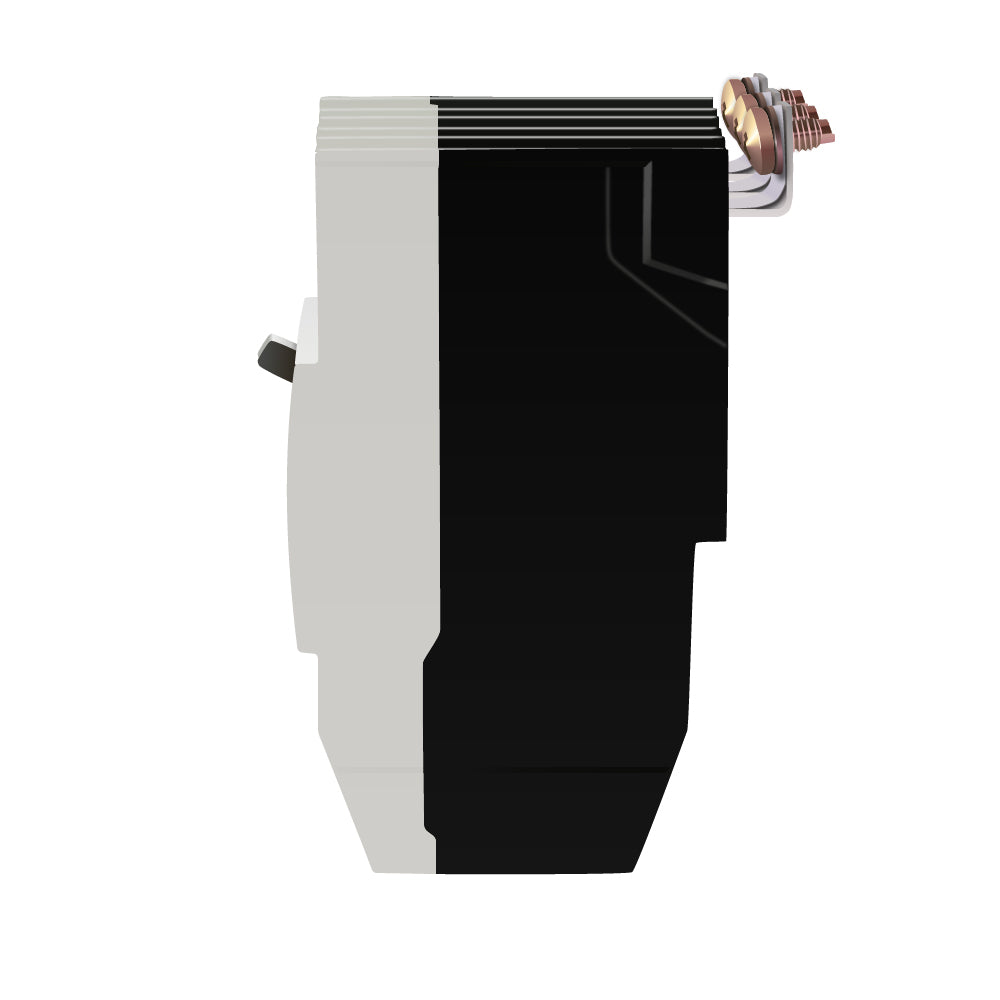

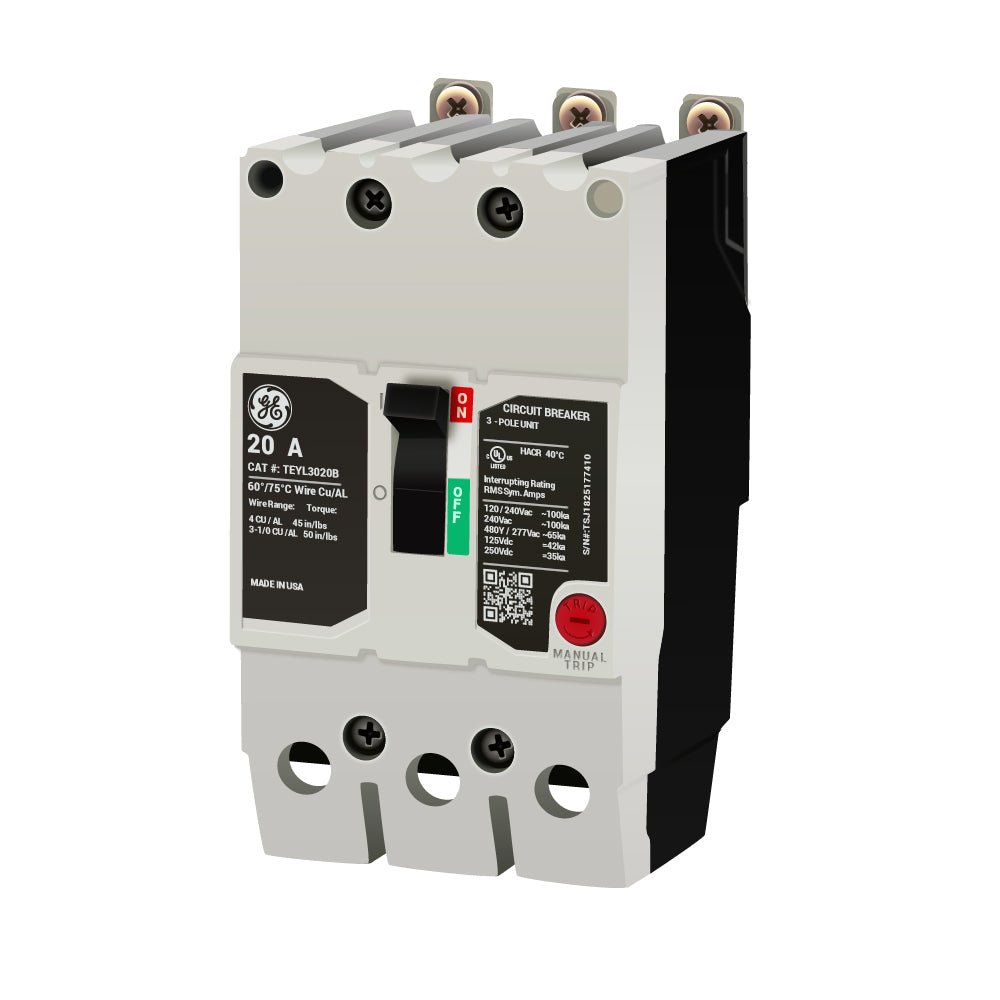

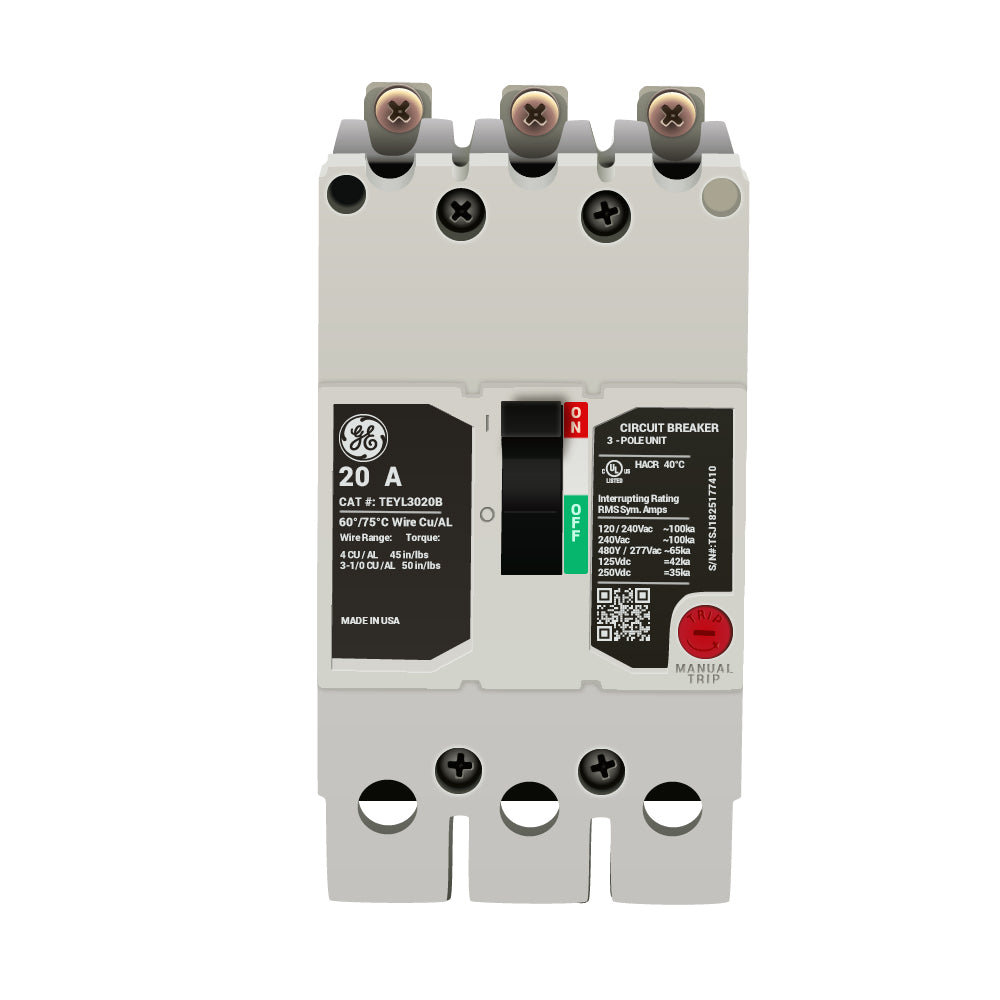

GE TEYL3020B Molded Case Circuit Breaker – 20A – 3-Pole – 480/277V – 65kA @ 480V – Bolt-On – TEYL Series

The GE TEYL3020B is a 20A, 3-pole molded case circuit breaker from the General Electric TEYL Series. It is rated for 480/277V and provides a 65kA interrupting rating at 480V, offering very high interrupting capacity. The breaker features thermal-magnetic protection, a non-interchangeable trip, load-side lug terminals, and bolt-on mounting. It is calibrated at 40°C.

Specifications:

• Manufacturer : General Electric (GE)
• Product Type : Molded Case Circuit Breaker
• Series : TEYL
• Type : TEYL
• Catalog No. : TEYL3020B
• Current Rating : 20A
• Number of Poles : 3-Pole
• Phase : 3-Phase
• Voltage Rating : 480/277V
• Interrupting Rating : 65kA @ 480V
• Interrupting Capacity : Very High Interrupting Capacity
• Trip Technology : Thermal-Magnetic
• Trip Unit : Non-Interchangeable
• Mounting Type : Bolt-On
• Terminal Type : Load-Side Lug Terminals
• Calibration Temperature : 40°C
• Application : Electrical Distribution and Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : TEYL3020B
• Catalog Number : TEYL3020B
• Product Family : TEYL Series Circuit Breakers
• Series : TEYL
• Type : TEYL
• Brand : GE
• Manufacturer : General Electric
• Product Type : Molded Case Circuit Breaker
• Model : TEYL3020B
• Breaker Configuration : 3-Pole, 20A
• upc:783164462524

Compatibility:

Designed for use with compatible GE TEYL Series molded case circuit breaker applications. The TEYL3020B is a 20A, 3-pole, 480/277V bolt-on MCCB with thermal-magnetic protection, a non-interchangeable trip, and load-side lug terminals.

Always verify the specific panelboard or electrical distribution equipment, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, trip-unit requirements, and terminal configuration before installation.

Certifications:

• TEYL Series
• 20A Rating
• 3-Pole / 3-Phase
• 480/277V Rated
• 65kA @ 480V Interrupting Rating
• Very High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Calibration
