TEYL3020B - General Electric 20A 480V 3 Pole Molded Case Circuit Breaker TEYL Series Bolt-On

Description

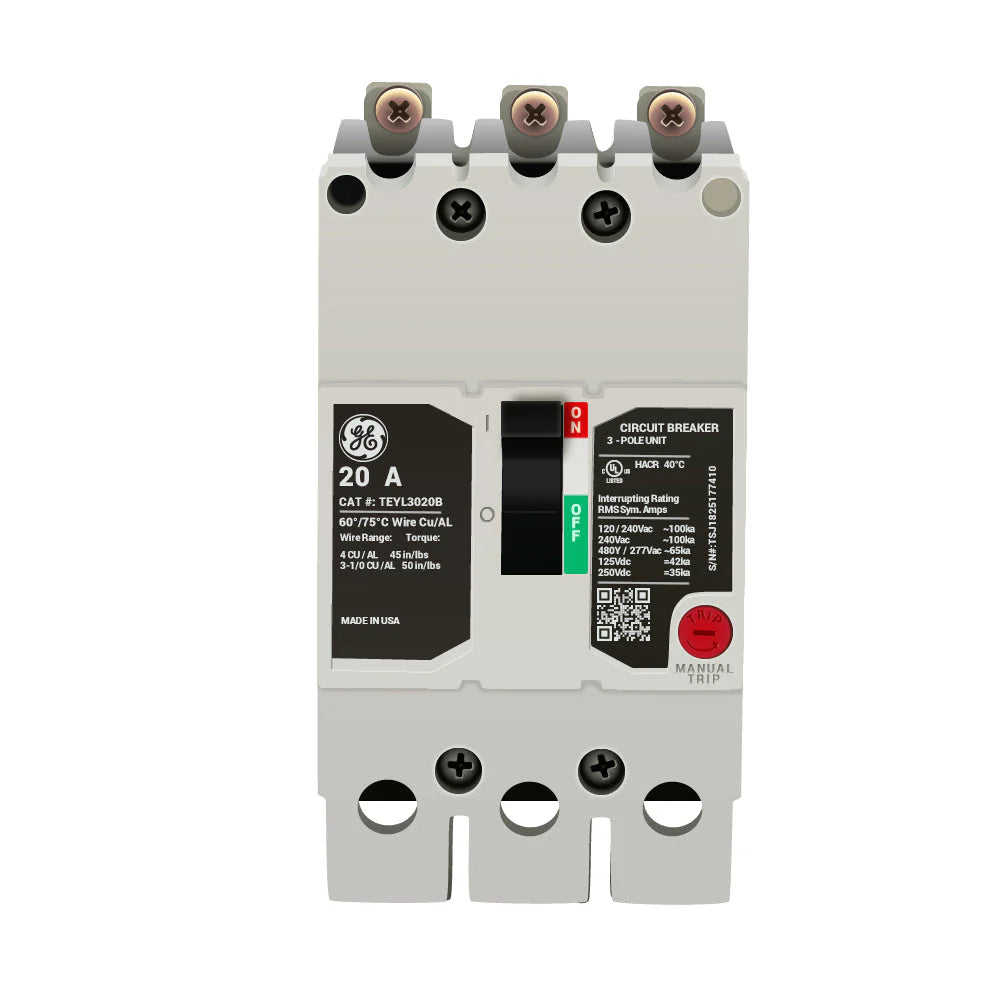

General Electric TEYL3020B

The GE TEYL3020B is a 3-pole, 20 A molded case circuit breaker designed for reliable protection in grounded 480Y/277 VAC systems. Part of the TEYL series, this breaker features a thermal magnetic trip unit for dependable overload and short-circuit protection. Its bolt-on mounting and compact 1-inch per pole width make it ideal for tight panel spaces, while the 65 kAIC interrupting rating at 480 V ensures robust fault current protection. UL listed for safety, the TEYL3020B provides dependable operation in industrial and commercial electrical applications.

Key Specifications

• Manufacturer: General Electric

• Part Number: TEYL3020B

• Series / Frame: TEYL

• Amperage: 20 A

• Voltage: 480 V AC

• Phase: 3

• Poles: 3

• Interrupt Rating: 65 kAIC @ 480 V

• Trip Unit: Thermal Magnetic

• Mounting Type: Bolt-On

• Functions: Long-Time and Instantaneous (LI)

• Terminal Connection: Lug

• Frame Size: 125 A / TEY

• Wire Size: Min. 10 AWG – Max. 4 AWG

• Breaker Type: Standard

• Protection: Thermal Magnetic

• Phase Connection: ABC

• Compact Design: 1 inch per pole width

Product Data

• UPC: 783164462524

• GTIN: 00783164462524

• Country of Origin: United States

• Dimensions: 3 × 5-1/4 in

• Weight: 2 lb

• Panel Type: GE AS Lighting Panels

• Standards / Certification: UL
