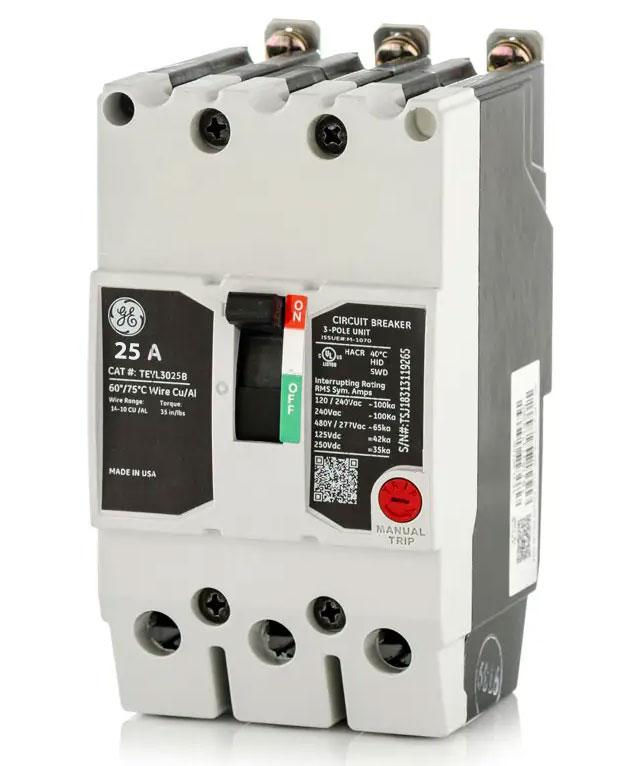

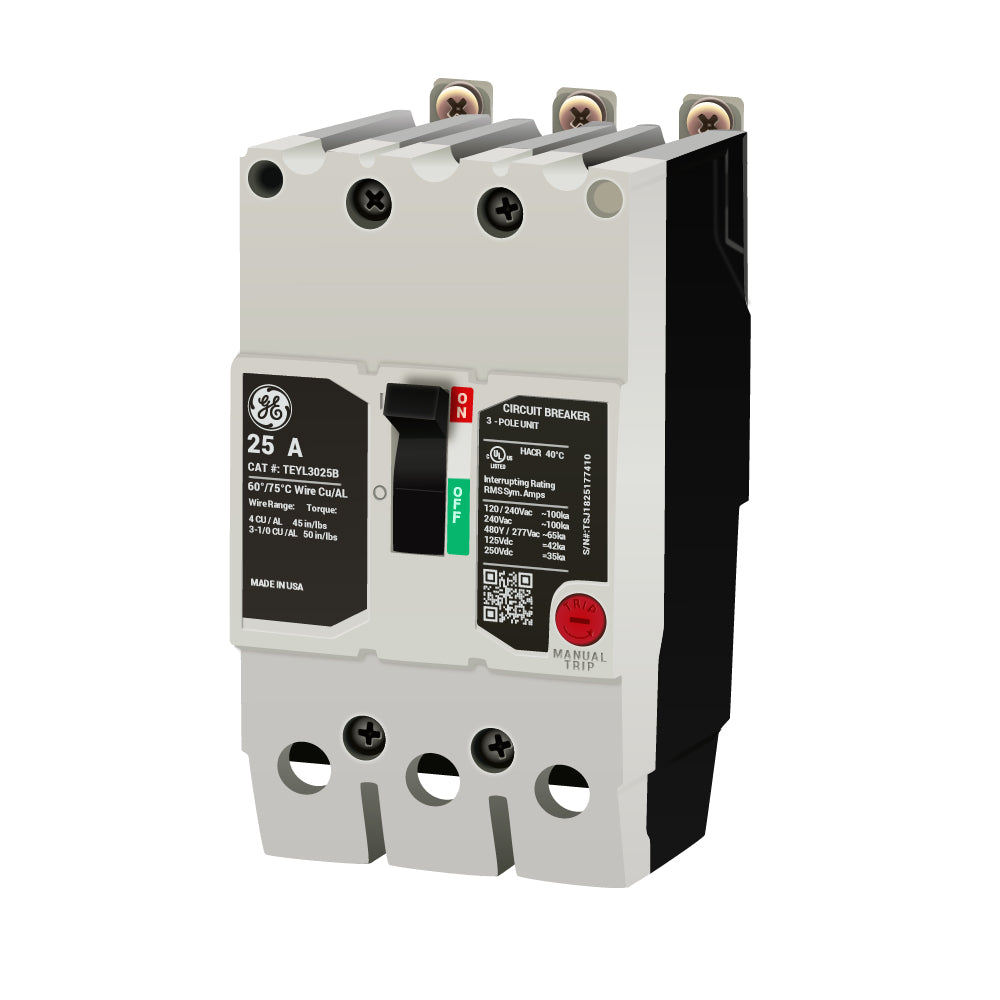

GE TEYL3025B Molded Case Circuit Breaker – 25A – 3-Pole / 3-Phase – 480/277V – 65kA @ 480V – Bolt-On – TEYL Series

The GE TEYL3025B is a 25A, 3-pole, 3-phase molded case circuit breaker from the General Electric TEYL Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 480/277V and provides a very high interrupting capacity of 65kA at 480V. It uses a bolt-on mounting configuration and includes load-side lug terminals for compatible electrical distribution applications. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYL
• Series: TEYL
• Type: TEYL
• Catalog No.: TEYL3025B
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Very High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Bolt-On
• Terminal Configuration: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYL3025B
• Catalog Number: TEYL3025B
• Model: TEYL3025B
• Product Family: GE TEYL Circuit Breakers
• Series: TEYL
• Type: TEYL
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 25A
• UPC:783164462531

Compatibility:

Designed for use with compatible GE TEYL Series electrical distribution equipment that accepts bolt-on molded case circuit breakers. The TEYL3025B provides 25A, 3-pole thermal-magnetic protection for compatible 480/277V applications.

The breaker features a very high 65kA interrupting rating at 480V, non-interchangeable LI trip functions, and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided.
