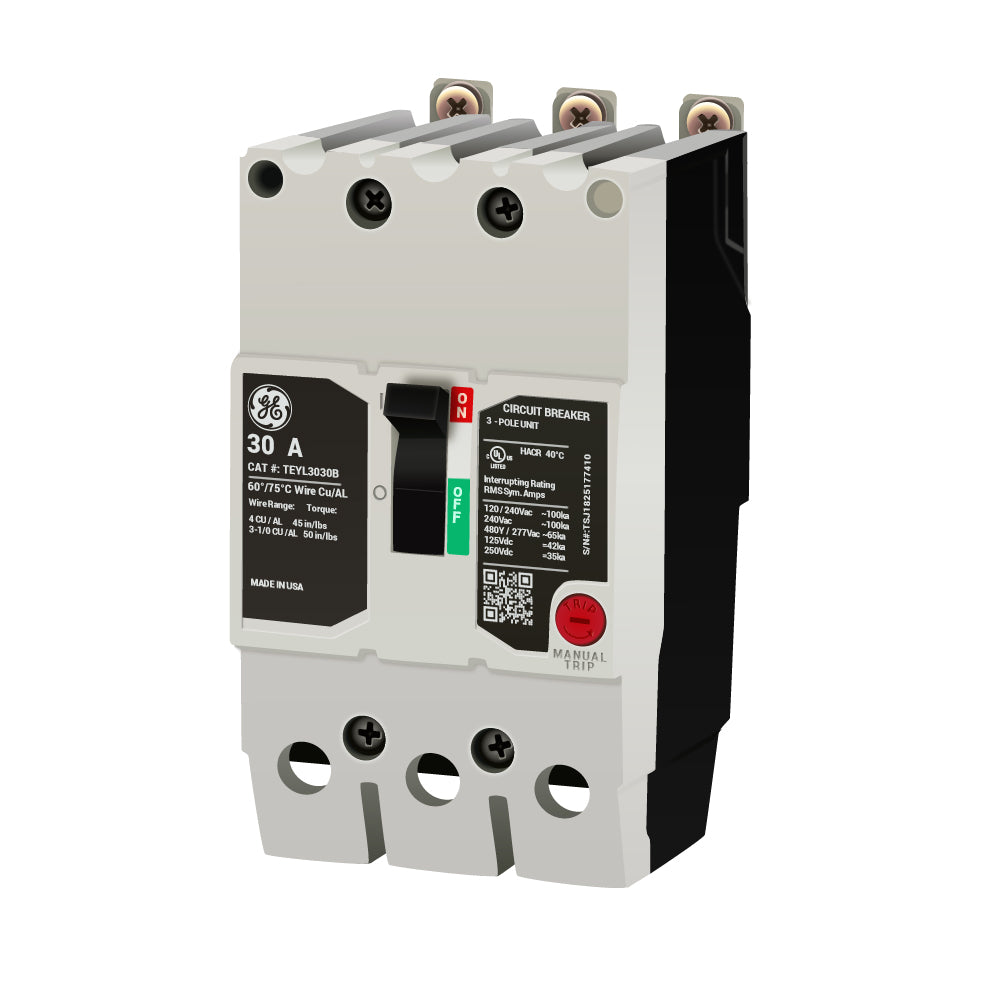

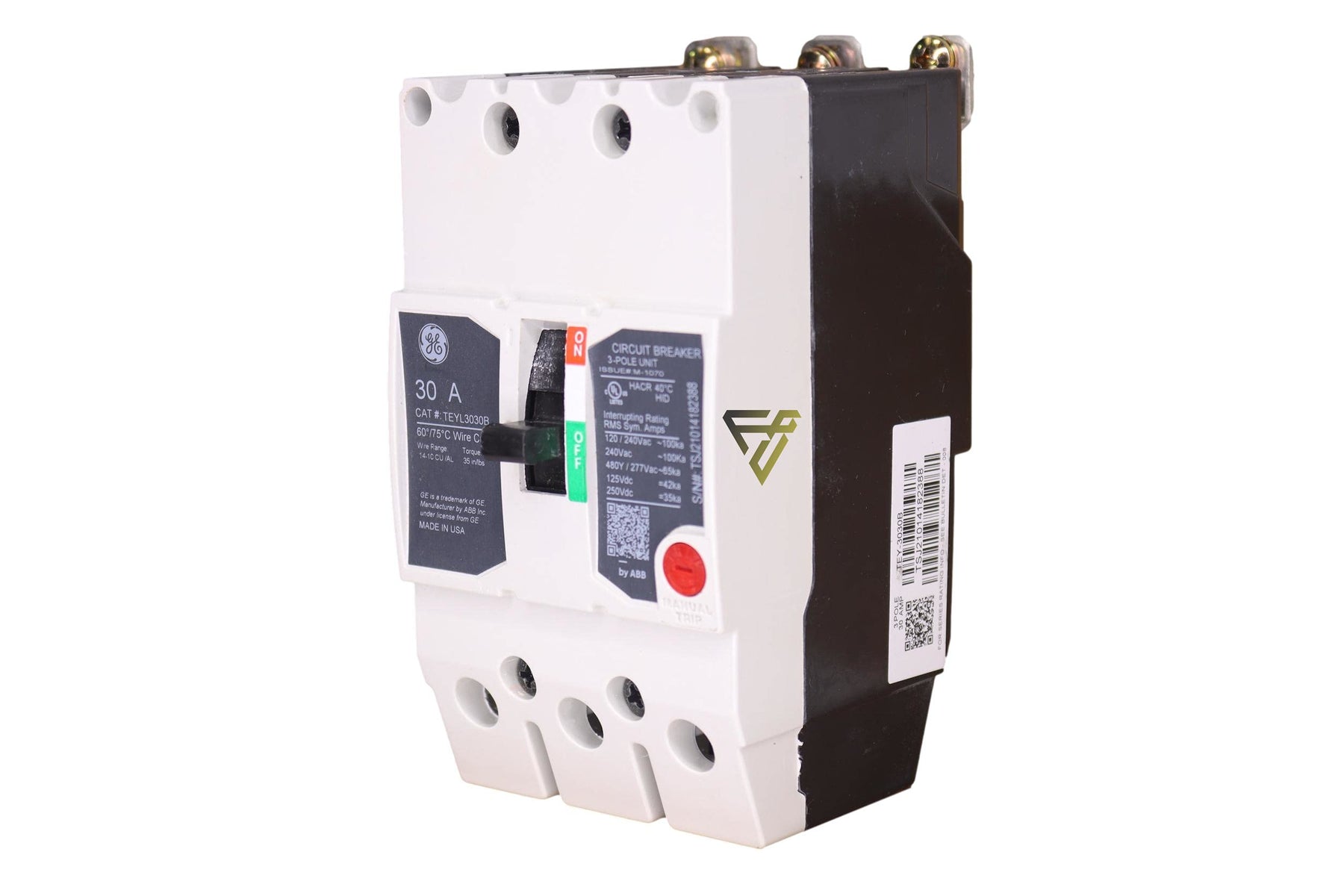

GE TEYL3030B Molded Case Circuit Breaker – 30A – 3-Pole – 480/277V – 65kA @ 480V – Bolt-On – TEYL Series

The GE TEYL3030B is a 30A, 3-pole bolt-on molded case circuit breaker from the General Electric TEYL Series. It features a thermal-magnetic trip system, a very high interrupting capacity, and a 65kA interrupting rating at 480V. The breaker is rated for 480/277V and uses a non-interchangeable trip with load-side lug terminals.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Catalog No.: TEYL3030B
• Product Family: TEYL Series
• Series: TEYL
• Current Rating: 30A
• Number of Poles: 3-Pole
• Voltage Rating: 480/277V
• Phase: 3-Phase
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Interrupting Capacity: Very High
• Interrupting Rating: 65kA @ 480V
• Trip Type: Non-Interchangeable
• Terminal Type: Load-Side Lug Terminals
• Calibration Temperature: 40°C
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYL3030B
• Catalog Number: TEYL3030B
• Model: TEYL3030B
• Product Family: GE TEYL Series
• Series: TEYL
• Brand: General Electric (GE)
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 30A
• upc:
  783164462548

Compatibility:

Designed for use with compatible GE TEYL Series electrical distribution equipment that accepts bolt-on molded case circuit breakers. The TEYL3030B provides 30A, 3-pole thermal-magnetic protection for compatible 480/277V, 3-phase applications and is equipped with load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, terminal requirements, mounting arrangement, and installation requirements before installation.

Certifications:

• 30A Rated
• 3-Pole / 3-Phase
• 480/277V Rated
• 65kA Interrupting Rating @ 480V
• Very High Interrupting Capacity
• Thermal-Magnetic Protection
• Bolt-On Mounting
• Non-Interchangeable Trip
• Load-Side Lug Terminals
• 40°C Rated
• GE TEYL Series
