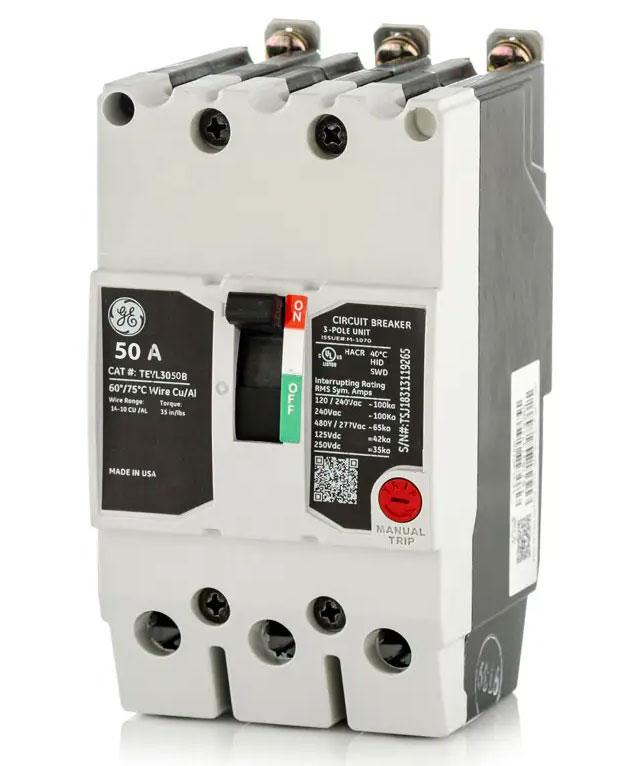

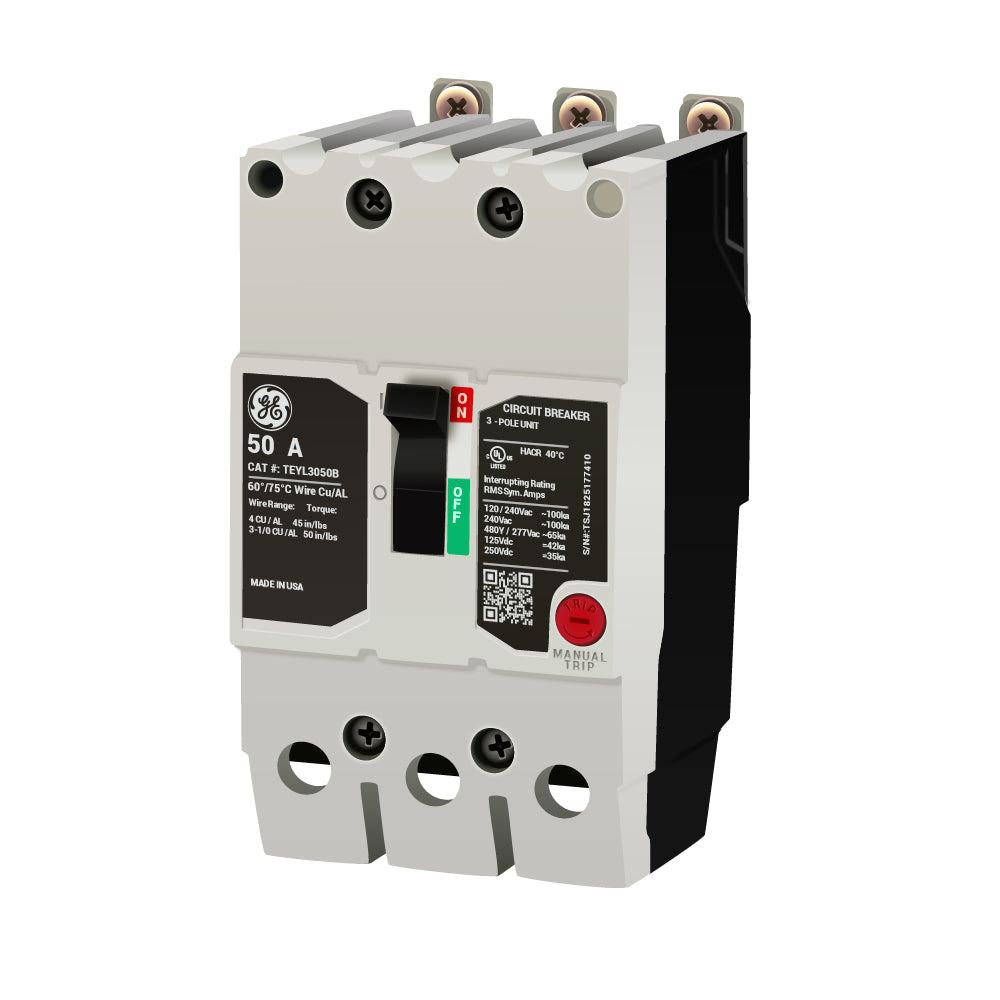

GE TEYL3050B Molded Case Circuit Breaker – 50A – 3-Pole – 480/277V – 65kA @ 480V – Bolt-On – TEYL Series

The GE TEYL3050B is a 50A, 3-pole molded case circuit breaker from the General Electric TEYL Series. It is rated for 480/277V and provides a 65kA interrupting rating at 480V. The breaker features thermal-magnetic protection, a bolt-on connection, and a non-interchangeable trip.

The TEYL3050B is designed with very high interrupting capacity and includes load-side lug terminals. It is suitable for compatible electrical distribution applications requiring reliable thermal-magnetic overcurrent protection.

Specifications:

• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Series: TEYL
• Type: TEYL
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Very High
• Trip Technology: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Mounting / Connection: Bolt-On
• Terminal Configuration: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYL3050B
• Catalog Number: TEYL3050B
• Product Family: GE Molded Case Circuit Breakers
• Series: TEYL
• Type: TEYL
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: TEYL3050B
• Breaker Configuration: 3-Pole, 50A
• upc:783164462586

Compatibility:

Designed for use with compatible GE TEYL Series electrical distribution equipment that accepts bolt-on molded case circuit breakers. The TEYL3050B is suitable for 3-phase, 480/277V applications requiring a 50A thermal-magnetic breaker with a 65kA interrupting rating at 480V.

Always verify the specific panelboard or electrical distribution equipment, approved breaker type, system voltage, pole configuration, interrupting rating, terminal arrangement, and installation requirements before installation.

Certifications:

• TEYL Series
• 50A Rating
• 3-Pole / 3-Phase
• 480/277V Rated
• 65kA @ 480V
• Very High Interrupting Capacity
• Thermal-Magnetic Protection
• Bolt-On Connection
• Non-Interchangeable Trip
• Load-Side Lug Terminals
• 40°C Rated
