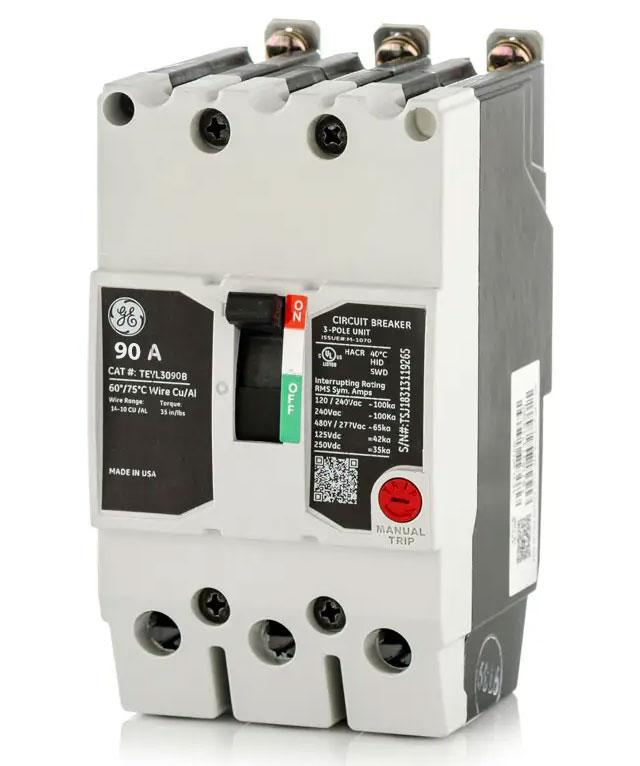

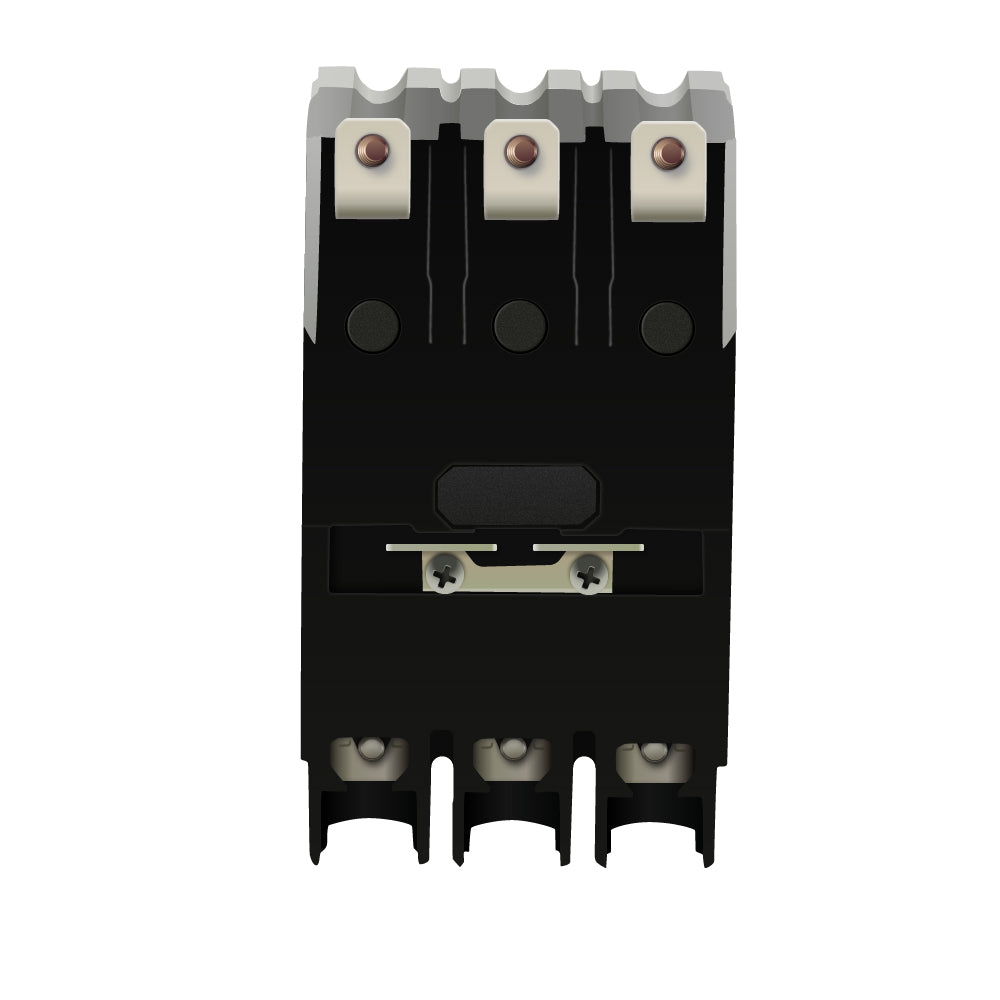

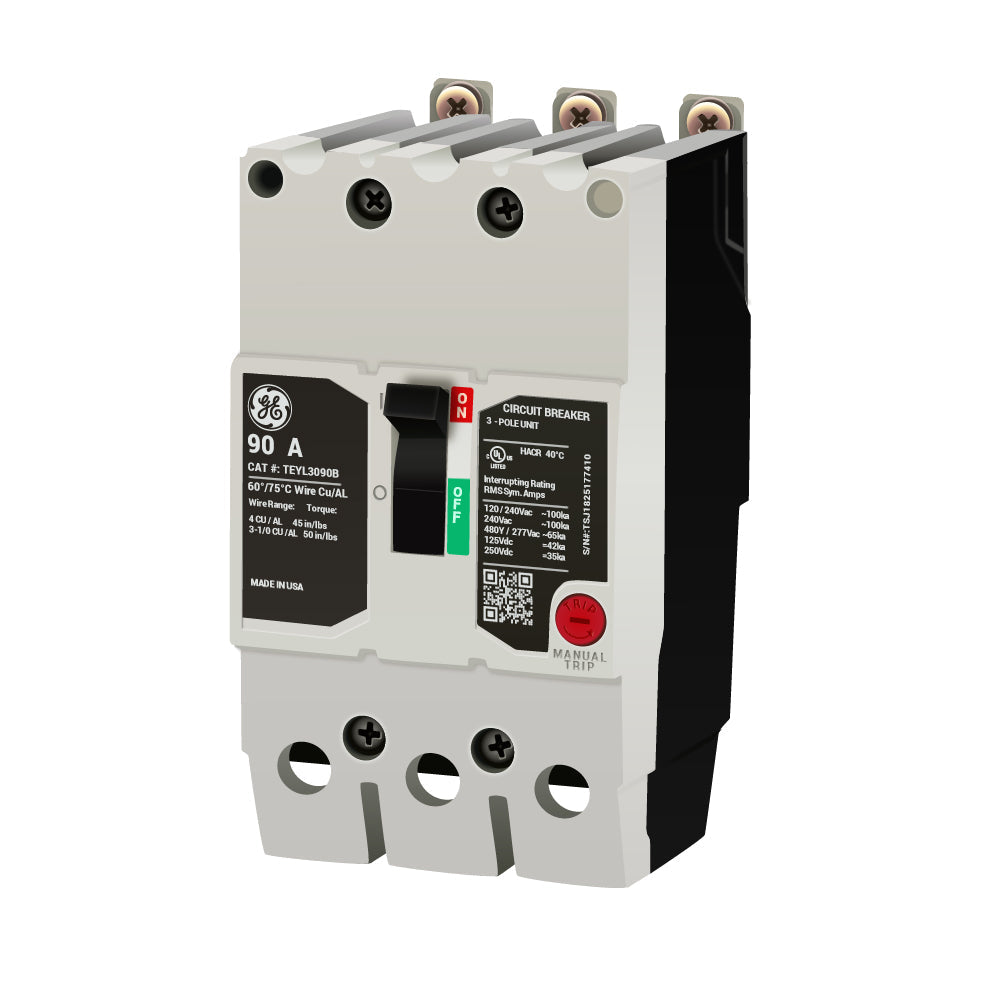

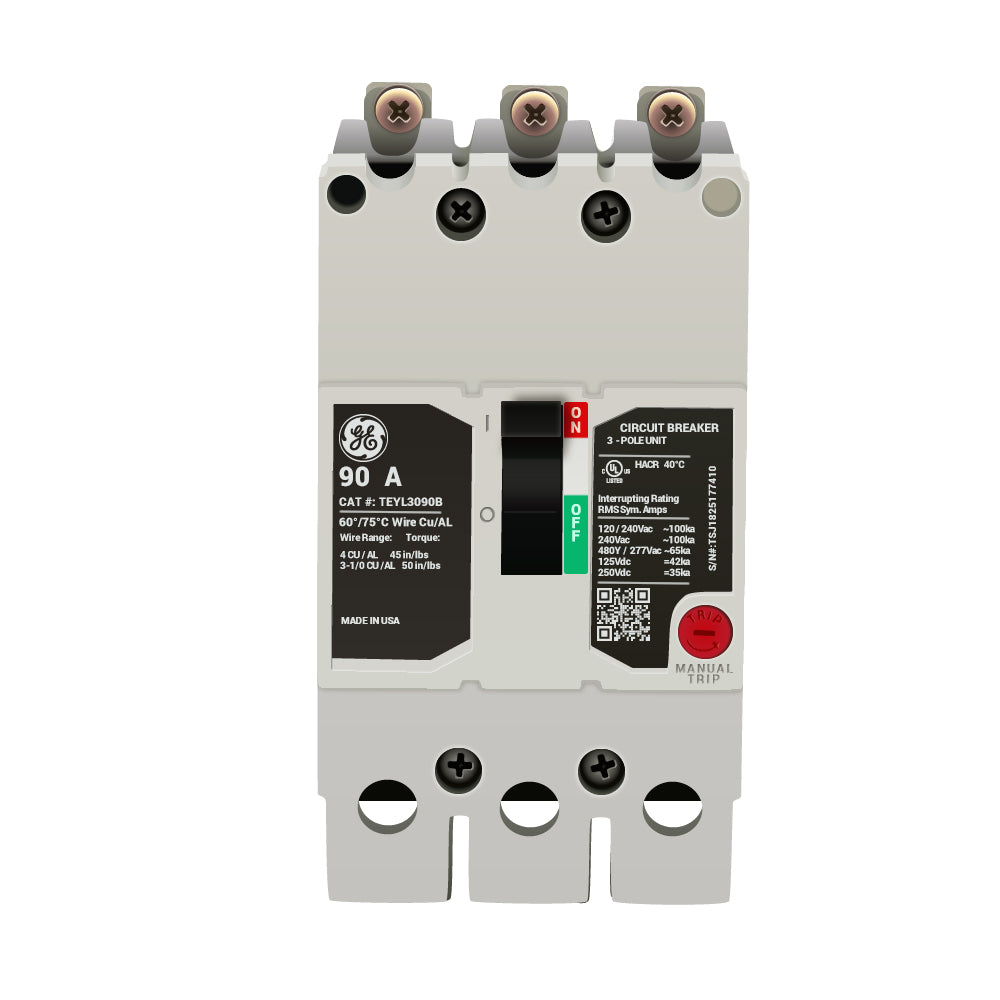

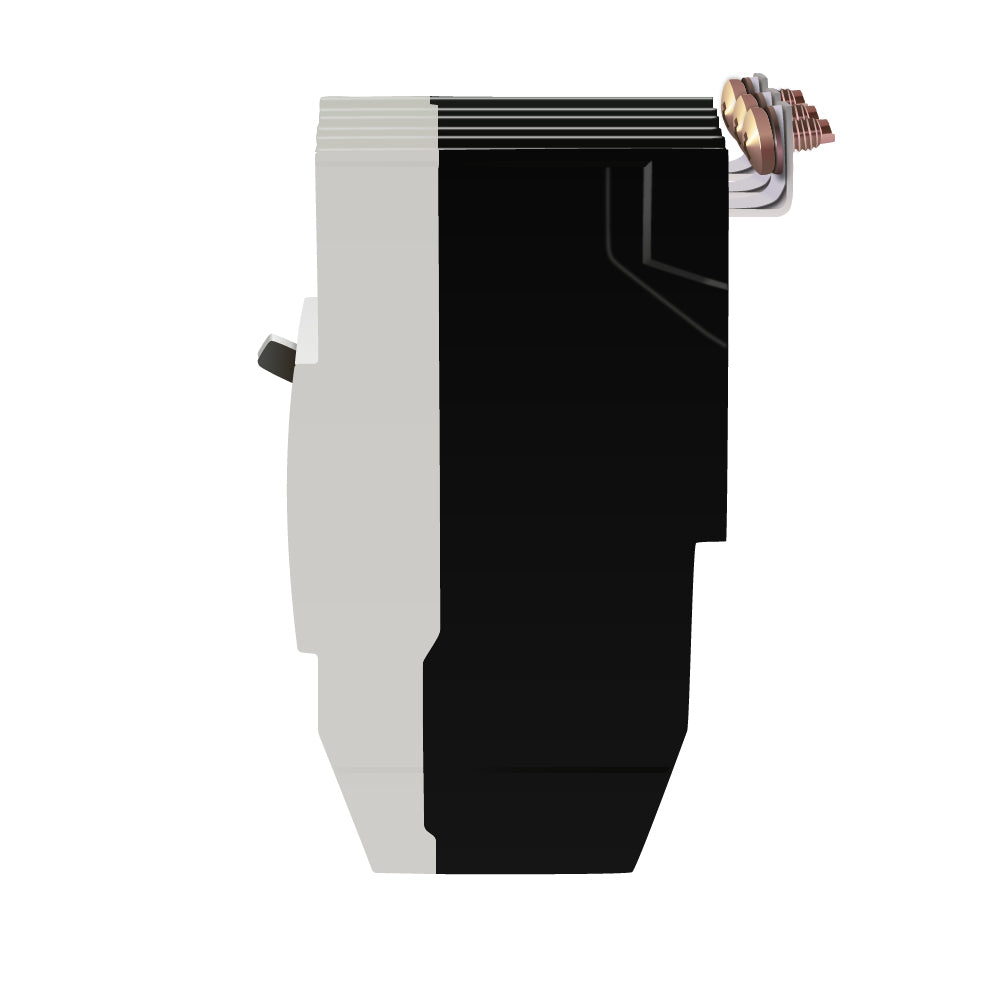

GE TEYL3090B Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 480/277V – 65kA @ 480V – Bolt-On – TEYL Series

The GE TEYL3090B is a 90A, 3-pole, 3-phase molded case circuit breaker from the GE TEYL Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The TEYL3090B is rated for 480/277V and provides a 65kA interrupting rating at 480V with very high interrupting capacity. It uses a bolt-on mounting configuration and includes load-side lug terminals.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: TEYL Series
• Series: TEYL
• Type: TEYL
• Catalog No.: TEYL3090B
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480/277V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Very High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TEYL3090B
• Catalog Number: TEYL3090B
• Model: TEYL3090B
• Product Family: GE TEYL Series Circuit Breakers
• Series: TEYL
• Type: TEYL
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 90A
• UPC:783164462623

Compatibility:

Designed for use with compatible GE TEYL Series electrical distribution equipment that accepts TEYL Series bolt-on molded case circuit breakers. The TEYL3090B provides 90A, 3-pole, thermal-magnetic overcurrent protection for compatible 480/277V electrical distribution applications.

The breaker features a 65kA interrupting rating at 480V, a non-interchangeable LI trip, bolt-on mounting, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
