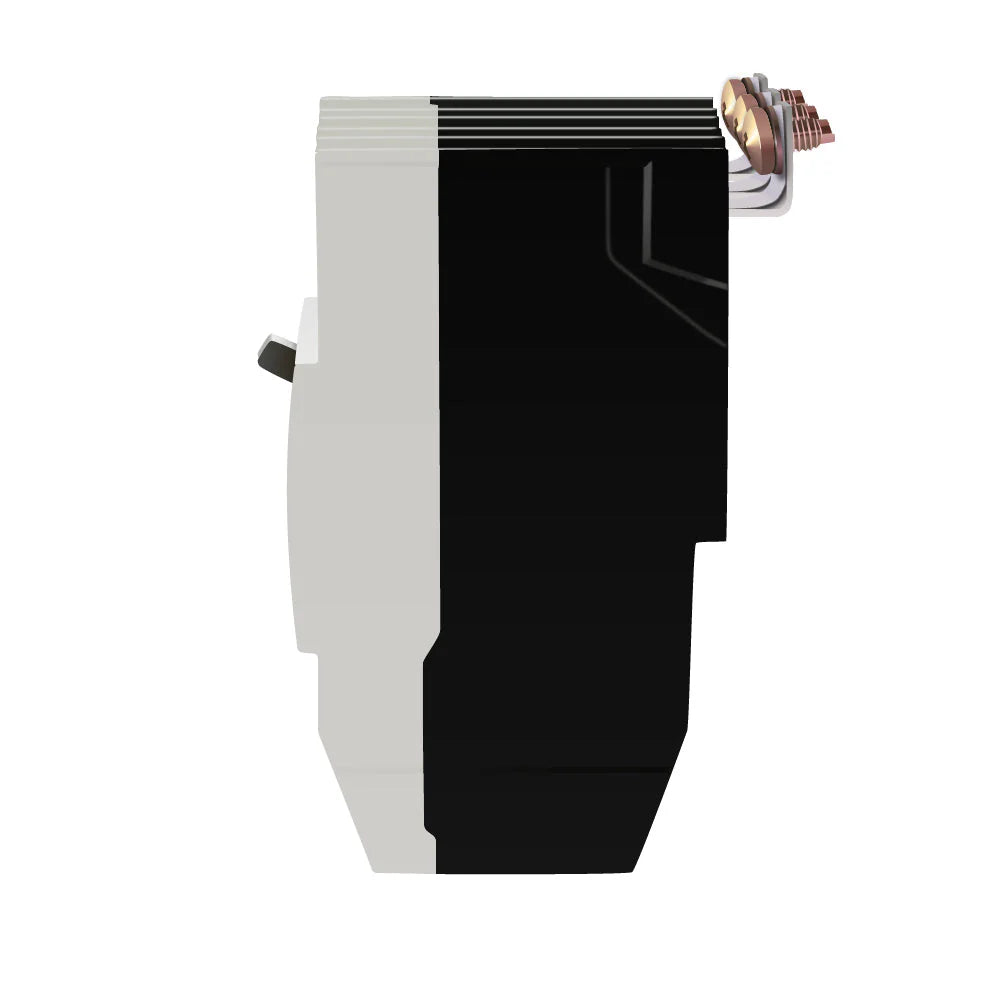

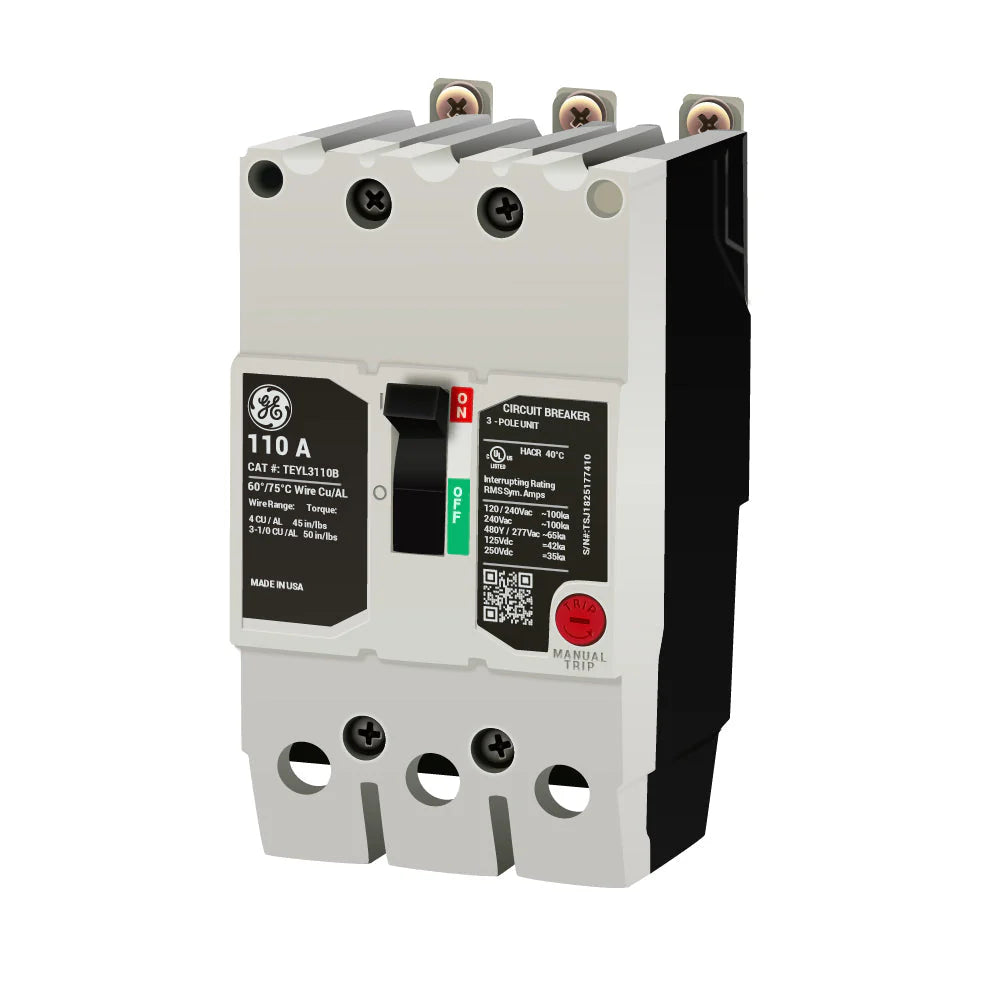

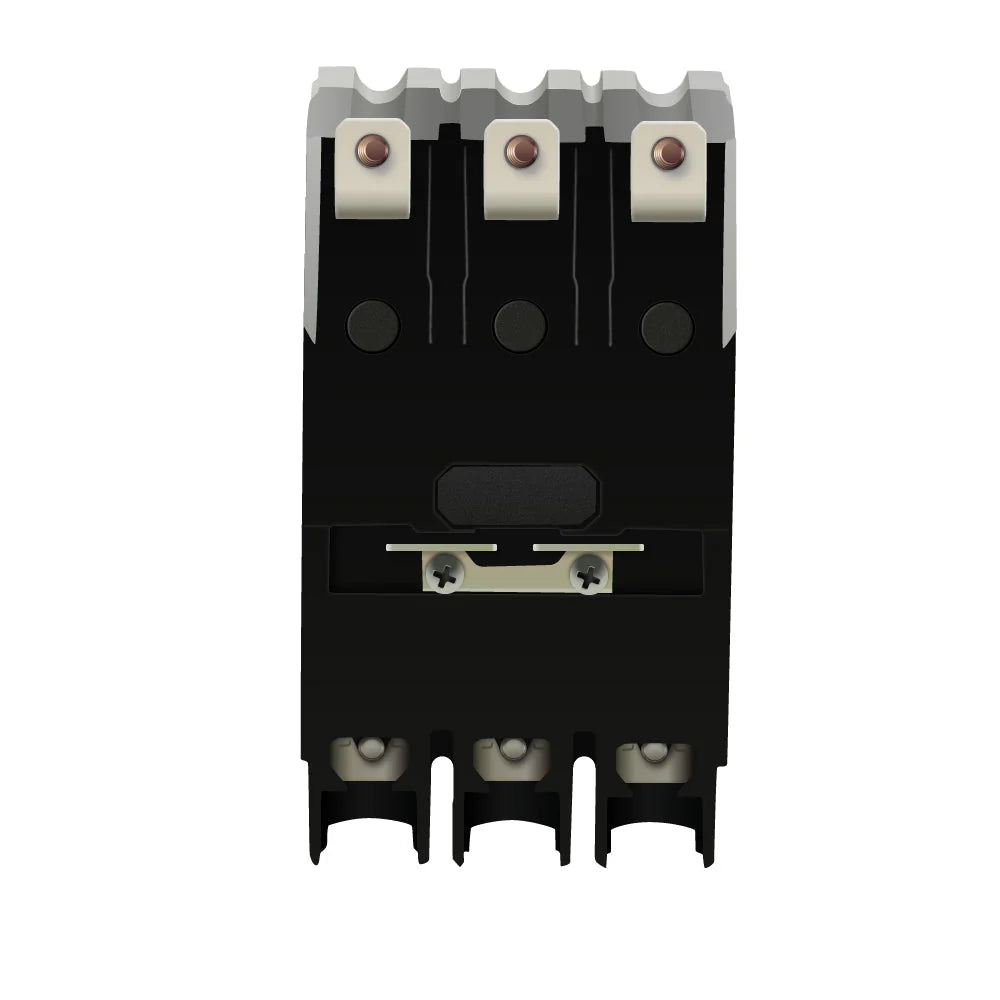

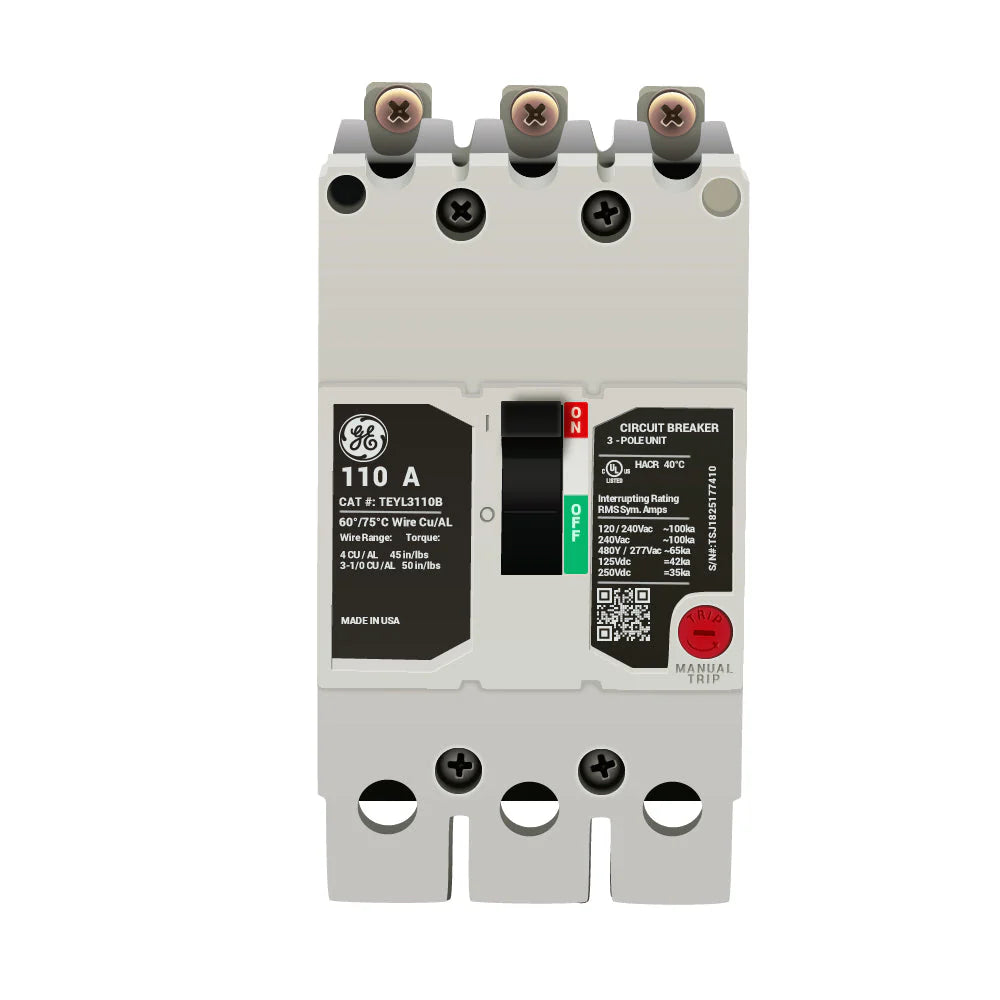

General Electric TEYL3110B Molded Case Circuit Breaker – 110 Amp – 3-Pole – 480 Volt AC – 65 kA at 480 V – Bolt-On – TEYL Series

The General Electric TEYL3110B is a 110 Amp, 3-pole molded case circuit breaker from the TEYL Series. It is rated for 480 V AC and features a thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection. The breaker provides an interrupting capacity of 65 kA at 480 V AC and uses a bolt-on panelboard connection.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker (MCCB)
• Part Number / MPN: TEYL3110B
• Breaker Type: TEYL
• Frame / Series: TEY / TEYL
• Primary Rating: 110 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 480 V AC / 277 V AC
• Interrupting Rating (AIC):
• 100 kA at 120/240 V AC
• 100 kA at 240 V AC
• 65 kA at 277/480 V AC
• 42 kA at 125 V DC
• 35 kA at 250 V DC
• Connection: Bolt-On
• Trip Functions: LI – Long-Time and Instantaneous
• Protection: Thermal Magnetic
• Frequency: 50/60 Hz
• Mounting: Bolt-On Panelboard
• Terminal Connection: Load-Side Lug
• Actuator Type: Handle Toggle
• Protection Functions: Overload and Short-Circuit Protection

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: TEYL3110B
• MPN: TEYL3110B
• Breaker Type: TEYL
• Current Rating: 110 A
• Pole Count: 3 Pole
• Voltage Rating: 480 V AC
• UPC: 783164462647
• GTIN: 00783164462647

Compatibility

The GE TEYL3110B belongs to the GE TEY/TEYL molded case circuit breaker family.

• Compatible Product Family: GE TEY / TEYL Series
• Compatible Applications: GE AS Lighting Panels and compatible GE panelboards designed to accept TEY-family bolt-on circuit breakers.

Certifications

• UL 489: Listed (as specified in the supplied product information)
• cUL: Certified (as specified in the supplied product information)
