TGN3323 - General Electric 100A 240VAC 3-Pole Non-Fusible Safety Switch NEMA 1 General Duty

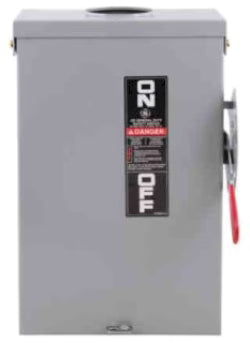

General Electric TGN3323 Non-Fusible Safety Switch

The GE TGN3323 is a Spec-Setter™ General Duty Non-Fusible Safety Switch engineered to deliver safe and reliable circuit isolation for commercial and industrial applications. This 3-pole, 100-amp switch operates at 240V AC and 250V DC, making it a dependable choice for general-duty disconnecting needs.

Designed with a NEMA 1 indoor-rated enclosure, the TGN3323 ensures durable protection and easy installation in control panels, machinery, and other electrical systems that require a manual power disconnect. It features a non-fusible, single-throw design and supports 3-wire configurations for straightforward operation and wiring flexibility.

Built to meet UL 98 and CSA standards, this switch provides long-lasting performance and compliance for North American installations.

Key Specifications

• Manufacturer: General Electric

• Part Number: TGN3323

• Series: Spec-Setter™

• Type: Non-Fusible Safety Switch

• Amperage: 100A

• Voltage Rating (AC): 240V AC

• Voltage Rating (DC): 250V DC

• Poles: 3

• Mounting Style: Panel Mount

• Enclosure Rating: NEMA 1 (Indoor)

• Wire Configuration: 3-Wire

• Interrupt Rating: General Duty

• Certifications: UL 98, CSA

Specifications

• Manufacturer: General Electric

• Part Number: TGN3323

• Category: Switch

• Family: Spec-Setter

• Type: TGN

• Item Subcategory: Disconnect

• Amperage: 100A

• Voltage Rating: 240V AC

• Phase: 3

• Poles: 3

• Configuration: Single Throw

• Switch Type: Non-Fusible

• AIC Rating: 100kA @ 240V

• NEMA Enclosure: NEMA 1 (Indoor)

• Compatible Frame: ED

Product Details

• Weight: 15 lb

• UPC: 783164008821

• GTIN: 00782114357415
