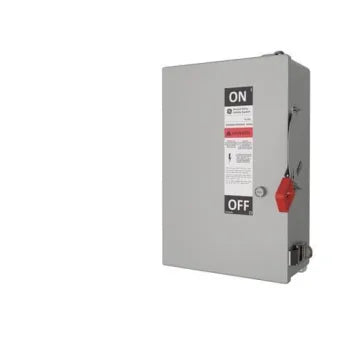

TH2262DC – ABB 60A 600VDC 2-Pole Fusible Safety Switch NEMA 1

Description

TH2262DC
The TH2262DC is a heavy-duty 60 amp, 2‑pole fusible safety switch engineered for DC applications up to 600 VDC. Designed for reliable indoor electrical disconnect and circuit protection, it features a NEMA 1 painted steel enclosure and accepts appropriate Class H/J/K/R DC fuses. The switch provides a quick‑make/quick‑break handle mechanism, suitable for service equipment and distribution circuits requiring rugged, dependable operation.

Key Specifications

• Amperage: 60 A

• Voltage Rating: 600 V DC

• Poles: 2

• Wires: 2

• Fusible: Yes, accepts DC-rated fuses

• Enclosure: Painted steel, NEMA 1 (indoor)

• Interrupt Rating: 200 kA @ 600 V DC

• Mounting Type: Surface mount

• Series/Frame: Heavy Duty Safety Switch

• Certifications: UL 98, cUL

• Application: DC disconnect and circuit protection

• Horsepower Ratings (DC): 25 HP @ 600 V DC

Specifications

• Part Number: TH2262DC

• Manufacturer: ABB

• Category: Switch

• Item Subcategory: Safety Switch / Disconnect

• Family: Spec‑Setter Heavy Duty

• Type: DC Fusible Safety Switch

• Voltage: 600 V DC

• Amperage: 60

• Phase: DC

• Poles: 2

• AIC Rating: 200 kA @ 600 V DC

• Fuse Class: DC-rated fuse types

• Configuration: Single

• Switch Style: Fusible

• NEMA Rating: NEMA 1

• Compatible Frames: Standard Safety Switch Frames

Product Data

• UPC: 783164082173

• GTIN: 00783164082173

• Country of Origin: Not specified

• Dimensions: ~9.1 in W x 5.0 in D x 21.3 in H

• Weight: ~18 lbs
