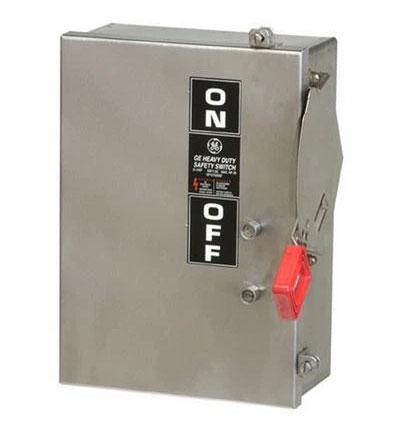

GE TH3361SS Safety Switch – 30A – 3-Pole / 3-Phase – 600V – 200kA @ 600V – Fusible – NEMA 4/4X – Spec-Setter TH Series

The GE TH3361SS is a 30A, 3-pole, 3-phase heavy-duty fusible safety switch from the GE Spec-Setter TH Series. It is designed for compatible electrical disconnect and safety-switch applications and is rated for 600V with a 200kA interrupting rating at 600V.

The TH3361SS features a NEMA 4/4X stainless-steel enclosure, accepts Class R fuses, and uses a single-style configuration. It is suitable for outdoor use and is specified for a 4-wire, 3-phase configuration.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Disconnect and Safety Switch
• Product Family: Spec-Setter
• Series: TH
• Type: TH
• Catalog No.: TH3361SS
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 4-Wire
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 600V
• Switch Type: Fusible
• Fuse Class: Class R
• Enclosure Rating: NEMA 4/4X
• Enclosure Material: Stainless Steel
• Configuration: Single Style
• Outdoor Use: Suitable for Outdoor Use
• Application: Disconnect and Safety Switching

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TH3361SS
• Catalog Number: TH3361SS
• Model: TH3361SS
• Product Family: GE Spec-Setter Safety Switches
• Series: TH
• Type: TH
• Brand: General Electric (GE)
• Manufacturer: General Electric
• Product Type: Fusible Disconnect and Safety Switch
• Configuration: 3-Pole, 30A
• Fuse Type: Class R
• UPC:783164089295

Compatibility:

Designed for use with compatible GE Spec-Setter TH Series disconnect and safety-switch applications requiring a 30A, 3-pole, 600V fusible safety switch. The TH3361SS accepts Class R fuses and uses a NEMA 4/4X stainless-steel enclosure for suitable outdoor installations.

Always verify the specific electrical equipment, system voltage, fuse requirements, enclosure requirements, conductor configuration, installation environment, and applicable installation requirements before installation.

Certifications:

• UL Listed
• Spec-Setter TH Series
• 30A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 200kA @ 600V Interrupting Rating
• Fusible Type
• Accepts Class R Fuses
• NEMA 4/4X Enclosure
• Stainless-Steel Enclosure
• 4-Wire Configuration
• Suitable for Outdoor Use
• Heavy-Duty Safety Disconnect Switch
