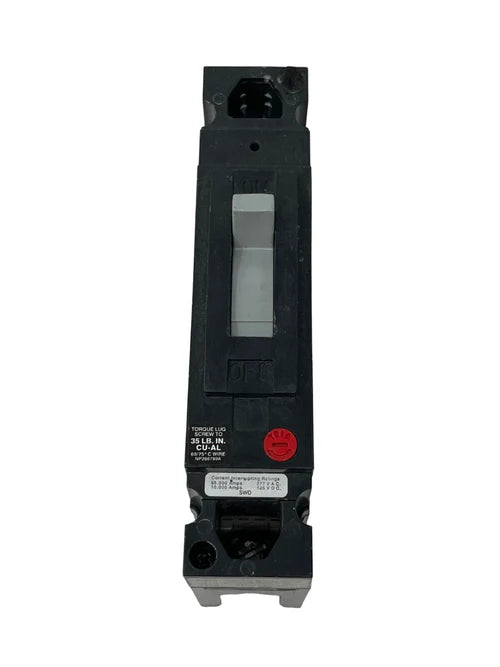

THED113020 – General Electric 20A 1-Pole Thermal Magnetic Circuit Breaker, 277V AC 65 kAIC, E150 Frame
Couldn't load pickup availability
Ask an expert
Product Description
The General Electric THED113020 is a 1-pole, 20 amp thermal magnetic molded case circuit breaker rated for 277 V AC. It delivers reliable protection in commercial and industrial electrical systems, with bolt-on mounting, long-time and instantaneous trip functions, and a high interrupting capacity of 65 kAIC at 480 V AC. Part of the E150 frame series, this breaker is designed for single-phase systems with a maximum operating temperature of 40 °C. Line and load lugs ensure secure connections.
Key Features
• 20 amp circuit breaker
• 1-pole configuration
• 277 V AC rated
• Thermal magnetic protection
• Bolt-on mounting
• Long-time and instantaneous trip
• Line and load lugs
• UL Listed
Technical Specifications
• Manufacturer: General Electric
• Part Number: THED113020
• Series/Frame: THED / E150
• Frame Family: E150 Line
• Amperage: 20 A
• Voltage Rating: 277 V AC
• Poles: 1
• Phase: 1
• Trip Unit Type: Thermal Magnetic
• Protection Functions: Long-time and instantaneous
• Interrupting Rating: 65 kAIC at 480 V AC
• Connection Type: Bolt-On with line/load lugs
• Temperature Rating: -13 °F to 158 °F (-25 °C to 70 °C)
Product Data
• UPC: 783164138672
• GTIN: 00783164138672
• Weight: 1 lb
• Country of Origin: USA
