THED124015WL - General Electric Plug In Panelboard 480V 15A 2 pole circuit breaker 25kA@480V
Couldn't load pickup availability
Ask an expert
Description
THED124015WL

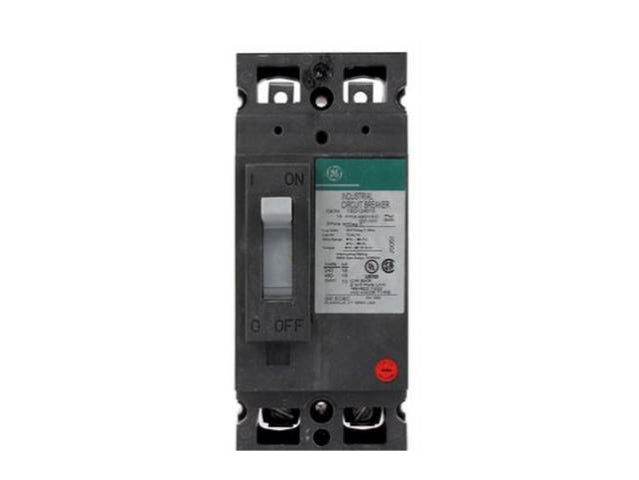

The General Electric THED124015WL is a Molded Case Circuit Breaker. This type THED circuit breaker is a member of The E150 Line family. The THED124015WL is a 2 pole, 480 Volt, 15 amp rated circuit breaker, with an AIC rating of 25kA@480V. The THED124015WL is manufactured by General Electric. The THED124015WL uses a Plug In Panelboard connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: THED124015WL
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 480
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Plug In Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Line/Load Lug
- Frame Size : 150A/THED
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
Product Data
- UPC : 783164201970
- GTIN : 00783164201970
- Country of Origin : United States
- Dimensions : 4-1/8 in x 6-5/16 in
- Weight : 2
- Panel Type : GE Panelboards
- Standards : CSA Certified, UL Listed
- Certification : CSA Certified, UL Listed
- Type Circuit Breakers
- Vendor GE
- Brand GE
- Electrical Rating Feed-Thru - 15 Amp - 2 Pole - 480 Volt
