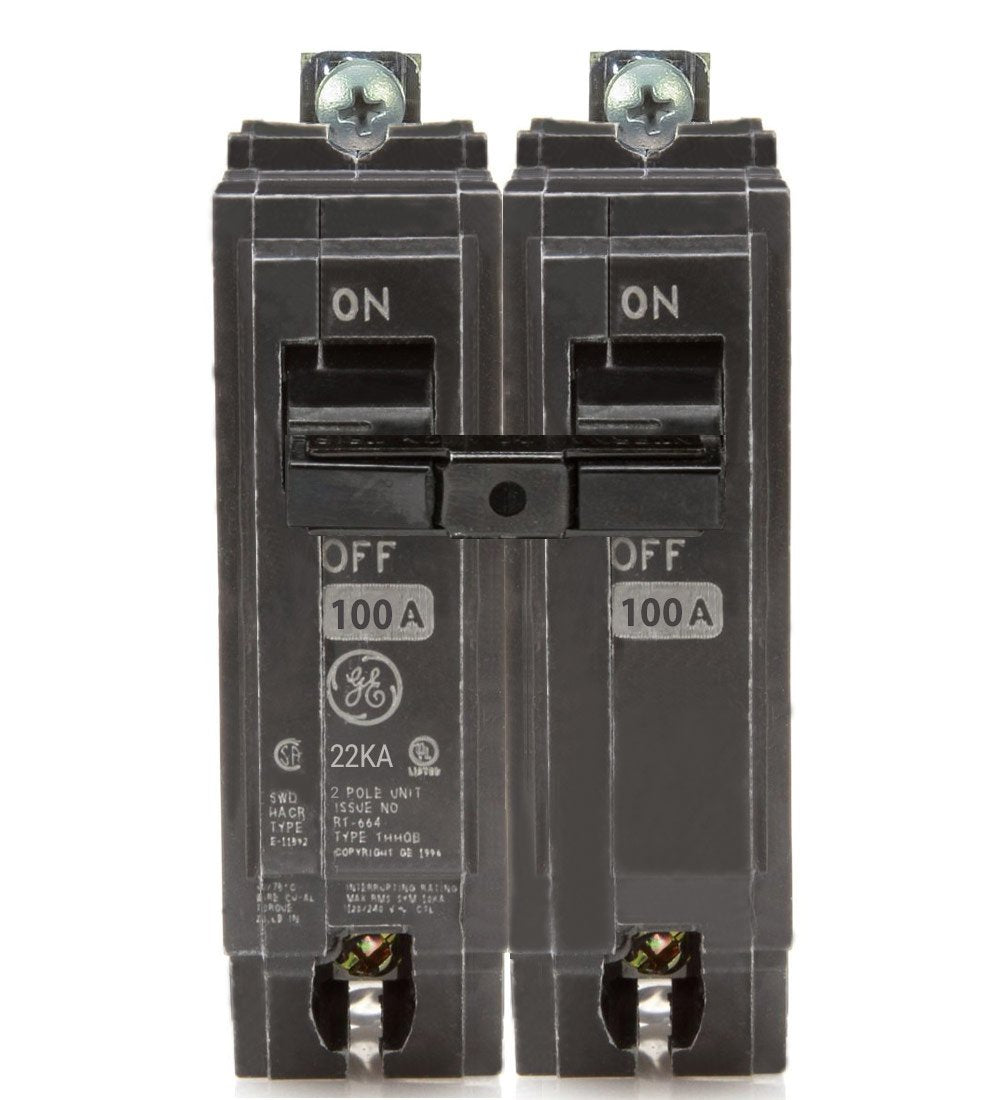

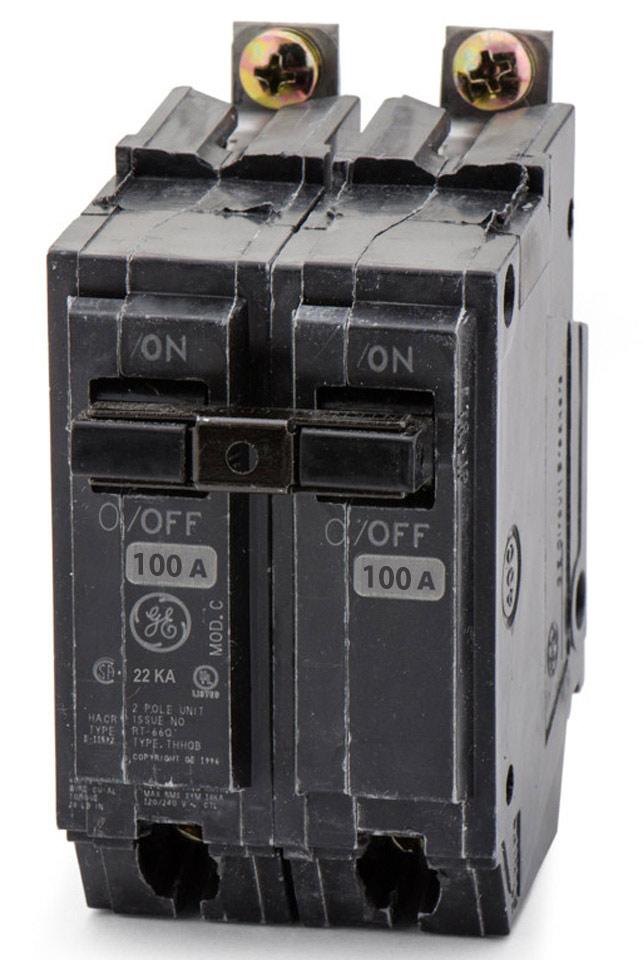

GE THHQB21100 100A 2-Pole 120/240V 22kA Bolt-On Circuit Breaker

Product Description

The GE / ABB THHQB21100 is a 100 Amp, 2-pole Q-Line circuit breaker designed for 120/240VAC electrical systems. It features a bolt-on mounting configuration, thermal-magnetic protection, and a high interrupting capacity of 22kA.

The THHQB series provides a higher interrupting rating than the standard THQB series, making it suitable for applications requiring 22kAIC protection.

Key Features

• GE / ABB
• Q-Line THHQB Series
• 100 Amp
• 2 Pole
• 120/240VAC
• 22kAIC Interrupting Rating
• Bolt-On Mounting
• Thermal-Magnetic Trip
• Common Trip
• Fixed Trip
• 1-Inch Width Per Pole

Technical Specifications

Manufacturer: GE / ABB
Catalog Number: THHQB21100
Series: Q-Line THHQB
Amperage: 100A
Poles: 2
Voltage: 120/240VAC
Phase: Single Phase
Interrupting Rating: 22kAIC
Mounting: Bolt-On
Trip Type: Thermal-Magnetic
Trip Function: Long-Time / Instantaneous (LI)
Trip Adjustment: Fixed
Connection: Box Lugs
Maximum Conductor Size: 1/0 AWG

Product Data

Brand: GE / ABB
Manufacturer: ABB Electrification
MPN: THHQB21100
Product Type: Molded Case / Q-Line Circuit Breaker
Mounting Type: Bolt-On
Interrupting Capacity: 22,000 Amps @ 120/240VAC
