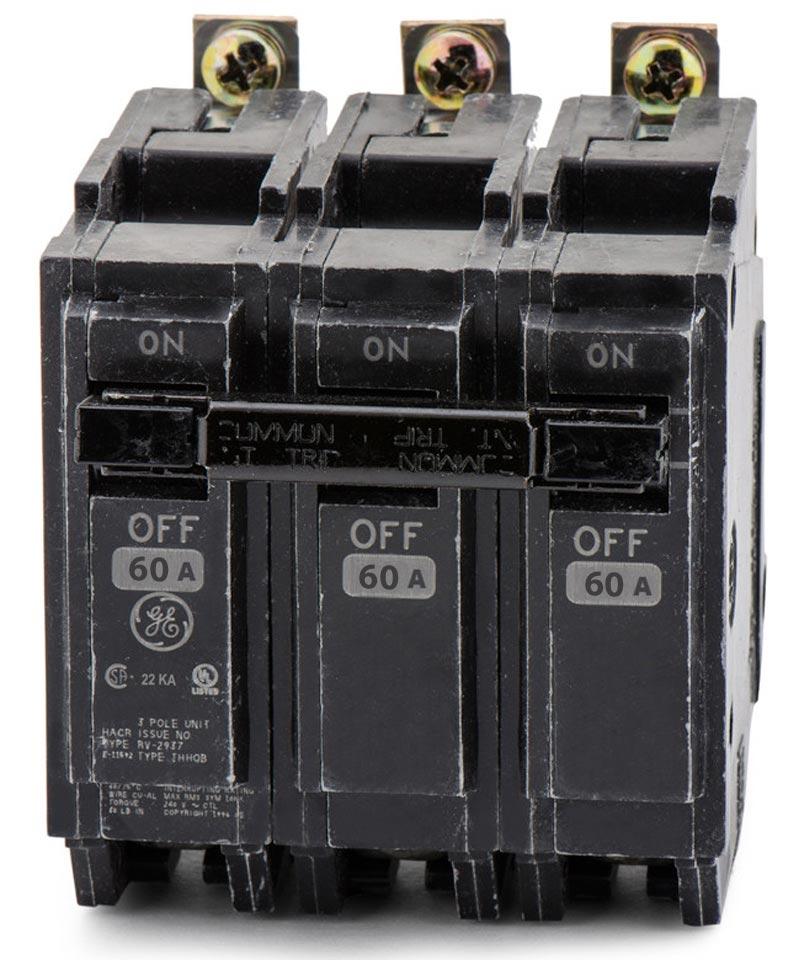

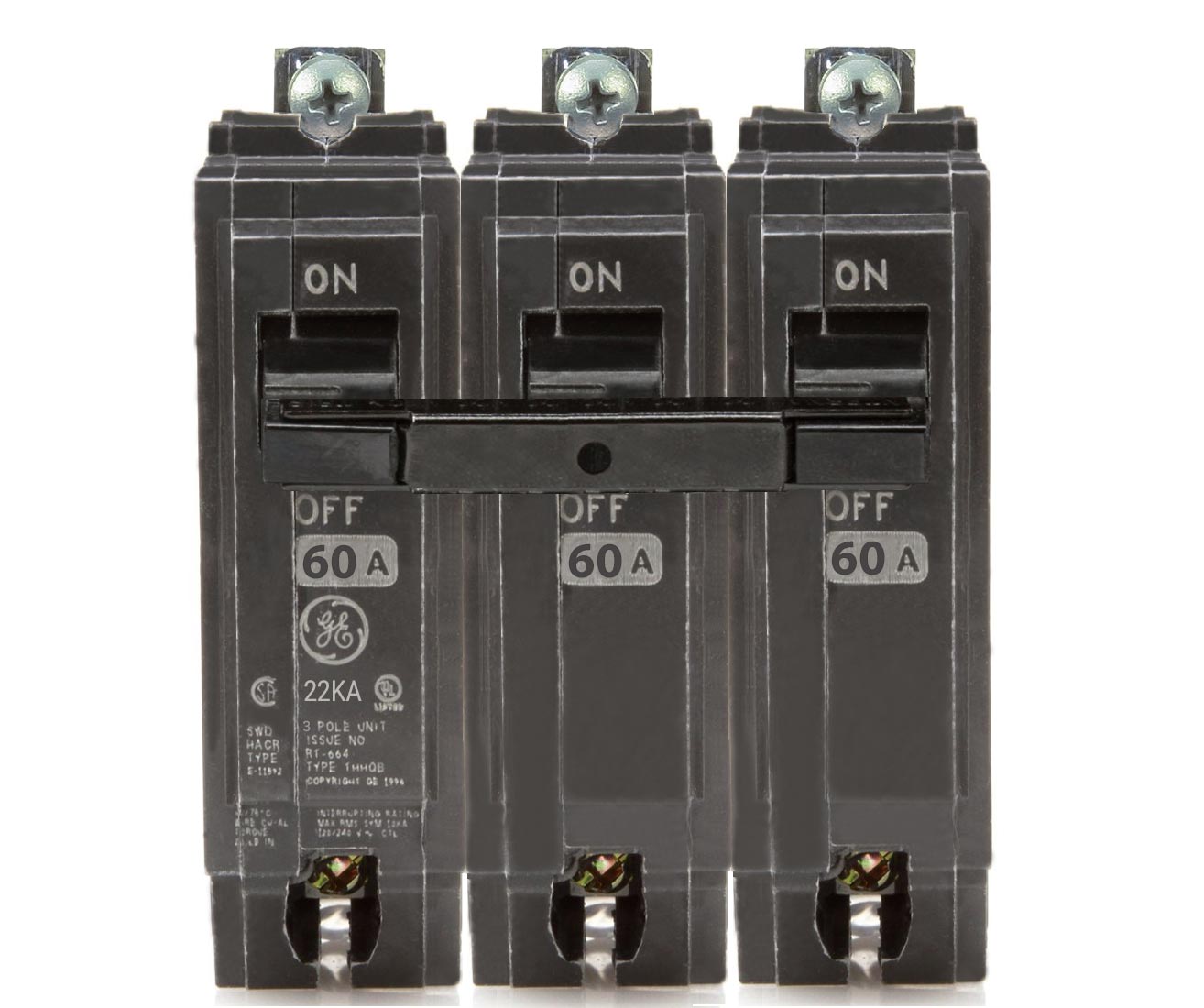

GE THHQB32060 Circuit Breaker – 60A – 3-Pole – 240V – 22kA – Bolt-On – Q-Line QB Series

The GE THHQB32060 is a 60A, 3-pole bolt-on molded case circuit breaker designed for compatible electrical distribution applications. It has a maximum voltage rating of 240V at 60 Hz and provides a 22kA interrupting rating.

The breaker features thermal-magnetic protection with a common trip configuration and uses a bolt-on mounting design for compatible GE electrical equipment.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Catalog No.: THHQB32060
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 240V
• Frequency: 60 Hz
• Interrupting Rating: 22kA
• Protection Type: Thermal-Magnetic
• Trip Configuration: Common Trip
• Mounting Type: Bolt-On
• Application: Electrical Distribution and Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THHQB32060
• Catalog Number: THHQB32060
• Brand: GE
• Manufacturer: General Electric
• Product Family: Q-Line
• Series: QB
• Breaker Type: Bolt-On Molded Case Circuit Breaker
• Product Type: Circuit Breaker
• Model: THHQB32060
• Configuration: 60A, 3-Pole
• UPC:783164012446

Compatibility:

Designed for use with compatible GE Q-Line QB Series electrical distribution equipment that accepts 3-pole, 60A bolt-on circuit breakers. The THHQB32060 provides thermal-magnetic overcurrent protection with a common trip configuration and a 22kA interrupting rating.

Always verify the specific load center or panelboard model, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and installation requirements before installation.

Certifications:

• Q-Line QB Series
• 60A Rated
• 3-Pole / 3-Phase
• 240V Maximum Voltage Rating
• 22kA Interrupting Rating
• Thermal-Magnetic Protection
• Common Trip
• Bolt-On Mounting
