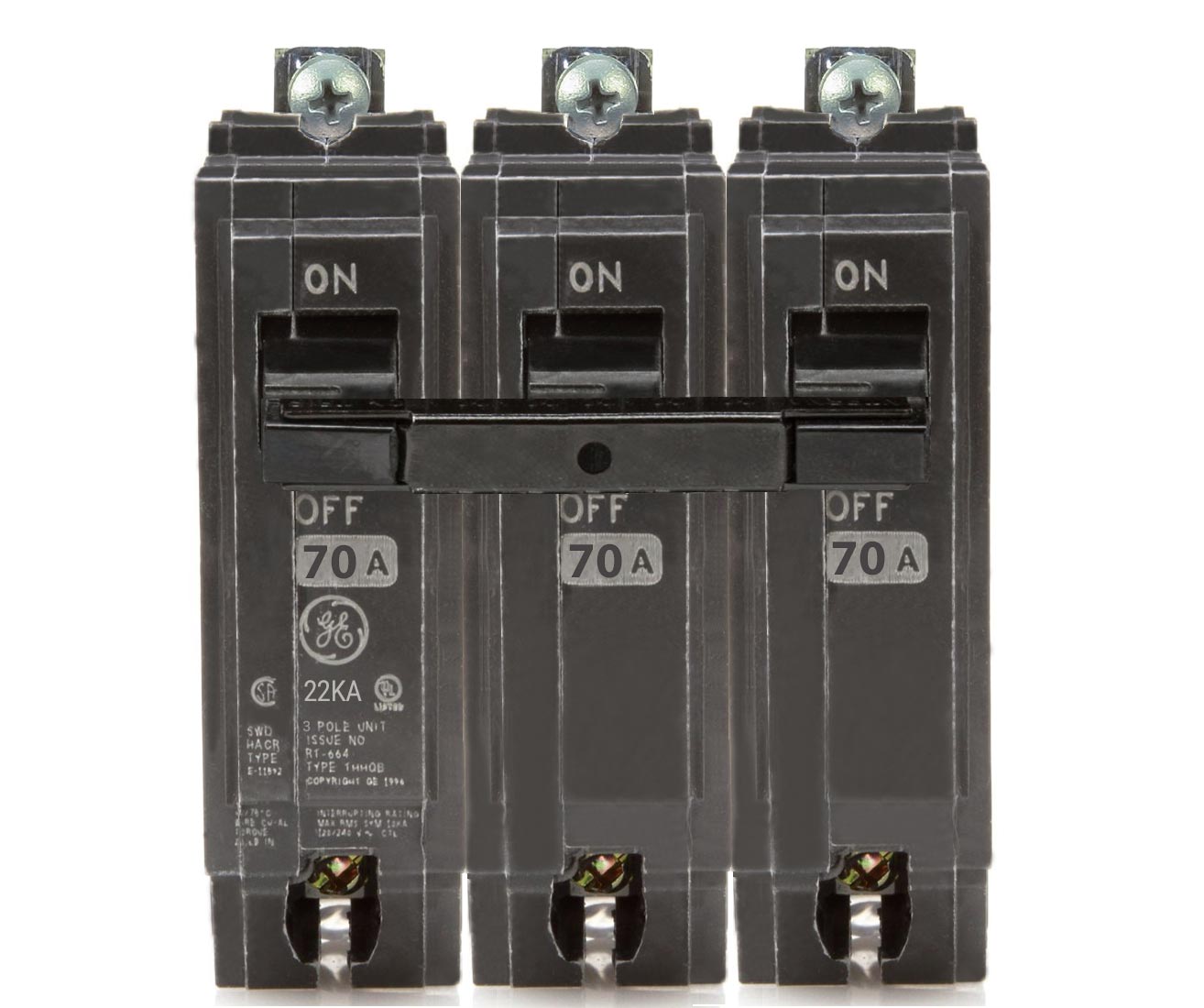

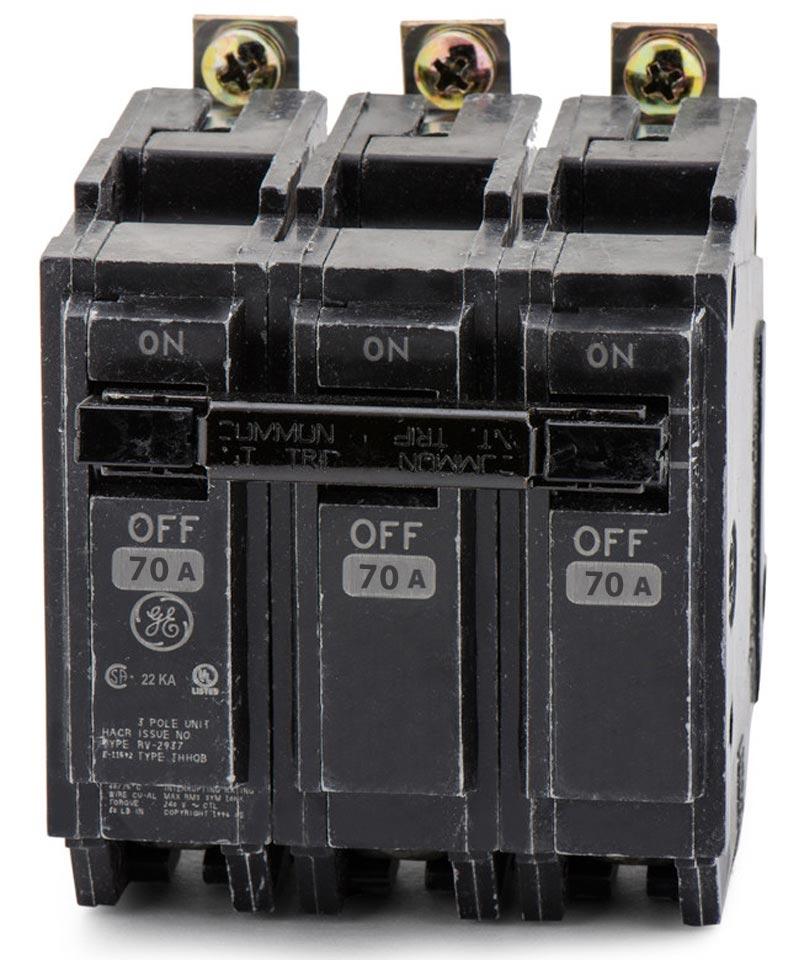

GE THHQB32070 Circuit Breaker – 70A – 3-Pole – 240V – 22kA @ 208V – Bolt-On – Q-Line THHQB Series

The GE THHQB32070 is a 70A, 3-pole, bolt-on molded case circuit breaker from the General Electric Q-Line THHQB Series. It has a maximum voltage rating of 240V and features thermal-magnetic protection with common trip.

The breaker provides a 22kA interrupting rating at 208V and includes Long-Time and Instantaneous (LI) trip functions with a load-side lug terminal. It is designed for compatible GE Q-Line electrical distribution equipment.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Q-Line
• Series: THHQB
• Type: THHQB
• Catalog No.: THHQB32070
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 240V
• Interrupting Rating: 22kA @ 208V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Common Trip
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Terminal Configuration: Load-Side Lug Terminal
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THHQB32070
• Catalog Number: THHQB32070
• Product Family: GE Q-Line Circuit Breakers
• Series: THHQB
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: THHQB32070
• Breaker Configuration: 3-Pole, 70A
• upc:
  783164118643

Compatibility:

Designed for use with compatible GE Q-Line THHQB Series electrical distribution equipment that accepts bolt-on circuit breakers. The THHQB32070 is a 3-pole, 70A thermal-magnetic MCCB with a 240V maximum voltage rating, 22kA interrupting rating at 208V, common-trip operation, and LI trip functions.

Always verify the specific panelboard or load center model, approved breaker type, system voltage, available fault current, pole configuration, mounting arrangement, terminal requirements, and installation requirements before installation.

Certifications:

• 22kA Interrupting Rating @ 208V
• Thermal-Magnetic Protection
• Common Trip
• Long-Time and Instantaneous (LI) Trip
• Bolt-On Mounting
• 70A Rated
• 3-Pole / 3-Phase
• 240V Maximum Voltage Rating
• Genuine General Electric Product
