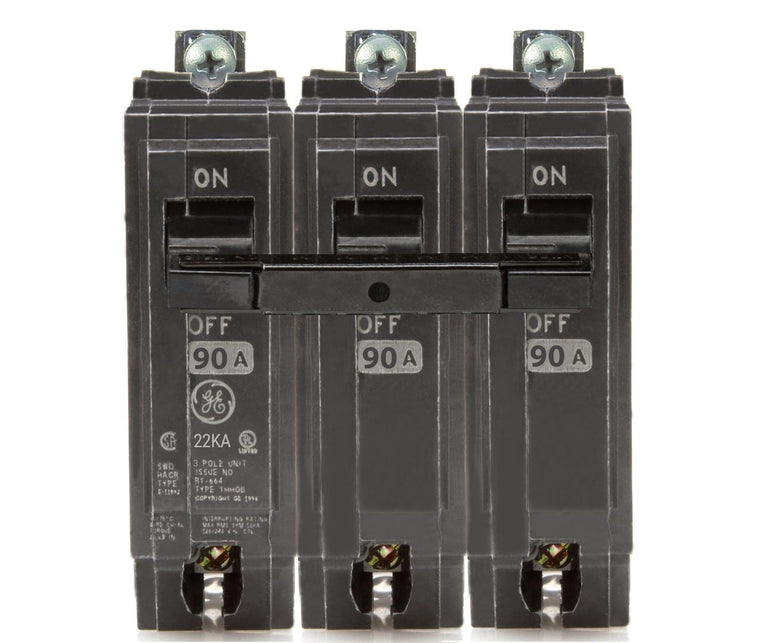

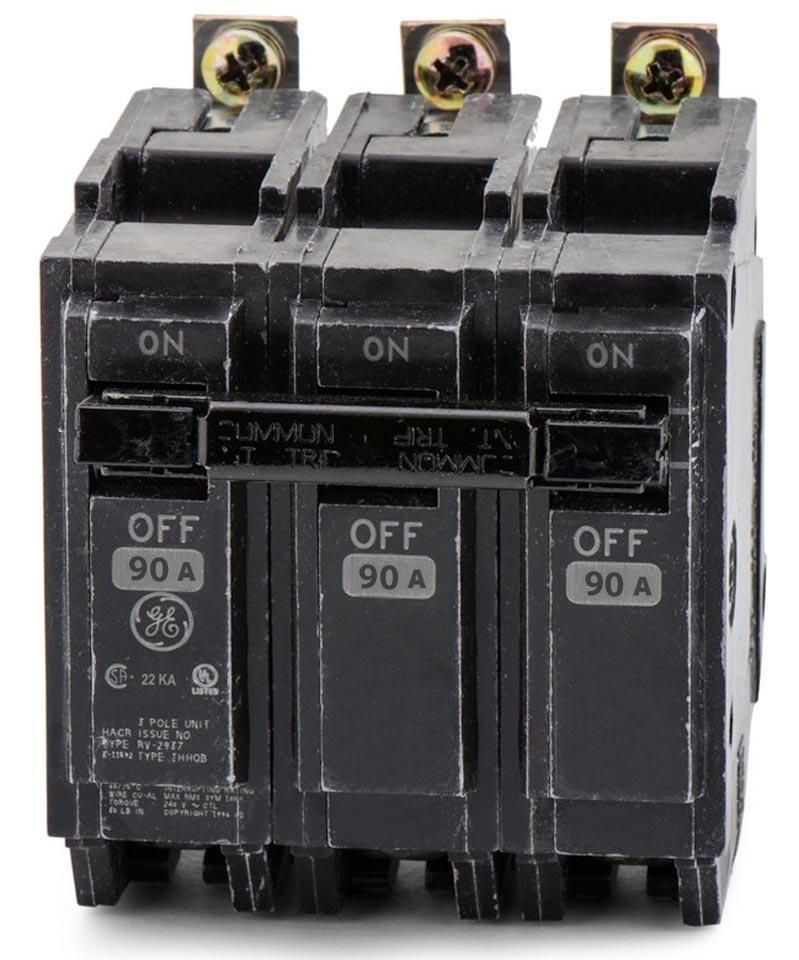

GE THHQB32090 Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 240V – 22kA @ 208V – Bolt-On – Q-Line QB Series

The GE THHQB32090 is a 90A, 3-pole, 3-phase bolt-on molded case circuit breaker from the GE THHQB Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and is designed for compatible electrical distribution applications.

The breaker has a maximum voltage rating of 240V and a 22kA standard interrupting rating at 208V. It uses a bolt-on mounting configuration and includes load-side lug terminals.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Q-Line
• Series: Q-Line QB
• Type: THHQB
• Catalog No.: THHQB32090
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 240V
• Interrupting Rating: 22kA @ 208V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THHQB32090
• Catalog Number: THHQB32090
• Model: THHQB32090
• Product Family: GE Q-Line Circuit Breakers
• Series: Q-Line QB
• Type: THHQB
• Brand: GE
• Manufacturer: General Electric
• Product Type: Bolt-On Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 90A
• UPC:783164118667

Compatibility:

Designed for use with compatible GE Q-Line QB electrical distribution equipment that accepts bolt-on circuit breakers. The THHQB32090 provides 90A, 3-pole thermal-magnetic protection for compatible systems with a maximum voltage rating of 240V.

The breaker uses a bolt-on connection and includes load-side lug terminals.
