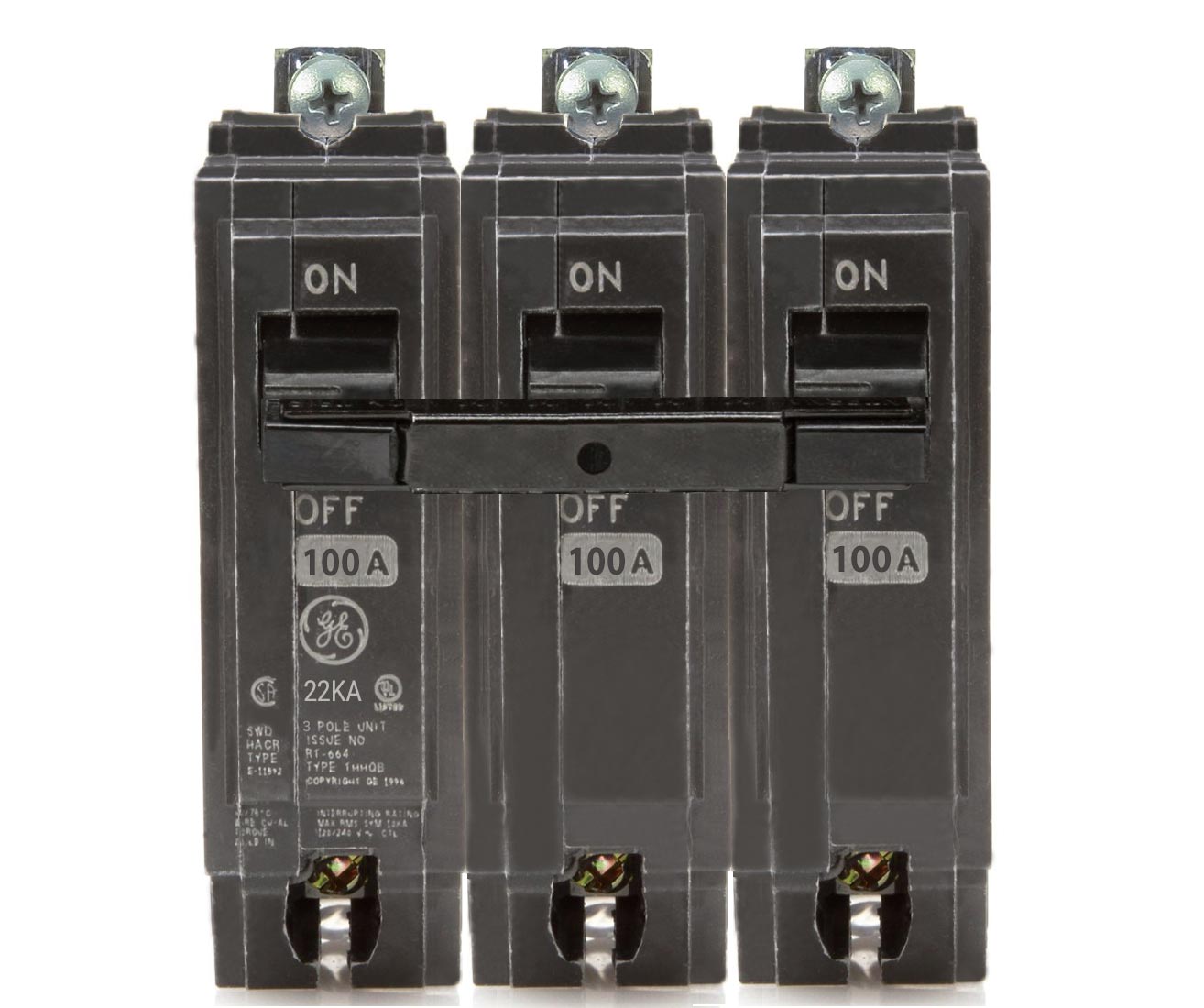

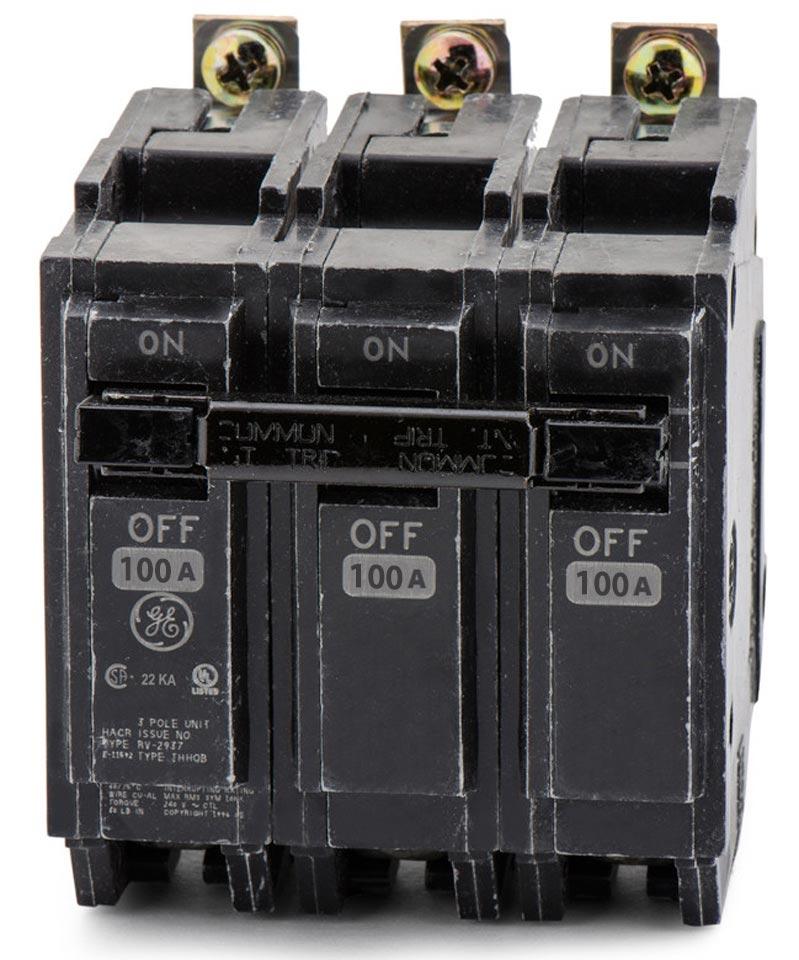

GE THHQB32100 Circuit Breaker – 100A – 3-Pole – Bolt-On – Q-Line QB Series

The GE THHQB32100 is a 100A bolt-on circuit breaker from the GE Q-Line QB Series. Q Line circuit breakers are compact thermal-magnetic devices designed for residential and commercial electrical applications. The QB version is designed for bolt-on connection to bus connections in compatible load centers and lighting panels.

Q Line breakers feature Quick-Make / Quick-Break mechanisms, common trip bars, and visible trip indication. The series is available in 1-, 2-, and 3-pole configurations, with applicable models supporting auxiliary contact, shunt trip, and HID options.

Specifications:

• Brand: GE
• Manufacturer: General Electric
• Product Type: Circuit Breaker
• Series: Q-Line
• Type: QB
• Current Rating: 100A
• Number of Poles: 3-Pole
• Protection Type: Thermal-Magnetic
• Mounting / Connection: Bolt-On
• Breaker Width: 1 inch per pole
• Mechanism: Quick-Make / Quick-Break
• Trip Configuration: Common Trip
• Trip Indication: Visible Trip Indication
• Application: Residential and Commercial Electrical Applications
• Accessories: Auxiliary Contact and Shunt Trip Available for Applicable Models
• HID Application: Available for Applicable Models

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THHQB32100
• Catalog Number: THHQB32100
• Product Family: GE Q-Line Circuit Breakers
• Series: Q-Line
• Type: QB
• Brand: GE
• Manufacturer: General Electric
• Product Type: Bolt-On Circuit Breaker
• Model: THHQB32100
• Breaker Configuration: 3-Pole, 100A

Compatibility:

Designed for use with compatible GE Q-Line load centers and lighting panels that accept QB Series bolt-on circuit breakers. The THHQB32100 is intended for bus-mounted applications using the QB bolt-on configuration.

Always verify the specific load center or panel model, approved breaker type, current rating, voltage rating, pole configuration, interrupting rating, and available accessories before installation.

Certifications:

• Q-Line QB Series
• 100A Rating
• Thermal-Magnetic Protection
• Bolt-On Connection
• Quick-Make / Quick-Break Mechanism
• Common Trip
• Visible Trip Indication
