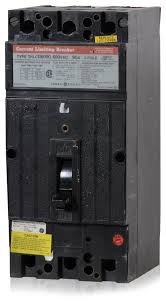

GE THLC136090 90 Amp Molded Case Circuit Breaker – 3 Pole – 600V AC – 200 kA @ 480V – THLC Series
Select product condition:
Couldn't load pickup availability
Ask an expert
The General Electric THLC136090 is a THLC Series thermal-magnetic molded case circuit breaker designed for high-capacity circuit protection in commercial and industrial electrical distribution systems. This 3-pole, 90A breaker is rated for 600V AC and provides an exceptionally high interrupting capacity of 200kA at 480V. It features bolt-on mounting and LI trip functions (Long-Time and Instantaneous) for overload and instantaneous short-circuit protection.
Specifications
- Manufacturer: General Electric (GE)
- Product Type: Molded Case Circuit Breaker (MCCB)
- Series: THLC
- Type: THLC
- Catalog Number / MPN: THLC136090
- Current Rating: 90A
- Voltage Rating: 600V AC
- Poles: 3 Pole
- Phase: 3 Phase
- Interrupting Capacity (AIC): 200 kA @ 480V AC
- Mounting / Connection: Bolt-On
- Trip Functions: LI – Long-Time and Instantaneous
- Protection Type: Thermal-Magnetic
- Weight: 10 lb
Part Numbers & Identification
- Brand: General Electric (GE)
- Catalog Number: THLC136090
- Product Family: THLC Series
- Product Type: Thermal-Magnetic Molded Case Circuit Breaker
- Current Rating: 90A
-
Configuration: 3 Pole
Compatibility
Suitable for GE THLC-compatible electrical distribution equipment requiring a 3-pole, 90A circuit breaker with a 600V AC rating and bolt-on connection. Its thermal-magnetic LI protection provides long-time overload and instantaneous short-circuit protection for applicable industrial and commercial installations.
- Type Circuit Breakers
- Vendor GE
- Brand GE
- Electrical Rating Feed-Thru - 90 Amp - 3 Pole - 600 Volt
