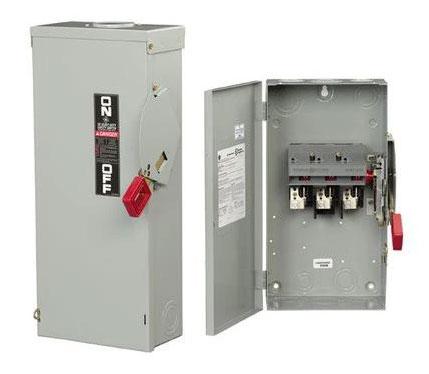

GE THN3365 Safety Switch – 400A – 3-Pole / 3-Phase / 3-Wire – 600V – 200kA @ 600V – Non-Fusible – Spec-Setter Series

The GE THN3365 is a 400A, 3-pole, 3-phase, 3-wire heavy-duty safety switch from the General Electric Spec-Setter Series. It is a non-fusible disconnect safety switch designed for compatible electrical distribution and disconnect applications.

The THN3365 is rated for 600V and provides a 200kA interrupting rating at 600V. It features a NEMA 1 enclosure, single-style configuration, and is suitable for indoor use. The switch is UL Listed.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Disconnect Safety Switch
• Product Family: Spec-Setter
• Series: Spec-Setter
• Type: THN
• Catalog No.: THN3365
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 3-Wire
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 600V
• Switch Type: Non-Fusible
• Configuration: Single Style
• Enclosure Rating: NEMA 1
• Application Environment: Indoor Use
• Application: Electrical Disconnect and Distribution
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THN3365
• Catalog Number: THN3365
• Model: THN3365
• Product Family: GE Spec-Setter Safety Switches
• Series: Spec-Setter
• Type: THN
• Brand: General Electric
• Manufacturer: GE
• Product Type: Heavy-Duty Disconnect Safety Switch
• Configuration: 3-Pole, 400A, 3-Phase, 3-Wire
• Switch Configuration: Non-Fusible, Single Style
• UPC:783164011388

Compatibility:

Designed for use with compatible GE Spec-Setter THN Series electrical distribution and disconnect applications. The THN3365 provides 400A, 3-pole, 3-phase disconnecting capability for compatible 600V systems.

The switch is a non-fusible, single-style device with a NEMA 1 enclosure intended for indoor use. Always verify the specific equipment requirements, system voltage, pole and wire configuration, enclosure requirements, available fault current, mounting arrangement, and installation specifications before installation.

Certifications:

• UL Listed
• Spec-Setter Series
• 400A Rated
• 3-Pole / 3-Phase
• 3-Wire
• 600V Rated
• 200kA @ 600V Interrupting Rating
• Non-Fusible
• NEMA 1 Enclosure
• Single Style
• Suitable for Indoor Use
