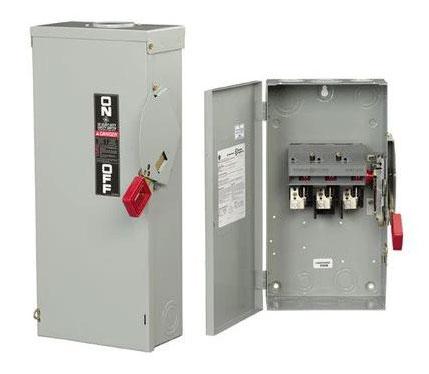

GE THN3365R Disconnect and Safety Switch – 400A – 3-Pole / 3-Phase – 600V – 200kA @ 600V – Non-Fusible – NEMA 3R – Spec-Setter THN Series

The GE THN3365R is a 400A, 3-pole, 3-phase heavy-duty non-fusible disconnect safety switch from the GE Spec-Setter Type THN Series. It is designed for compatible electrical disconnect and distribution applications.

The THN3365R is rated for 600V and provides a 200kA interrupting rating at 600V. It features a NEMA 3R enclosure rating, a 3-wire configuration, and a single-style disconnect configuration. The switch is suitable for indoor use and is UL Listed.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Disconnect and Safety Switch
• Product Family: Spec-Setter
• Series: THN
• Type: THN
• Catalog No.: THN3365R
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Wire Configuration: 3-Wire
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 600V
• Switch Type: Non-Fusible
• Enclosure Rating: NEMA 3R
• Configuration: Single Style
• Application: Disconnect and Safety Switching
• Use: Indoor Use
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THN3365R
• Catalog Number: THN3365R
• Model: THN3365R
• Product Family: GE Spec-Setter Safety Switches
• Series: THN
• Type: THN
• Brand: GE
• Manufacturer: General Electric
• Product Type: Disconnect and Safety Switch
• Configuration: 3-Pole, 400A
• Switch Type: Non-Fusible
• UPC:783164011371

Compatibility:

Designed for use with compatible GE Spec-Setter THN Series disconnect and safety switch applications requiring a 400A, 3-pole, 600V non-fusible disconnect.

The THN3365R uses a NEMA 3R enclosure, a 3-wire configuration, and a single-style arrangement for indoor disconnect applications. Always verify the specific electrical equipment, system voltage, available fault current, enclosure requirements, conductor configuration, mounting arrangement, and installation specifications before installation.

Certifications:

• UL Listed
• Spec-Setter THN Series
• 400A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 200kA @ 600V Interrupting Rating
• Non-Fusible Type
• NEMA 3R Enclosure
• 3-Wire Configuration
• Single-Style Configuration
• Suitable for Indoor Use
