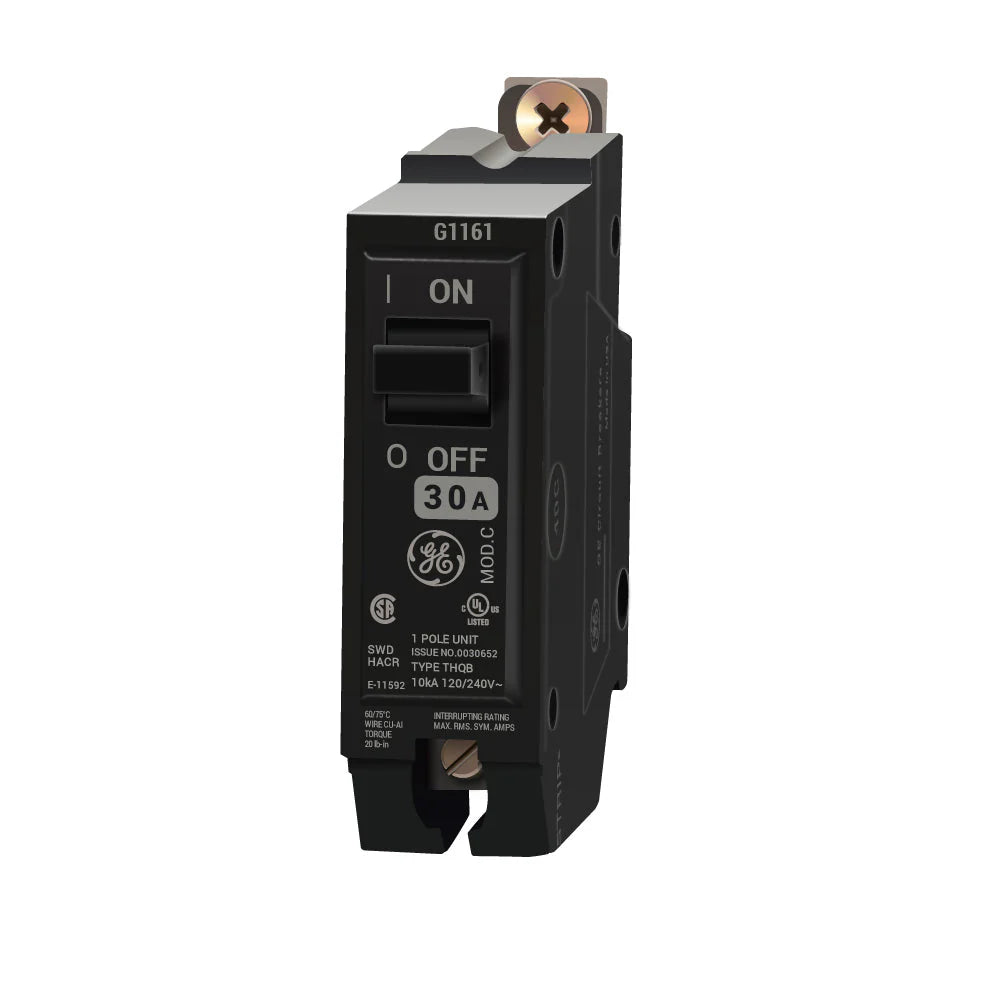

THQB1130 - General Electric Bolt-On 120V 30A 1 pole Circuit Breaker
Couldn't load pickup availability
Ask an expert
Description
THQB1130
The General Electric THQB1130 is a Molded Case Circuit Breaker. This type THQB circuit breaker is a member of The Q-Line family. The THQB1130 is a 1 pole, 120 Volt, 30 amp rated circuit breaker, with an AIC rating of 10kA@120V. The THQB1130 is manufactured by General Electric. The THQB1130 uses a Bolt-On connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: THQB1130
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164012194
- GTIN : 00783164012194
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
- Weight : 0.25
- Certification : Ul Listed
- Wire Size : 8 To 3 Awg (Copper/Aluminum)
- Vendor My Circuit Breakers
