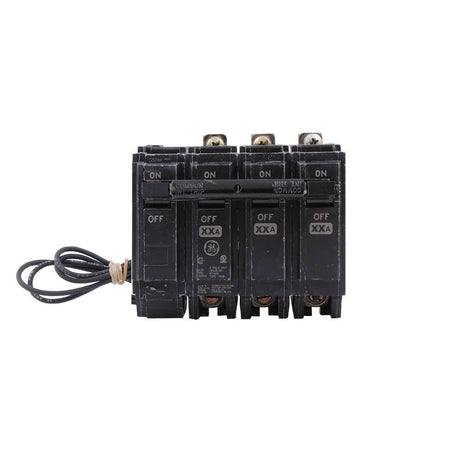

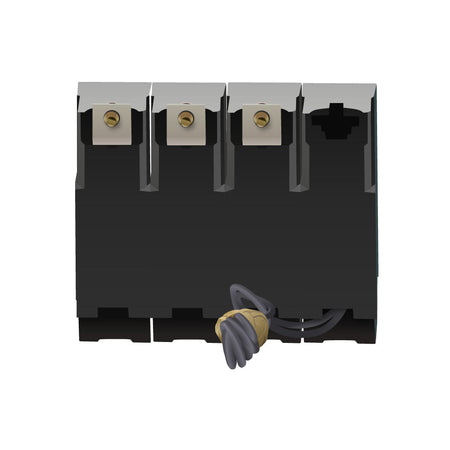

GE THQB32015ST1 15 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 10 kA@208 V – Bolt-On – THQB Series

The GE THQB32015ST1 is a 15 Amp, 3-pole molded case circuit breaker from the General Electric THQB Series. It is rated for 240 V with a 10 kA interrupting rating at 208 V and features thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions. The breaker includes a factory-installed 120 V shunt trip and load-side lug terminals and is designed for bolt-on mounting.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: THQB
• Type: THQB
• Catalog Number / MPN: THQB32015ST1
• Primary Rating: 15 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 10 kA @ 208 V
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Shunt Trip: 120 V
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: THQB32015ST1
• Series: THQB
• Type: THQB
• Current Rating: 15 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Shunt Trip: 120 V
• Terminals: Load-Side Lug Terminals
• UPC: Not provided

Compatibility

The GE THQB32015ST1 is designed for compatible GE THQB Series electrical distribution applications. Verify the specific panelboard, system voltage, mounting configuration, shunt trip requirements, terminal requirements, and breaker compatibility before installation.

Certifications

• UL Listed
